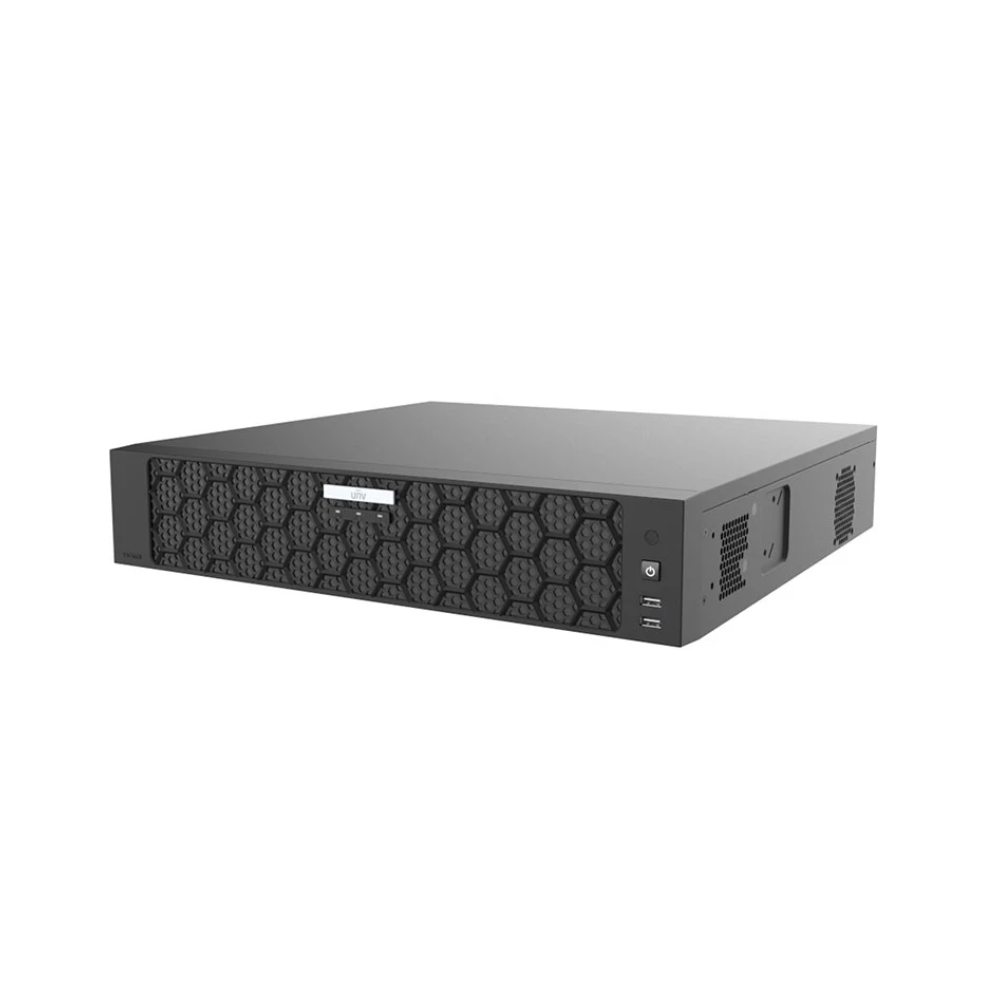

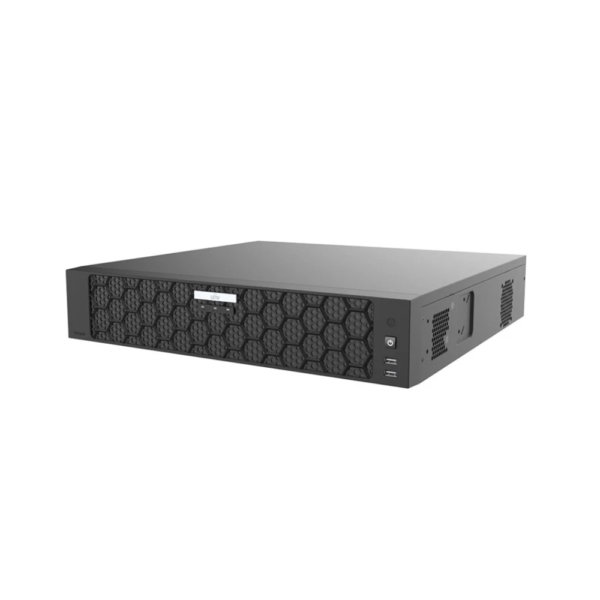

Uniview NVR508-64B
Uniview NVR508-64B Prime Series Rackmount H265 4K 2U 64-Channel Non-PoE Network Video Recorder (NVR) with 2 * GbE LAN Ports
Uniview NVR508-64B Prime Series Rackmount H265 4K 2U 64-Channel Non-PoE Network Video Recorder (NVR) with 2 * GbE LAN Ports
Key Features :-
- Supports Ultra 265 / H.265 / H.264 video formats
- 64‑channel IPC support
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- VGA and HDMI independent output (NVR508‑64B simultaneous output by default , independent output configurable)
- Up to 16 Megapixels resolution recording
- Support RAID1 & RAID5
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI2
- 8 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 1 x RS485 port
- 3 x USB ports (two front, one rear)
- 2 x LAN ports (10/100/1000Mbps)
- 16 x Alarm input ports
- 4 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR508‑16B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 960P@30 NVR508‑32B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 32 x D1 NVR508‑64B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 320Mbps |
| OutgoingBandwidth | 160Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; 802.1x; IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR508‑16B:16‑ch NVR508‑32B:32‑ch NVR508‑64B:64‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGAOutput | VGA:1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR508‑16B:1/4/6/8/9/16 NVR508‑32B:1/4/6/8/9/16/25/36 NVR508‑64B:Simultaneous Output: VGA:1/4/6/8/9/16/25/36/64,HDMI:1/4/6/8/9/16/25/36/64, Independent Output: VGA:1/4/6/8/9/16/25/32,HDMI: 1/4/6/8/9/16/25/32 |
| CorridorModeScreen | NVR508‑16B:3/4/5/7/9/10/12/16 NVR508‑32B/NVR508‑64B:3/4/5/7/9/10/12/16/32 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| SynchronousPlaybackinLocal | 16‑ch |
| Smart | Description |
| VCADetectionbyIPC | Face Detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| VCASearch | Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| SmartbyIPC | All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | Description |
| GeneralAlarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| AlertAlarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| DiskGroup | Support |
| RedundantStorage | Support |
| DiskArrayType | RAID 1, 5 |
| ExternalInterface | Description |
| NetworkInterface | 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0; Rear panel: 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| AlarmIn | 16‑ch |
| AlarmOut | 4‑ch |
| PowerSupply | AC 100 ～ 240 V |
| PowerSwitch | Support |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 32W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 5.5Kg (12.13lb) |
| Dimensions | 442mm × 426mm × 89mm (17.4″×16.8″×3.5″) |
| Certification | Description |
| Certification | CE;FCC;UL;RoHS;WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
