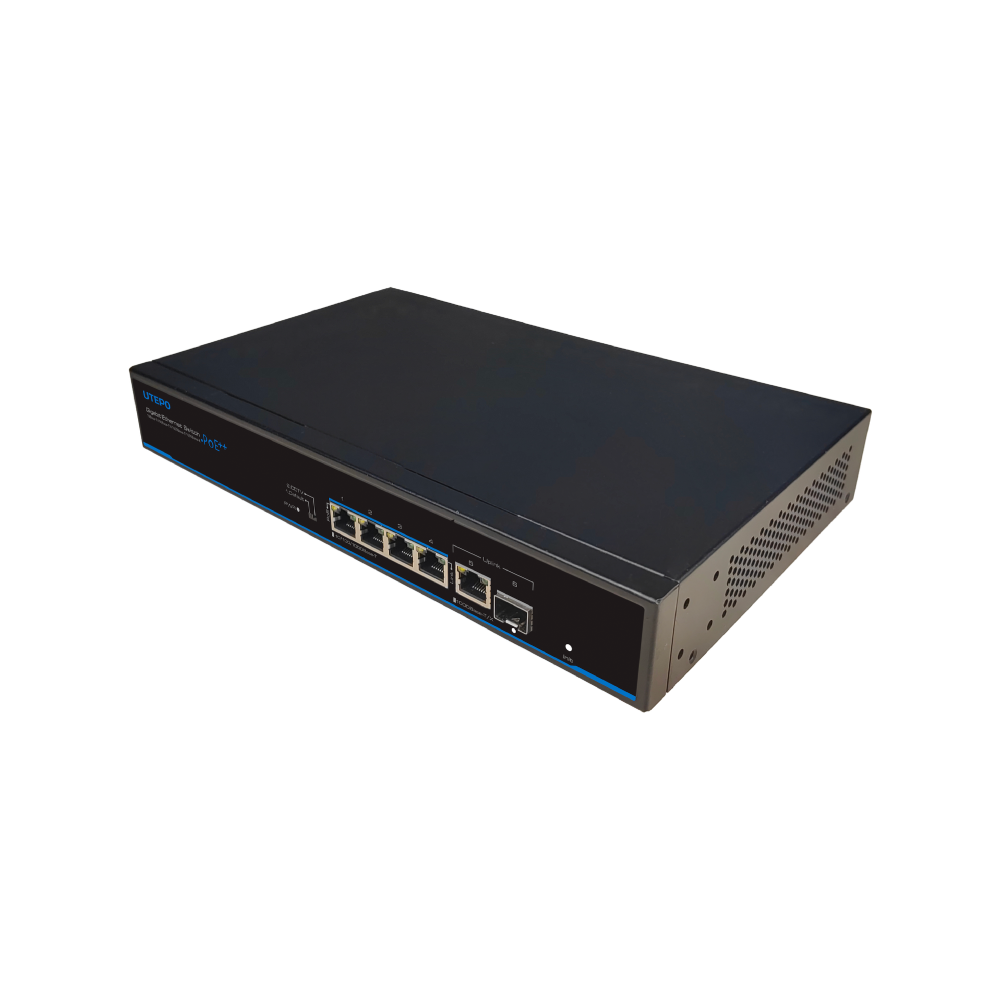

Utepo UTP3306TS-PSD
Utepo UTP3306TS-PSD Unamanged Full-Gigabit Network PoE Switch with 4* GbE 802.3bt (90w) PoE++ Ports + 1* GbE Uplink Port + 1* SFP Slot – 360w PoE Budget
SKU: UTP3306TS-PSD
Categories: Clearance, Networking Products, PoE Switches, Special Offers, Unmanaged PoE Switches
Tags: 4x PoE, 802.3bt, Gigabit, Network, PoE, PoE Switch, SFP Port, Unmanaged Switch, Utepo
Utepo UTP3306TS-PSD Unamanged Full-Gigabit Network PoE Switch with 4* GbE 802.3bt (90w) PoE++ Ports + 1* GbE Uplink Port + 1* SFP Slot – 360w PoE Budget
Features :-
- 4 * 10/100/1000Base-T RJ-45 (Auto MDI/MDIX) PoE++ ports
- 1 * 10/100/1000Base-T RJ-45 (Auto MDI/MDIX) port
- 1 * 1000Base-X SFP port
- IEEE 802.3af/at/bt
- 90W max for each port, 360W max for whole switch
- The switch supports the Q-PoE (Quick PoE) technology, which enables PoE power supply immediately upon switch startup without waiting for switch system software control
- One-key Smart Mode
- CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps
- 230VAC powered
| Items | UTP3306TS-PSD |
| Hardware Specifications | |
| Downlink Port | 4*10/100/1000 Base-T PoE++ RJ-45(Auto-MDI/MDI-X) |
| Uplink Port | 1*10/100/1000 Base-T RJ-45 1*1000 Base-X SFP |
| Led Indicators | 1*PWR, power supply indicators 1*Link/Act, SFP port state indicators |
| Dimensions (W*D*H) | 294mm*180mm*44mm |
| Input Voltage | 100~240V AC, 50~60Hz |
| Power Consumption | ≤370W (Full load including PoE) |
| Material | Metal shell |
| Installation | Rack/Desktop/Wall mounted |
| Switch Property | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Forwarding Modes | Store and Forward |
| MAC Table | 2k, support auto learning |
| Switching Capacity | 12Gbps/non-blocking |
| Packet Forwarding Rate | 8.928Mpps |
| Port Buffer | 1MB |
| Jumbo Frame | 9716 Bytes |
| Power Supply | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | End-span |
| PoE Pin Assignment | 3/6/4/5(+), 1/2/7/8(-) |
| PoE Budget | 90W max for each port, 360W max for whole switch |
| Reliability | |
| Operating | -10℃~50℃, 5%~95% (Non-condensation) |
| Storage | -40℃~70℃, 5%~95% (Non-condensation) |
| Certifications | |
| Certifications | CE, FCC |
