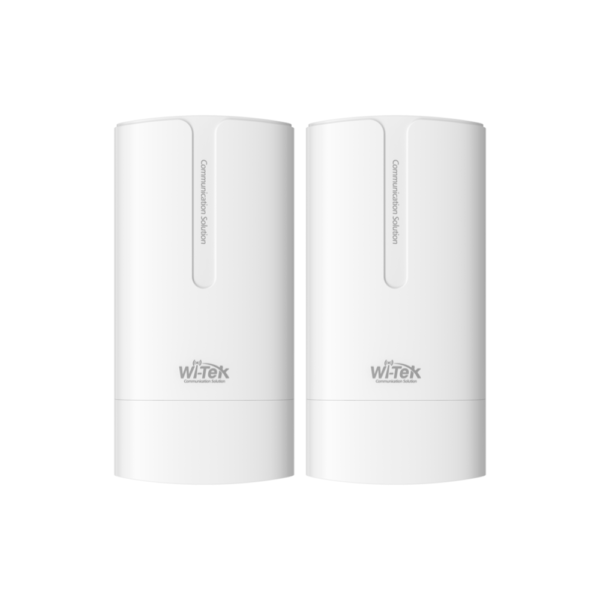

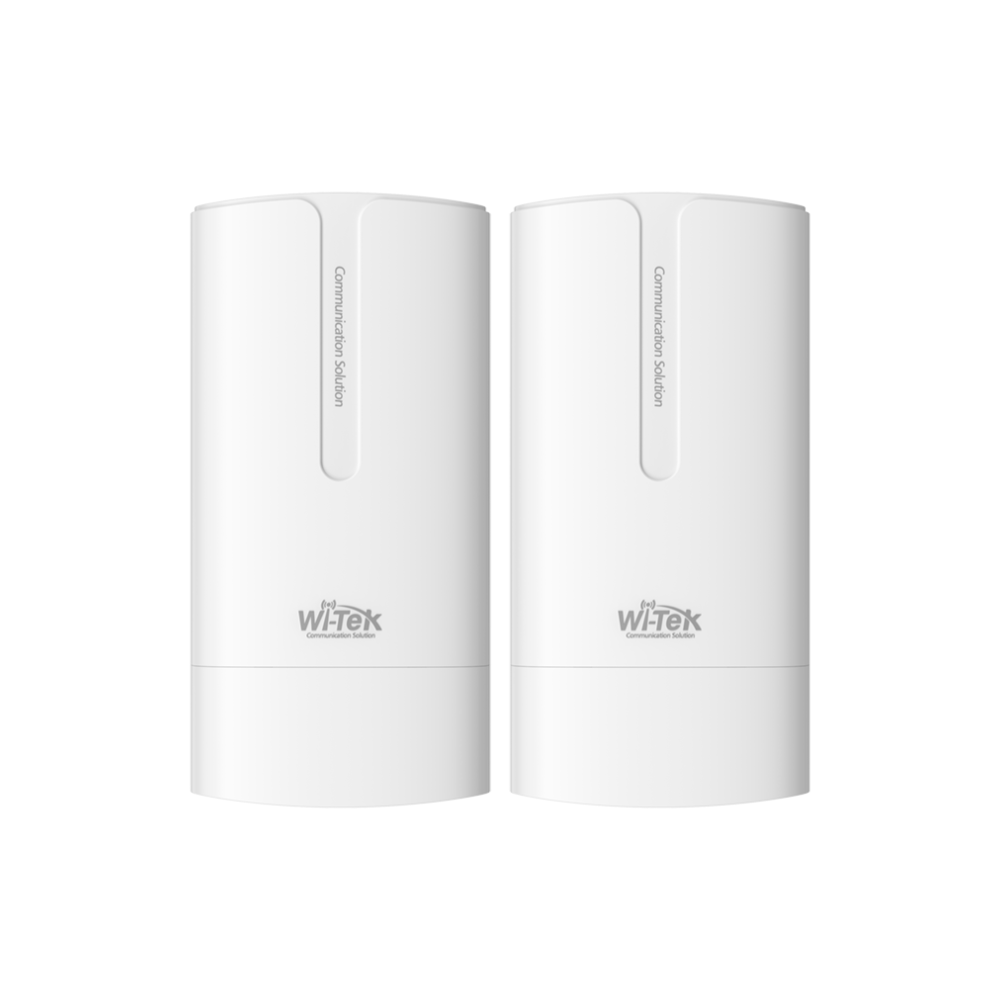

Wi-Tek WI-CPE110-KIT(V2)

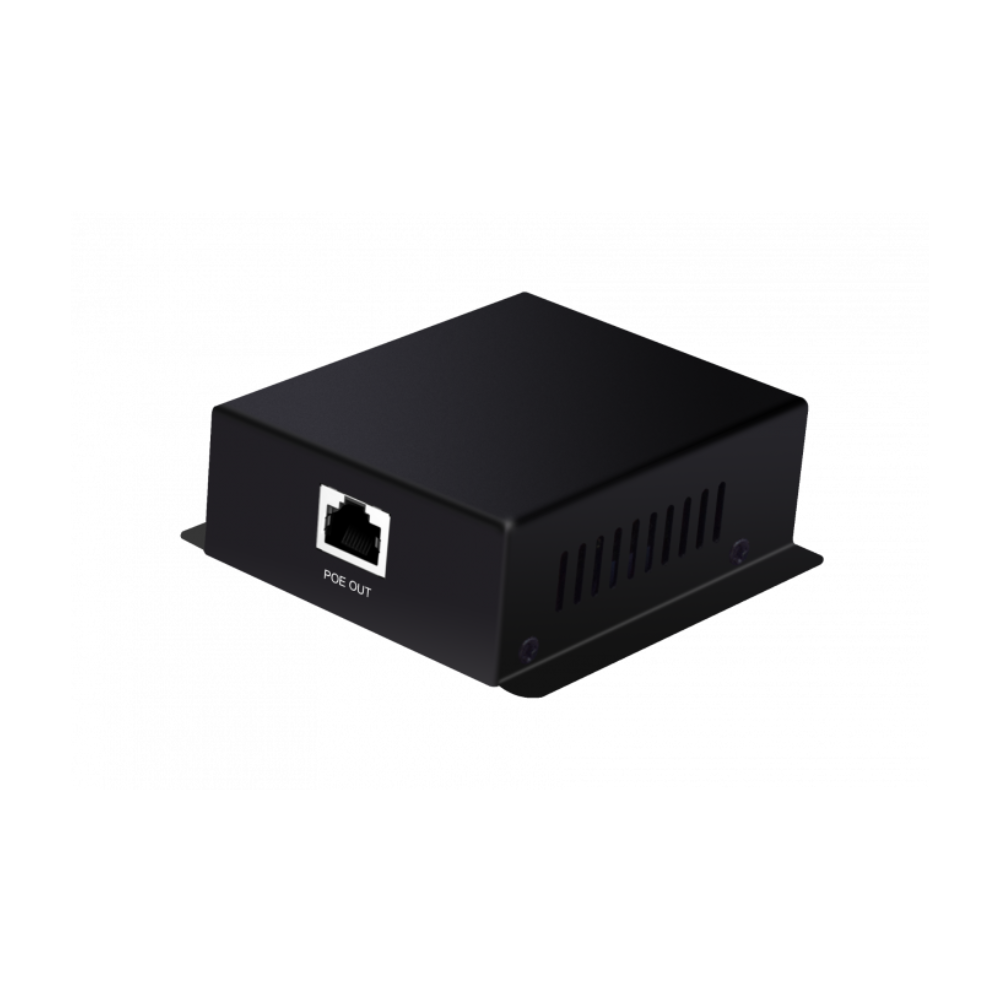

Wi-Tek WI-CPE110-KIT(V2) 2.4GHz 300Mbps Cloud-Manageable Weatherproof CPE Wireless Access Points (WAPs) Supplied As a Kit – Preconfigured – Plug n’ Play – Used for P2P (Point-To-Point) and P2MP (Point-To-Multi-Point) Wireless Connection – Up to 1km Distance – 2 * 24VDC PoE Injectors Included
SKU: WI-CPE110-KIT(V2)
Categories: Networking Products, Wireless Access Points, Wireless Bridge
Tags: 2.4GHz Wireless, IP65 Rated, Kit, Outdoor, Point to Multipoint, Point to point, Weatherproof, Wi-Tek, Wireless, Wireless Access Point, Wireless Bridge
Wi-Tek WI-CPE110-KIT(V2) 2.4GHz 300Mbps Cloud-Manageable Weatherproof CPE Wireless Access Points (WAPs) Supplied As a Kit – Preconfigured – Plug n’ Play – Used for P2P (Point-To-Point) and P2MP (Point-To-Multi-Point) Wireless Connection – Up to 1km Distance – 2 * 24VDC PoE Injectors Included
Key Features :-
- 2.4GHz 300Mbps 1km Wireless Transmitter for CCTV

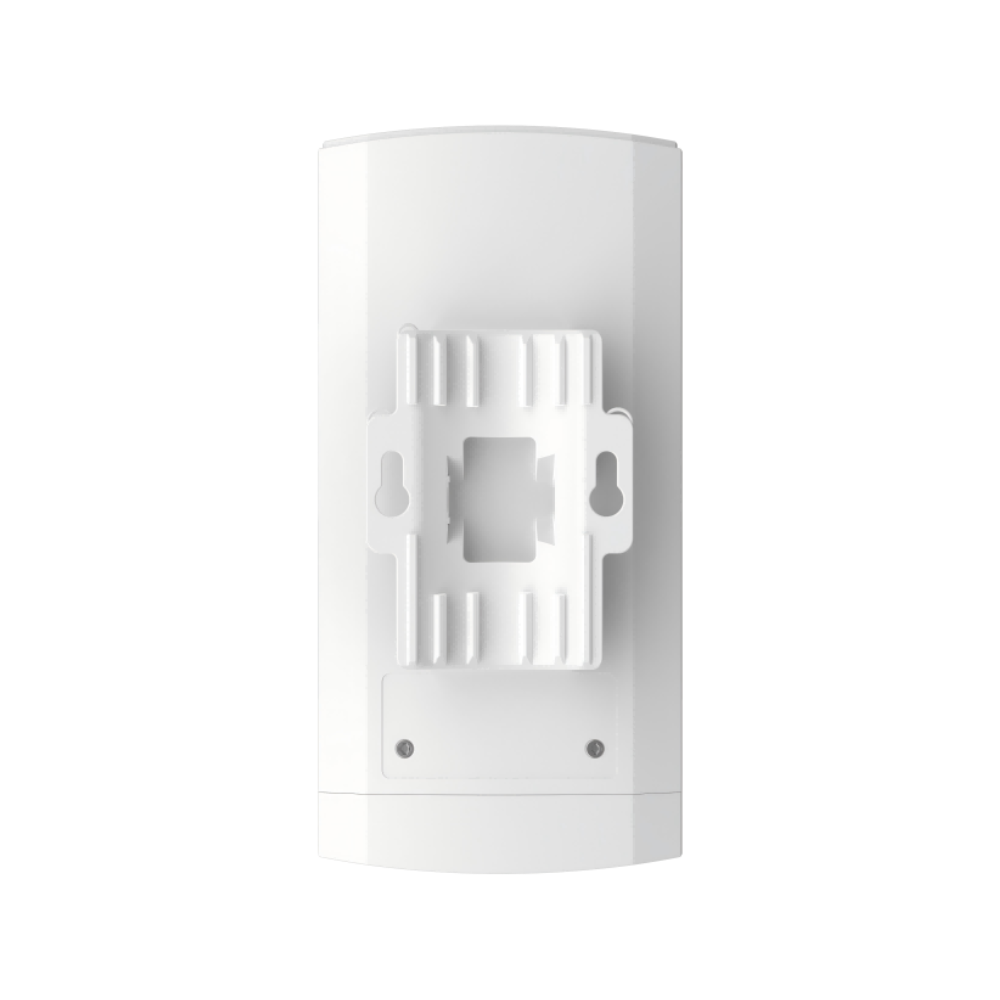

- Pole-mount design
- Long-range wireless transmission up to 1km
- IEEE 802.11b/g/n Wireless speed up to 300Mbps

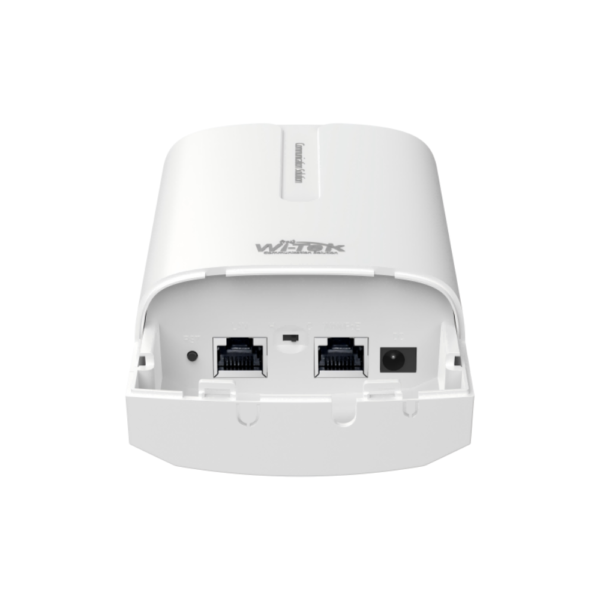

- 2 x 100Mbps Ethernet ports
- Supports open frequency from 2.401GHz ~ 2.483GHz
- Adjustable transmission power from 0 to 21dBm
- Built-in 8dBi dual-polarized 65 degrees directional antenna
- Pre-configuration for usable PTP mode
- Supports quick pairing
- Supports 24V PoE and 12V DC power input
- IP65 ingress protection, -30~60°C working environment
- Base Station/CPE/WISP/Repeater operation modes
- Discovery of ONVIF IP cameras and viewing network topology on the Cloud
- Centralized Management System Wi-Tek Cloud Platform
- Notes*
-
- Due to their wider signal beamwidth, these WAPs are recommended for short range coverage (from 10m to 500m*)
- The remote-end unit (C unit) needs 2 * dedicated CAT5/6 cables – one cable for PoE injector and the other cable from WAP’s LAN port to the network
-
