AAP AAP-RECEIVER

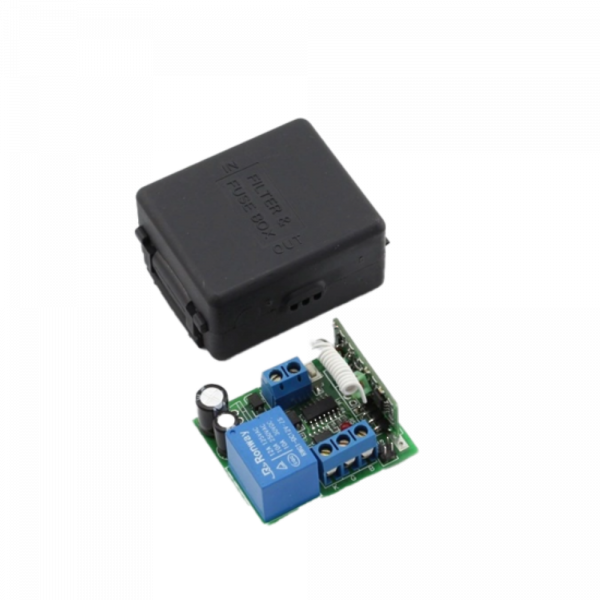

AAP AAP-RECEIVER – Single Channel Wireless Receiver for AAP-SMOKE, AAP-HEAT (433Mhz) Devices – 12VDC Input
SKU: AAP AAP-RECEIVER
Categories: Intrusion & Alarms, Wireless Alarm Other Products, Wireless Alarms
Tags: 433MHz Wireless, AAP, Receiver, Wireless
AAP AAP-RECEIVER – Single Channel Wireless Receiver for AAP-SMOKE, AAP-HEAT (433Mhz) Devices – 12VDC Input
Features :-
- DC 12V Input / 1-Channel Relay
- Working Current: 8mA
- Frequency: 433MHz
- Output Mode: Switching Signal (Dry Contact)
- Working Mode: Momentary / Toggle / Latching
- Max Load of Relay Contact: 7A
- Dimensions 56 x 45 x 28mm
- Wiring Diagram: B=Normally Closed, G=Common, K=Normally Open
