AAP B-BOB3024E

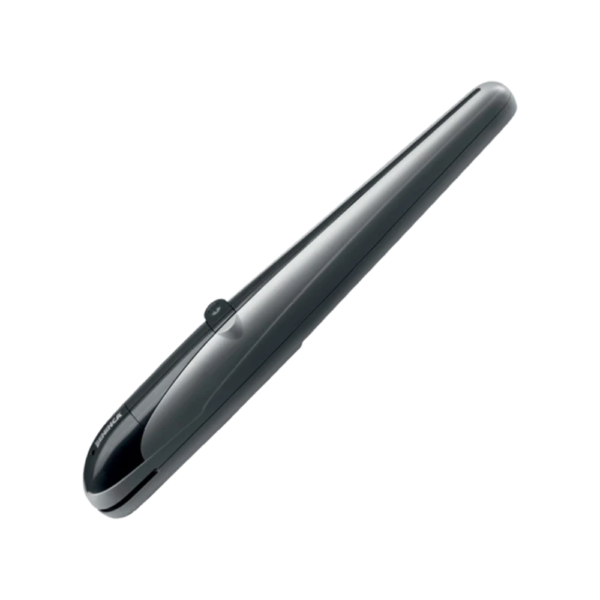

AAP B-BOB3024E Screw-Drive 24VDC Self-Locking Actuator – Intensive Use – Usable For Up to 3M Swing Gate Length – Adjustable Mechanical Stops – BLACK – Use with B-BRAINY24+
SKU: B-BOB3024E
Categories: Automation & Control, Gate Actuators, Gate Automation
Tags: AAP, Actuator, Beninca, Gate Automation, Swing Gates
AAP B-BOB3024E Screw-Drive 24VDC Self-Locking Actuator – Intensive Use – Usable For Up to 3M Swing Gate Length – Adjustable Mechanical Stops – BLACK – Use with B-BRAINY24+
Key Features :-
- Up to 3m per gate leaf
- Irreversible 24 Vdc electromechanical geared motor for intensive use
- Equipped with encoder which ensures maximum safety and precision in the gate moving phases
- Amperometry sensor obstacle detection system to prevent crushing
- Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing
- Easy access release from above
- Motor supply: 24 Vdc
- Max absorbed current: 5.5 A
- Maximum thrust: 1800 N
- Opening time: 9″ 21″
- Standard stroke: 270 mm
- Max stroke: 325 mm
- Duty cycle: Intensive use
- Protection level: IP44
- Encoder: Yes
- Operating temperature: -20°C /+50°C
- Lubrication: Grease
- Leaf max dimension: 3.0m
- Weight: 8.0 kg
