AAP EC-TOUCH-B

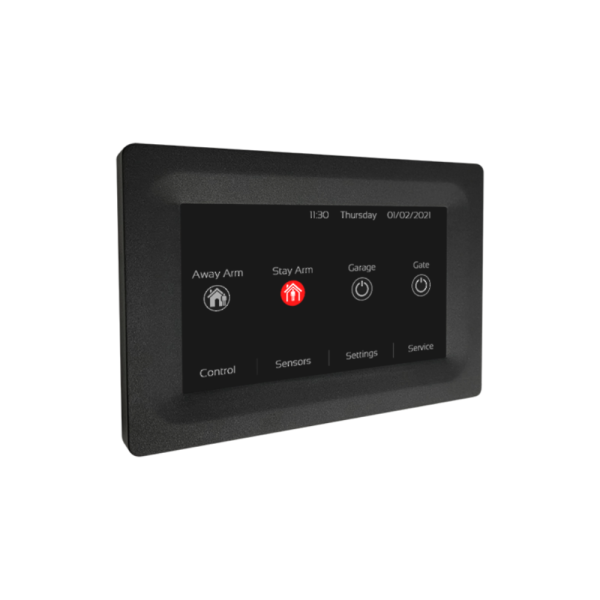

AAP EC-TOUCH-B 5″ Touchscreen Keypad – Black Colour – Compatible with EC-i, EC, ESL, Elite S, Elite S Lite and ESX Series Alarm Control Panels
SKU: EC-TOUCH-B
Categories: Intrusion & Alarms, Wired Alarm Keypads & Touchscreens, Wired Alarms
Tags: AAP, Alarm, Black, EC-TOUCH, Touchscreen
AAP EC-TOUCH-B 5″ Touchscreen Keypad – Black Colour – Compatible with EC-i, EC, ESL, Elite S, Elite S Lite and ESX Series Alarm Control Panels
Features :-
- Intuitive Graphical User Interface
- 5 Year warranty
- 5″ touch display
- Sharp 800 x 480 pixels
- Simple surface mount installation
- Built-in SD slot, includes 500MB M.SD card
- Setup wizard for simple installation
- NZ designed & manufactured
Specifications
- Resistive touch
- voltage: 10 to 15VDC
- Current: constant 250mA, max 500mA
- Max cable run: 30m / 0.22mm OR 80m / 0.44m
- Recommended mounting height – 1500mm
- Bus connection to ESL-2 or ESX control panels
- Covers horizontal flush boxes
