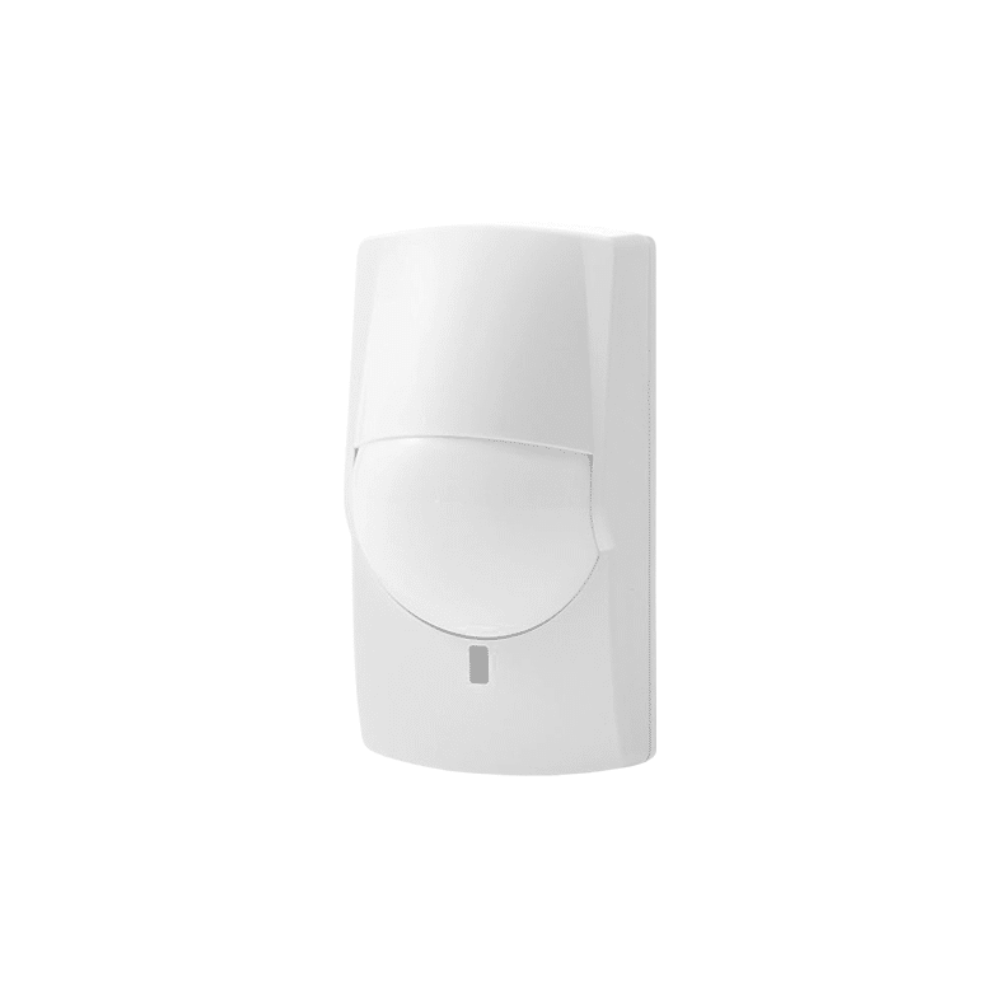

AAP Infinity-Motion

AAP Infinity-Motion Battery-Powered Wireless PIR Detector for EC, ESL & ESX Alarm Control Panels  – Works with Infinity Link

Features :-

• Detection Method: Passive Inrared
• Coverage: 12m x 12m @ 85 Degrees
• Mounting Height: 1.5 – 2.4m
• Detection Zones: 78 Zones
• Sensitivity: 1.6 deg.C @ 0.6m/sec
• Detection Speed: 0.3m – 1.5m/sec
• Pulse Count: Approx 20 sec (2 or 4)
• Wireless Range: Up to 500m Line of Sight
• Frequency: 915Mhz
• Modulation: GFSK
• Supervision: 7 minutes
• Protocol: infinity 2 way encrypted (freelink)
• LED Indicator: On/Off Selectable
• Tamper Switch: Front Cover Tamper
• Battery Type: 1 x CR123A lithium
• Battery Life: Up to 5 Years
• Battery Low voltage: 2.4 Volts
• Operating Temperature: -20 to 50 Deg. C
• Environment Humidity: 85% max
• Dimensions: 115mm x 62mm x 50mm
• Event Transmission: Alarm, Tamper, Low Battery & Supervision
• Requires Infinity Link
