Access Control, Standalone
Activor RRW01

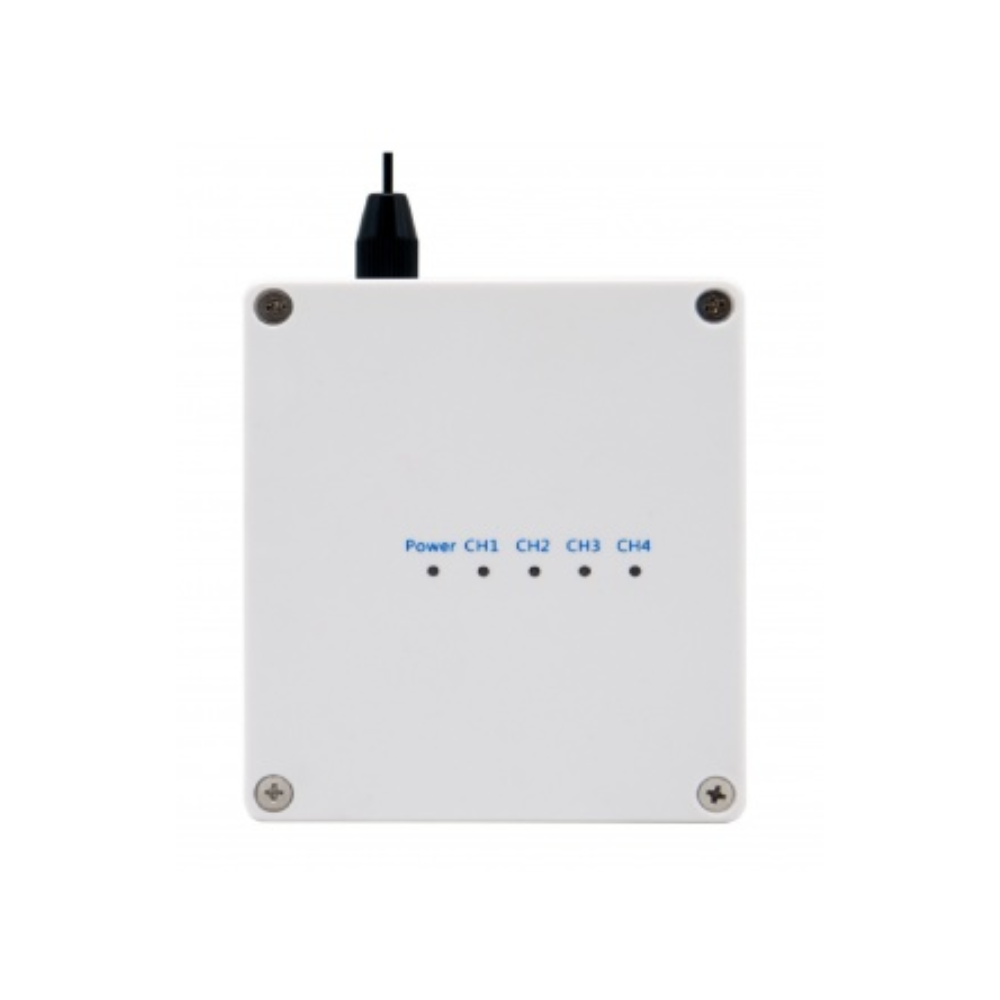

Activor RRW01 Wiegand 4-Channel 433MHz Wireless Receiver – Wiegand 26-Bit – IP65 Weatherproof – LED Indication – 4-Channel Wiegand Output
SKU: RRW01
Categories: Access Control, Standalone
Tags: 4-Channel, 433MHz Wireless, Access Control, Activor, Gate Automation, Gate Control, IP65 Rated, Outdoor, Receiver, Standalone, Weatherproof, Wiegand, Wireless
Activor RRW01 Wiegand 4-Channel 433MHz Wireless Receiver – Wiegand 26-Bit – IP65 Weatherproof – LED Indication – 4-Channel Wiegand Output
Key Features :-
- 4-channel standard 26bit Wiegand output
- Frequency: 433MHz
- Voltage: 9~15VDC
- Current: 15mA
- Option of pass-through or site-code verification
- IP65 rating for RRW01
- Each channel has an on-board LED to indicate data passage
- Dimensions: RRW01: 113mm (H) x 100mm (W) x 38mm (D)
Receiver:
- Output: 4-relay outputs
- Relay rating: SPDT; 1A 24VDC/120VAC
- Operating voltage: 9-15VDC
- Current: 8-40mA
- Capacity: 25 as standard (500 available on request)
- Sizes: 90mm(L) x 60mm(W) x 28mm(H)
Remote:
- 433.92 MHz Keeloq rolling code: 4.3 billion combination
- RF range: 100m (open air)
- Current: <1uA standby; 12mA operating
- Transmitting power: <10mW
- Power: 2 x 3 VDC lithium batteries CR2032
- Battery Life: 4 years under normal operating conditions
