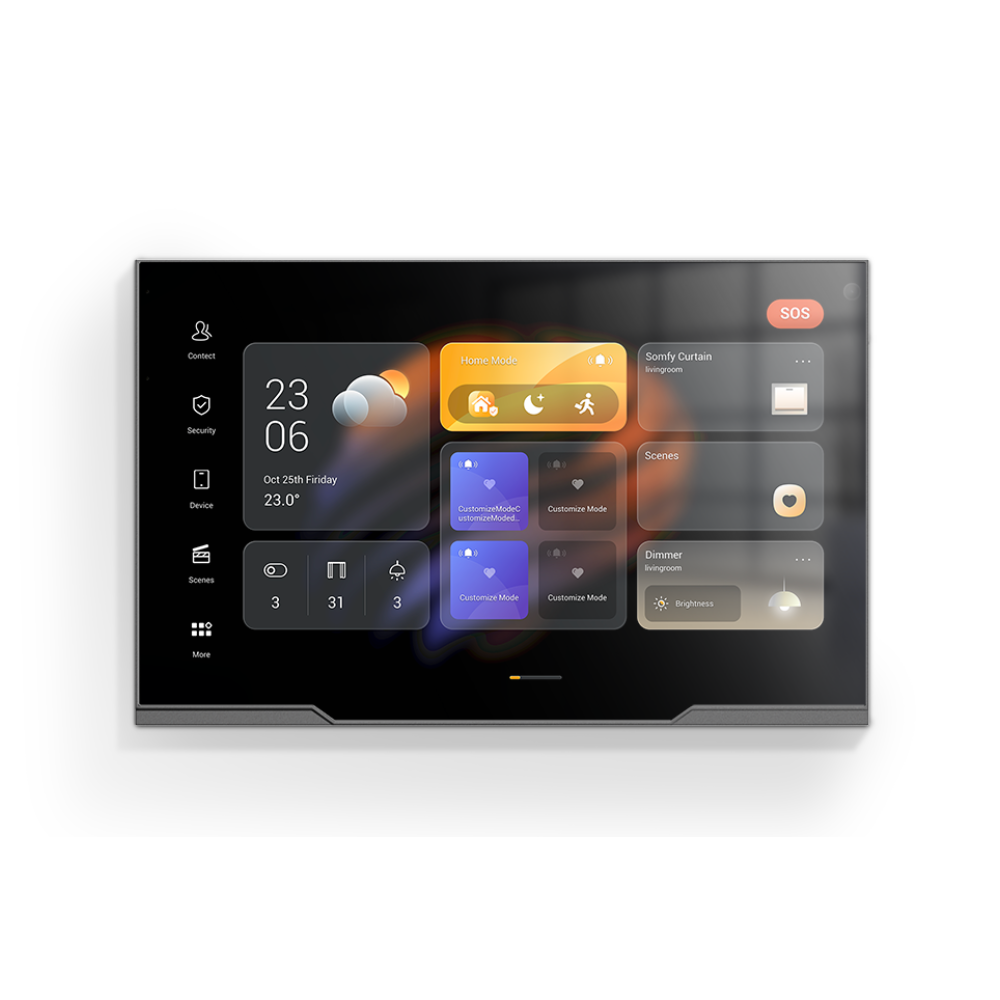

Akubela HyPanel Supreme PHX1-ST
Akubela HyPanel Supreme PHX1-ST – 12.35″ (12-Inch) Android Touchscreen Smart Home Control Panel – 12VDC/24VDC Powered – Supports WiFi (2.4GHz + 5GHz) – Bluetooth – ZigBee 3.0 – Built-in Gesture Recognition, Proximity, Light, Temperature and Humidity Sensors – 8 * 0~5VDC Digital Inputs + 4 * 230VAC Gang Dry Contacts + 2 * 0~30VDC Gang Dry Contacts
SKU: PHX1-ST
Categories: Akubela HyPanels, Akubela Smart Home Automation, Smart Home Automation
Tags: 12-inch, 2.4GHz Wireless, 5GHz Wireless, Akubela, Akuvox, Android, Bluetooth, Built-in Mic, Dual-Band Wi-Fi, Home Automation, Intercom, IP, Network, Speaker, Touchscreen, Voice Assistant, Wall-Mount, Wireless, Zigbee
Akubela HyPanel Supreme PHX1-ST – 12.35″ (12-Inch) Android Touchscreen Smart Home Control Panel – 12VDC/24VDC Powered – Supports WiFi (2.4GHz + 5GHz) – Bluetooth – ZigBee 3.0 – Built-in Gesture Recognition, Proximity, Light, Temperature and Humidity Sensors – 8 * 0~5VDC Digital Inputs + 4 * 230VAC Gang Dry Contacts + 2 * 0~30VDC Gang Dry Contacts
Key Features :-
- 12.35″ (12-Inch) touchscreen
- Metal body with more style embellishments
- 5-megapixel camera with privacy shutter
- 2560×1600 pixels screen resolution
- 8 * 0~5VDC Digital Inputs
- 4 * 230VAC Gang Dry Contacts + 2 * 0~30VDC Gang Dry Contacts
- ZigBee 3.0
- RS485
- Various built-in sensors with infrared remote control support
- Android 12 OS in High-powered Qualcomm chip
-
All-in-one device -> Smart intercom, ZigBee gateway, Home automation
-
Widely compatible with third-party devices and platforms
- BelaHome Mobile Phone App Control for Google Play & iOS
| Model No. | PHX1-ST |
| Power Supply | 12~24Vdc |
| Network | Wi-Fi6 2.4G/5G & Bluetooth 5.0 & ZigBee 3.0 & ETH |
| Material | Metal |
| Screen Size | 12.35” |
| Screen Resolution | 2560×1600 pixels |
| Sensors Built In | Gesture recognition, proximity, light, temperature, and humidity sensors |
| Camera | 5-megapixel camera with privacy shutter |
| RS485 | Support |
| Input | 0~5VDC digital input x8 |
| Output | 3A 100~240VAC/gang dry contact x4 2A 0~30VDC dry contact x2 |
| Installation | EU/UK/US backbox |
| Working Humidity | 10%~90%RH, without condensation |
| Working Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 70°C |
