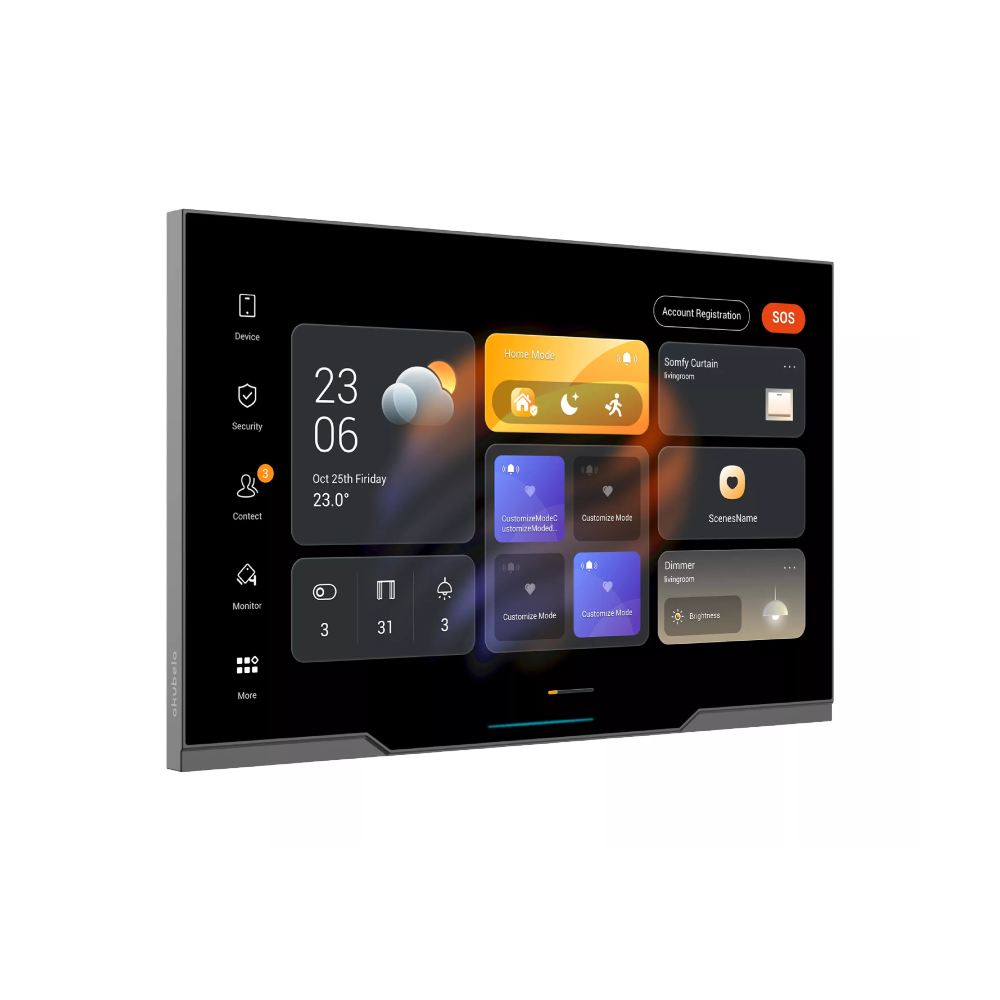

Akubela HyPanel Ultra PH81-ST
Akubela HyPanel Ultra PH81-ST – 10.36″ (10-Inch) Android Touchscreen Smart Home Control Panel – 12VDC/24VDC Powered – Supports WiFi (2.4GHz + 5GHz) – Bluetooth – ZigBee 3.0 – Built-in Proximity, Light, Temperature and Humidity Sensors – 8* Inputs with 6* Dry Contacts
SKU: PH81-ST
Categories: Akubela HyPanels, Akubela Smart Home Automation, Smart Home Automation
Tags: 10 Inch, 2.4GHz Wireless, 5GHz Wireless, Akubela, Akuvox, Android, Bluetooth, Built-in Mic, Dual-Band Wi-Fi, Home Automation, Intercom, IP, Network, PoE, Speaker, Touchscreen, Voice Assistant, Wall-Mount, Wireless, Zigbee
Akubela HyPanel Ultra PH81-ST – 10.36″ (10-Inch) Android Touchscreen Smart Home Control Panel – 12VDC/24VDC Powered – Supports WiFi (2.4GHz + 5GHz) – Bluetooth – ZigBee 3.0 – Built-in Proximity, Light, Temperature and Humidity Sensors – 8* Inputs with 6* Dry Contacts
Key Features :-
- 10.36″ (10.36-Inch) touchscreen
- Metal body with more style embellishments
- 8* 0~5VDC inputs
- 4* 3A rated 100~240VAC dry contacts + 2* 2A rated 0~30VDC dry contacts
- RS485
- Various built-in sensors with infrared remote control support
- Android 12 OS in High-powered Qualcomm chip
-
All-in-one device -> Smart intercom, ZigBee gateway, Home automation
-
Widely compatible with third-party devices and platforms
- BelaHome Mobile Phone App Control for Google Play & iOS
| Description | PH81-ST |
|---|---|
| Screen Size | 10.4 inches |
| Screen Resolution | 2000×1200 pixels |
| Screen Brightness | 360 cd/㎡ |
| Power Supply | 12~24VDC |
| Operation System | Android 12 |
| RAM/ROM | 4GB/32GB |
| Wi-Fi | WiFi6, @2.4GHz/5GHz |
| Proximity Sensor | 30~60cm |
| Light Sensor | Low-level lux detection |
| Environment | For indoor use only |
| Installation | Wall flush mounting |
| Weight (Net) | 1.52kg |
| Weight (Gross) | 0.00kg |
