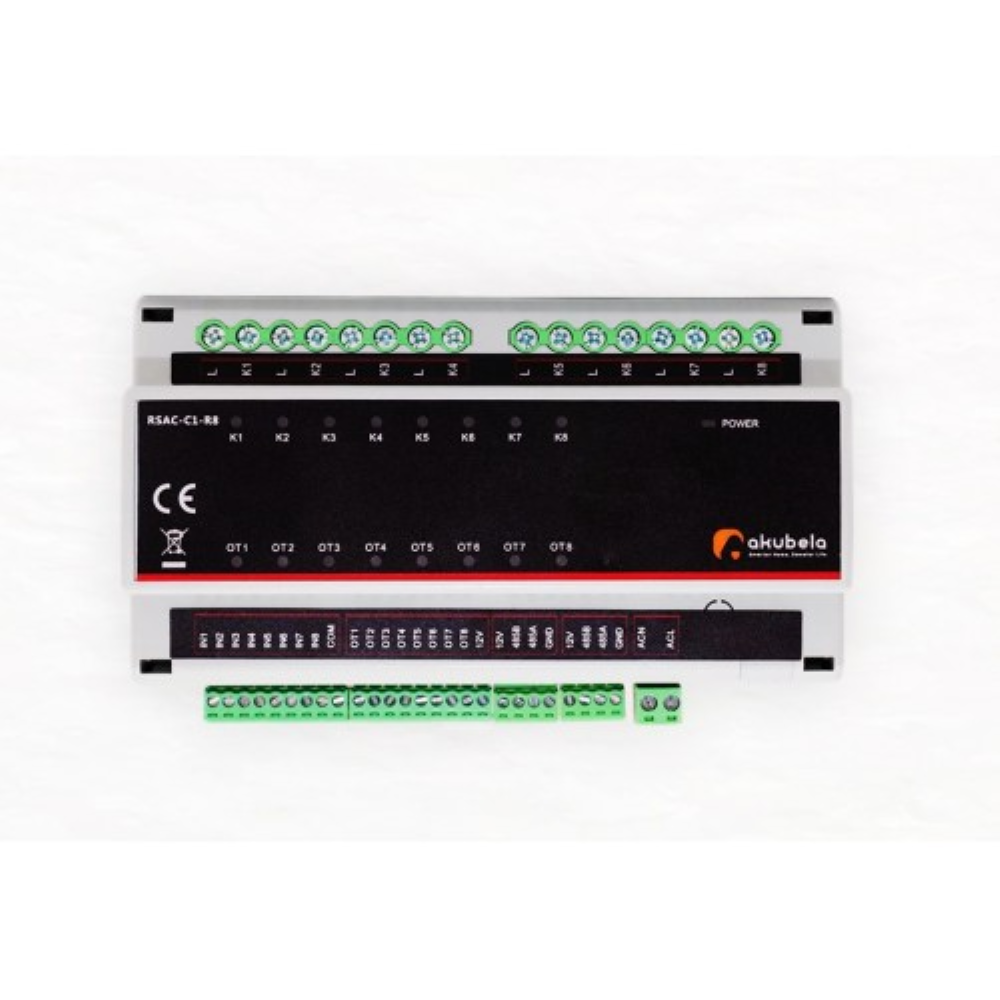

Akubela Switch Actuator RSAC-C1-R8
Akubela Switch Actuator RSAC-C1-R8 – DIN-RAIL Mount – RS485 Connection To An Akuvox Indoor Monitor / Akubela HyPanel / A Smart Home Gateway – 12VDC Powered – 8 * Input Signals + 8 * Relays + 8 * 12VDC Outputs
SKU: RSAC-C1-R8
Categories: Akubela Other Devices, Akubela Smart Home Automation, Akuvox Intercom Accessories, Akuvox Video Intercoms, Smart Home Automation, Video Intercoms
Tags: Akubela, Akuvox, DIN-RAIL, RS485, Switch Actuator
Akubela Switch Actuator RSAC-C1-R8 – DIN-RAIL Mount – RS485 Connection To An Akuvox Indoor Monitor / Akubela HyPanel / A Smart Home Gateway – 12VDC Powered – 8 * Input Signals + 8 * Relays + 8 * 12VDC Outputs
Key Features :-
- High-power relays with zero-crossing detection
- Integrated signal reception & control
- Suitable for resistive, capacitive
- Suitable for various load types such as inductive
- DIN rail mounting
- Suitable for installation in distribution boxes
- Belahome APP and HyPanel control support
Akubela ZigBee add-On Product-Link
- Product model: RSAC-C1-R8
- Input power: 12VDC/2A (recommended)
- Communication method: RS-485
- Control Bus: 2 x RS485 Bus
- Power connection Terminals: Live Wire/Neutral Wire
- IO input: 8 channels
- Relay control:
– 8 channels, Max 16A/channel (resistive load)
– Max 500W/channel (capacitive load) - 12VDC output: 8 channels, Max. 250mA/channel
- Operating temperature: 0 to 45°C
- Operating humidity: 0 to 95% RH (non-condensing)
- Material: PVC
- Product dimensions (LxWxD): 160 × 95.7 × 67mm
- Protection grade: IP20
