Access Control, Standalone

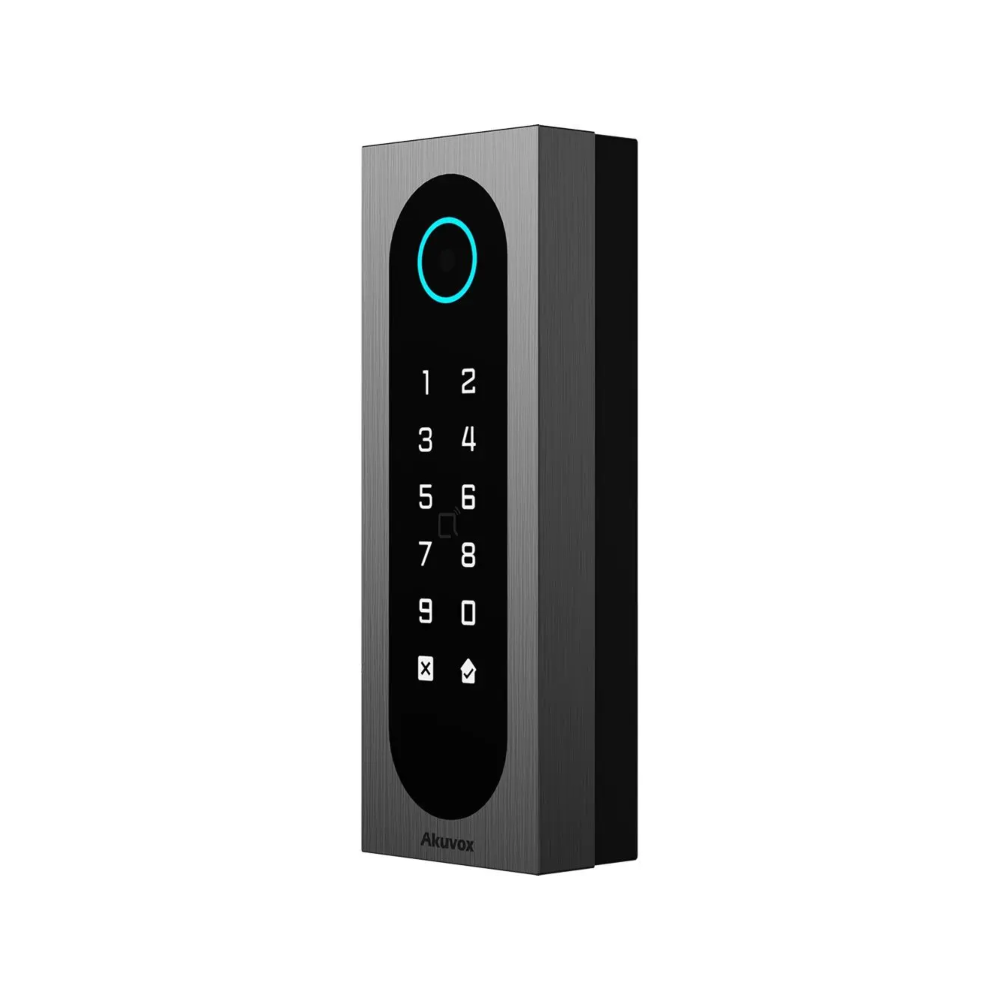

Akuvox A08S
Akuvox A08S IP65-Rated Weatherproof PoE IP Standalone Compact Access Control Unit – Built-in Touch Keypad + Dual-Frequency Card-Reader (125KHz EM + 13.56MHz Mifare) – Supports NFC + QR Codes Control – Supports Wiegand
SKU: A08S
Categories: Access Control, Standalone
Tags: 125KHz, 13.56MHz, Access Control, Akuvox, Controller, Gate Automation, Gate Control, IP, IP65 Rated, Mifare, NFC, PoE, QR Code, Relay, RFID Reader, Standalone, Touch Keypad, Touchscreen, Weatherproof, Wiegand
Akuvox A08S IP65-Rated Weatherproof PoE IP Standalone Compact Access Control Unit – Built-in Touch Keypad + Dual-Frequency Card-Reader (125KHz EM + 13.56MHz Mifare) – Supports NFC + QR Codes Control – Supports Wiegand
Key Features :-
- Aluminum Alloy design with Glass Touch Keypad
- Card reader: 125KHz and 13.56MHz RFID cards
- Supports NFC
- Supports Wiegand
- TCP/IP communication
- 802.3af PoE
- IP65 with IK09
- Mobile app control by NFC
.jpg)
Physical & Power
- Front panel: Toughened Glass
- Frame: Aluminum Alloy
- RFID card reader: 13.56MHz & 125kHz
- Relay out: 1
- Inputs: 2
- Wiegand: Support
- RS485: Support
- Speaker: 8Ω / 0.5W
- Tamper proof alarm: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 12V DC connector (if not using PoE)
- Power output: 12V 600mA
- IP Level: IP65
- IK Rating: IK09
- Installation: Flush-mounted or Wall-mounted
- Dimension: 50 x 140 x 26.7 (mm)
- Working Humidity: 10~90%，no condensing
- Working Temperature: -20°C ~ +55°C
- Storage Temperature: -30°C ~ +70°C
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
Door Entry Feature
- Access schedule
- Access level management
- Support switch to reader mode
- Door access logs
- Flexible shift scheduling and attendance management
Application Scenario
- Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
