Akuvox C319A

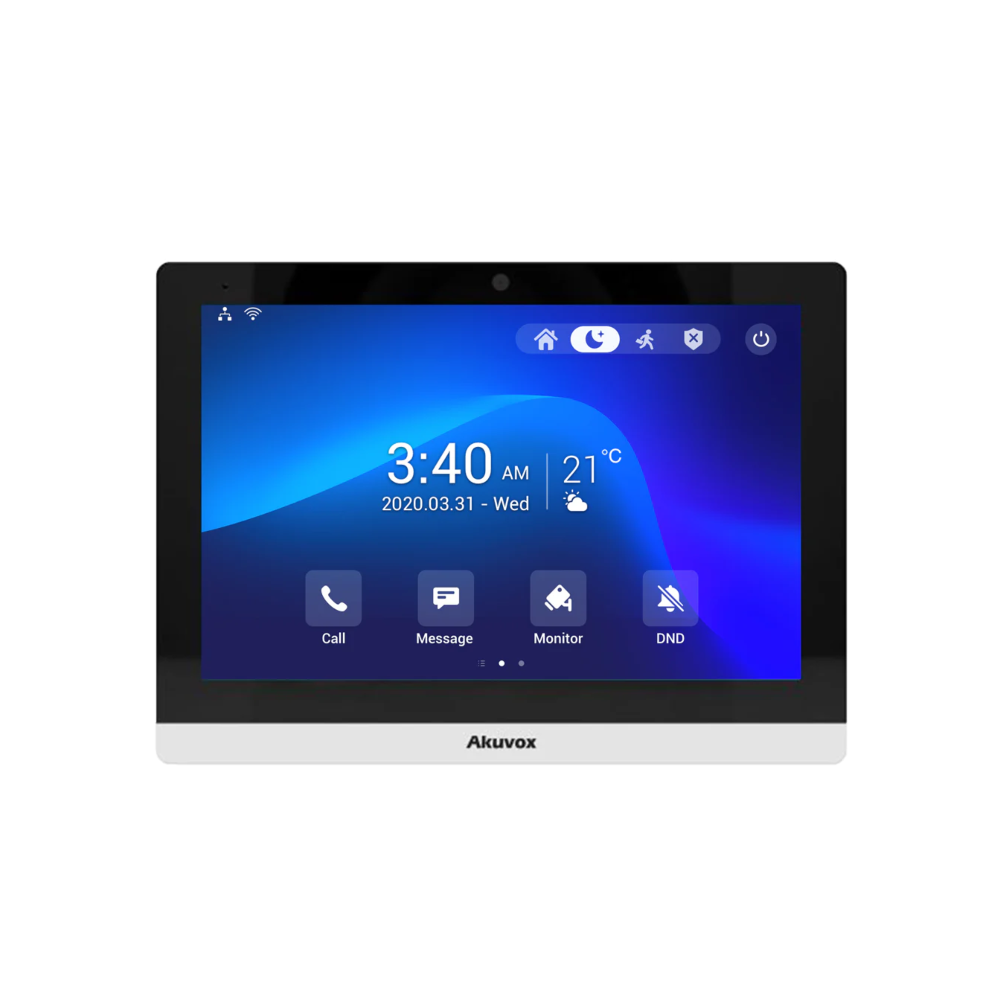

Akuvox C319A SIP Android PoE IP WiFi 10″ (7-Inch) Smart Video Intercom Touchscreen Monitor – Built-in 1MP Camera – Built-in Voice Assistant – Bluetooth & WiFi – Black Frame
SKU: C319A
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 10 Inch, Akuvox, Android, Audio, Built-in Mic, Gate Automation, Gate Control, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, White
Akuvox C319A SIP Android PoE IP WiFi 10″ (7-Inch) Smart Video Intercom Touchscreen Monitor – Built-in 1MP Camera – Built-in Voice Assistant – Bluetooth & WiFi – Black Frame
Key Features :-
- 10″ capacitive touchscreen indoor monitor
- Android 9 OS
- PoE Powered
- WiFi support (12VDC powered if not PoE)
- Supports Bluetooth
- Supports RS485
- 8 channel alarm inputs
- 2 channel relay output
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Plastic
- RAM / ROM: 2GB / 8GB
- Display: 10 Inch IPS LCD
- Screen: 10 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- BLE: Support BLE 4.2
- Camera: 1MP camera, CMOS
- Memory slot：1 Micro SD slot
- RS485 port: Support
- Relays out: 2
- Bell in: 1
- IO: 8
- Microphone: -26dB
- Speaker: Dual speakers, 4Ω / 3W
- Ethernet ports: 1xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Tamper resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 251×182.5×29.75mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 350 cd/m²
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Voice Assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
