Akuvox E12W

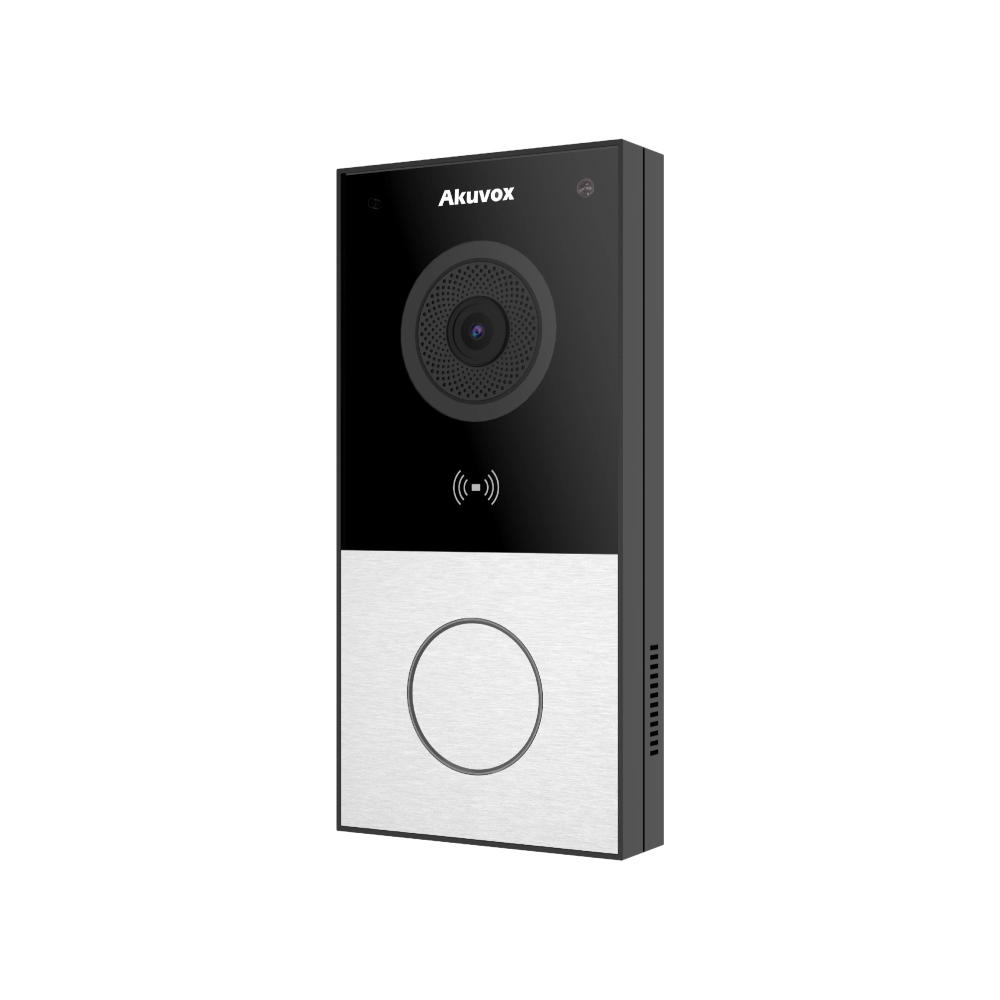

Akuvox E12W Compact Stylish 2MP 1080P PoE IP Wireless Outdoor Video Intercom Unit – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare Card-Reader – NFC – Single Relay Output – Wiegand Output
SKU: E12W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 13.56MHz, 2.4GHz Wireless, 2MP, Akuvox, Audio, Bluetooth, Built-in Mic, Doorbell, Gate Automation, Gate Control, IP, IP65 Rated, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Video Intercom, Weatherproof, Wiegand, Wireless
Akuvox E12W Compact Stylish 2MP 1080P PoE IP Wireless Outdoor Video Intercom Unit – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare Card-Reader – NFC – Single Relay Output – Wiegand Output

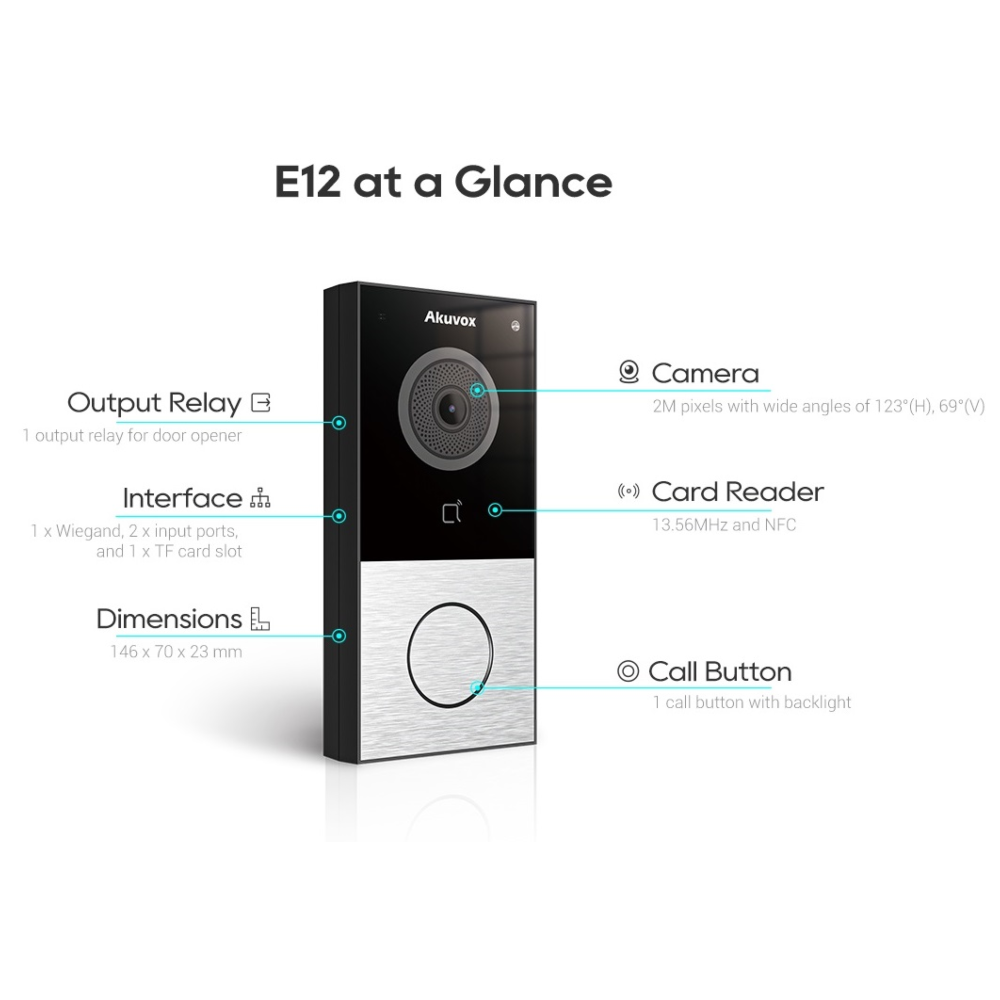

Key Features :-
- 2MP 1080P Video Camera with 123Ā° horizontal wide angle view
- Single call button
- IP65 rated weatherproof
- Two way audio communication over IP with echo cancellation feature
- Complies with SIP & ONVIF
- Linux operating system
- Body material – plastic
- Supports wiegand
- One relay output
- Supports Bluetooth
- Supports PoE and Wireless (use 12VDC power if not powered by PoE)
- Built-in Mifare (13.56MHz) card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
.jpg)
Physical & Power
- Body Material: Plastic
- Camera: 2M pixels, automatic lighting
- Button: 1 call button with backlight
- Wiegand port: Support
- RF card reader: 13.56MHz
- Light sensor: 1
- Relays out: 1
- Inputs: 2
- Micro SD card slot: 1
- Microphone: -36dB
- Speaker: 8Ī© / 1.5W
- Ethernet port: RJ45, 10/100Mbps adaptive
- BLE: Yes
- WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Onlyļ¼
- Vandal alarm: Yes
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Power: 12V / 1A
- Water-proof & Dust-proof: IP65
- Installation: Wall-mounted
- Size: 146x70x23mm
- Working Humidity: 10~90%
- Working Temperature: -40Ā°C ~ +60Ā°C
- Storage Temperature: -40Ā°C ~ +70Ā°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711Ī¼, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.7ā, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264, H.265
- Video resolution: up to 1920 x 1080p
- Max. image transfer rate: 1080p ā 25fps
- Viewing angle: 123Ā°(H) / 69Ā°(V)
- White LEDs for picture lighting during dark hours with internal light sensor
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
