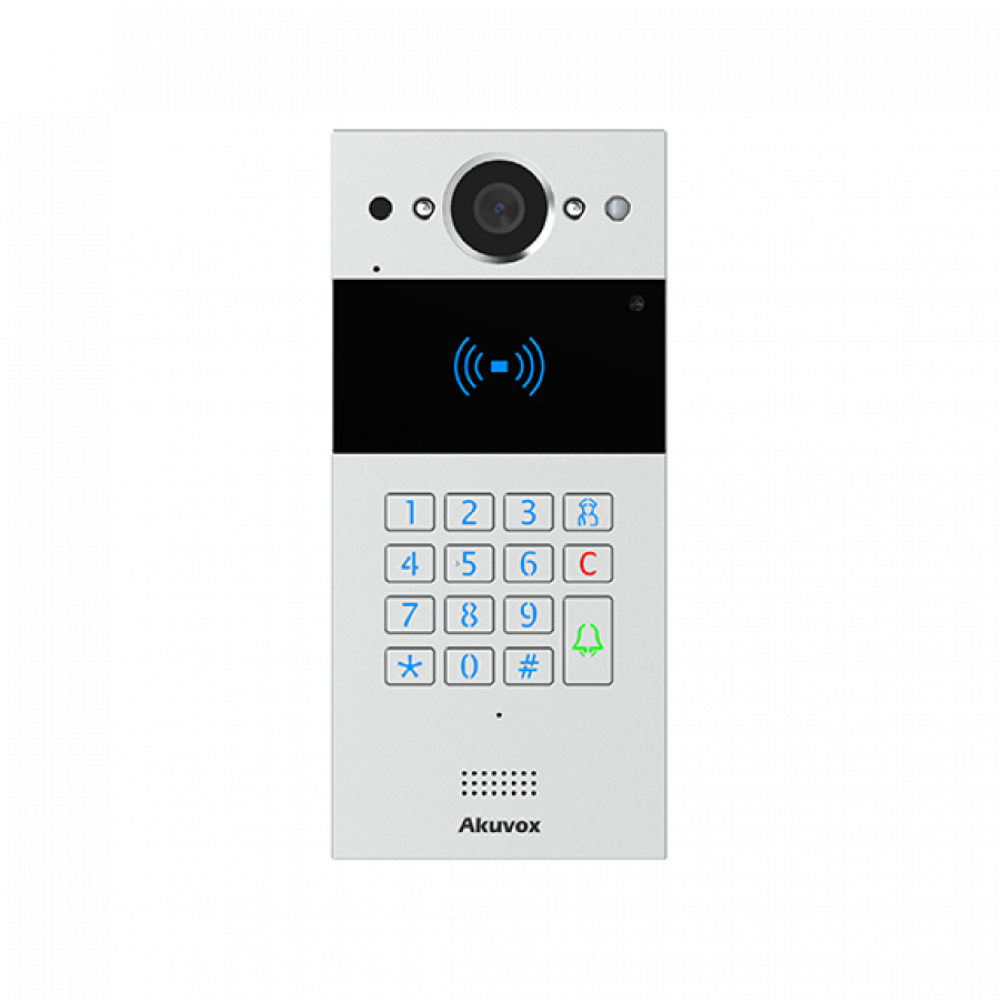

Akuvox R20K
Akuvox R20K 2MP PoE IP IR H264 Outdoor Video Intercom Unit with Integrated Keypad – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare & EM Card-Reader – NFC – Dual Relay Output – Supports RS485 & Wiegand
SKU: R20K
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 125KHz, 13.56MHz, 2MP, Akuvox, Audio, Built-in Mic, Doorbell, Gate Automation, Gate Control, IP, IP65 Rated, Keypad, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Video Intercom, Weatherproof, Wiegand
Akuvox R20K 2MP PoE IP IR H264 Outdoor Video Intercom Unit with Integrated Keypad – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare & EM Card-Reader – NFC – Dual Relay Output – Supports RS485 & Wiegand
Key Features :-
- 2MP Video Camera with 110° horizontal wide angle view
- Integrated keypad
- IP65 rated weatherproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Linux operating system
- Body material: aluminum
- Built-in motion sensor
- Supports RS485
- Supports wiegand
- Two relay output
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13. 56MHz & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 42Ω / 3W
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power- over – Ethernet
- 12V DC connector (if not using PoE)
- Water-proof & Dust- proof: IP65
- Installation: Flush-mounted or Wall- mounted
- Flush-mounted DIM: 226x108x52mm
- Wall- mounted DIM: 185x85x29mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -30°C ~ +65°C
- Storage Temperature: – 40°C~ + 70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.265&H.264
- Video resolution: up to 1080p
- Max. image transfer rate: 720p -30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd- Party video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto- night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP,HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
Deployment & Maintenance
- Auto- Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
