Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Akuvox R25A
Akuvox R25A Compact Stylish 2K 4MP PoE IP IR H264 Outdoor Video Intercom Unit – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare & EM Card-Reader – NFC – Dual Relay Output – Supports RS485 & Wiegand
SKU: R25A
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 125KHz, 13.56MHz, 4MP, Akuvox, Audio, Built-in Mic, Doorbell, Gate Automation, Gate Control, IP, IP65 Rated, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Video Intercom, Weatherproof, Wiegand
Akuvox R25A Compact Stylish 2K 4MP PoE IP IR H264 Outdoor Video Intercom Unit – Complies with SIP & ONVIF – IP65 Rated – Built-in Mifare & EM Card-Reader – NFC – Dual Relay Output – Supports RS485 & Wiegand

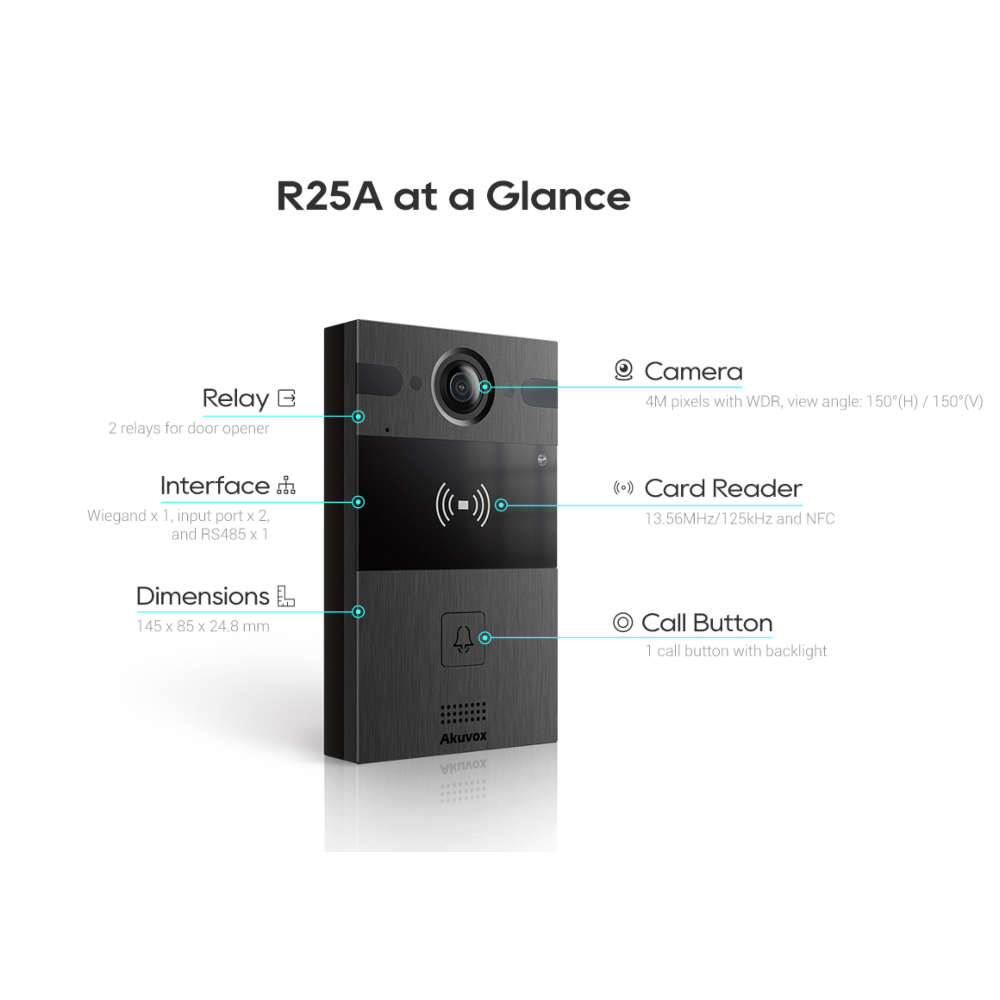

Key Features :-
- 2K 4MP Video Camera with 150° horizontal wide angle view
- Single call button
- IP65 rated weatherproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Linux operating system
- Body material: aluminum
- Built-in motion sensor
- Supports RS485
- Supports wiegand
- Two relay output
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Aluminum
- Camera: 4M pixels, automatic lighting
- Button: 1 call button
- Light sensor: Support
- Motion sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz, NFC
- Relays out: 2
- Inputs: 2
- Microphone: 1
- Speaker: 1
- Tamper alarm: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- IP Rating: IP65
- Size: 145x85x24.8mm
- Installation: Flush-mounted or Wall-mounted
- Working Humidity: 10~90%
- Working Temperature: -40°C ~ +55°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ
- Wideband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3.2”, CMOS
- Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K
- Video codec: H.264
- Video resolution: up to 2000×2000
- Max. image transfer rate: 2K – 30fps
- Viewing angle: 150°(H) / 150°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rdparty video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
