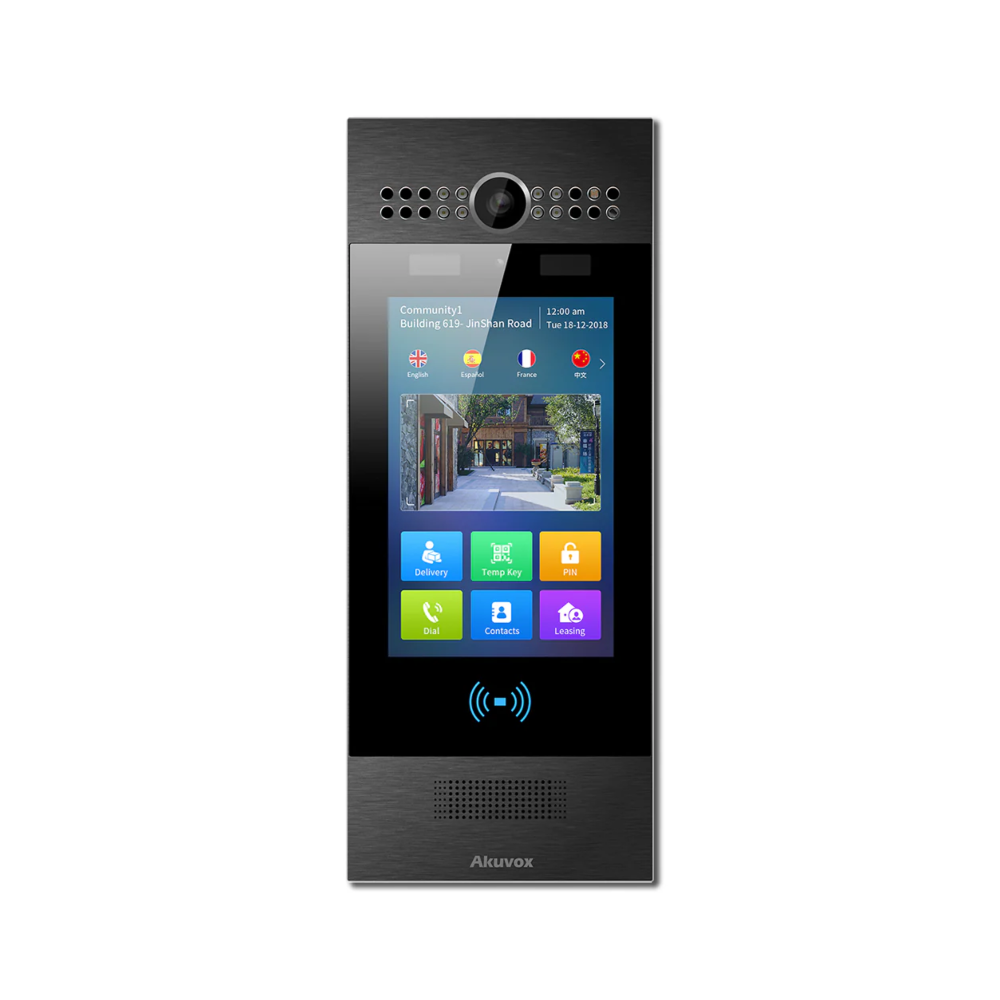

Akuvox R29C-L
Akuvox R29C-L 2MP Dual-Camera Android PoE IP IR H264 Outdoor 4G / LTE Video Intercom Unit with 7″ Touchscreen Panel – AI Face Recognition – Complies with SIP & ONVIF – IP65 & IK06 Rated – Built-in EM + Mifare Card-Reader – Relay Output – Supports RS485 & Wiegand
SKU: R29C-L
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 13.56MHz, 2MP, 4G, Akuvox, Android, Audio, Built-in Mic, Display, Doorbell, Face Capture, Face Detection, Face Recognition, Gate Automation, Gate Control, IP, IP65 Rated, LTE, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Touchscreen, Video Intercom, Weatherproof, Wiegand
Akuvox R29C-L 2MP Dual-Camera Android PoE IP IR H264 Outdoor 4G / LTE Video Intercom Unit with 7″ Touchscreen Panel – AI Face Recognition – Complies with SIP & ONVIF – IP65 & IK06 Rated – Built-in EM + Mifare Card-Reader – Relay Output – Supports RS485 & Wiegand
Key Features :-
- 2MP Video Camera with 105° horizontal wide angle view
- AI-powered Face recognition support
- 4G / LTE support for remote installations
- Integrated 7″ LED display – touchscreen panel
- IP65 rated weatherproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Android operating system
- Body material: Aluminum Alloy
- Supports RS485
- Supports wiegand
- Three relay outputs
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
At a Glance
- Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises
- Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries
- Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%
- Allows both audio and video communication to an IP phone, mobile client, or softphone
- Enables the ability to remotely control the door/gate
- Presents information and user navigation options unique to your business
- Speeds response time to visitors, delivery and service personnel that require access
Physical & Power
- Front panel: Aluminum
- RAM / ROM: 2GB / 16GB
- Display: 7 Inch IPS LCD
- Screen: 7 Inch capacitive touch screen
- Main Camera: 2M pixels, automatic lighting
- Auxiliary Camera: 1M pixels
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz
- Relays ln/out: 3/3
- Microphone: -32dB
- Speaker: 8Ω / 2W
- Bluetooth: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3at Power-over-Ethernet
- IP/IK Level: IP65/ IK06
- Installation: Flush-mounted & Wall-mounted
- Flush-mounted DIM: 324x130x60mm
- Wall-mounted DIM: 324x130x33mm
- Working Humidity: 10-90%
- Working Temperature: -20°C – +55°C
- Storage Temperature: -40°C – +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8″, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 25fps
- Viewing angle: 105(H)/55°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- White LEDs for QR code scanning
- Compatible to 3rd-party video components,
Networking and Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- Android OS for any 3rd-party software or customization
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, IC/ID Card, PIN and BLE
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
- Business information or a welcome experience for guests
