Akuvox S563W

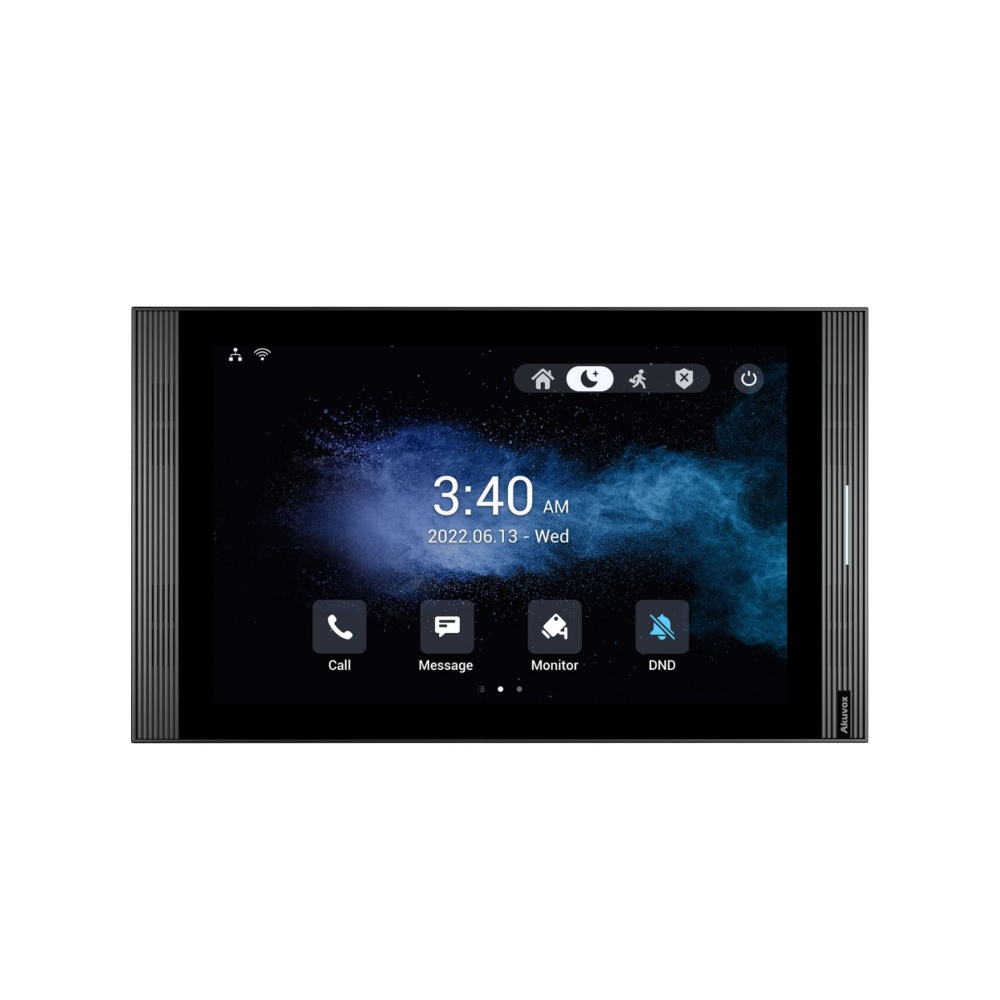

Akuvox S563W SIP Android PoE IP WiFi 8″ (8-Inch) Video Intercom Touchscreen Monitor – Android 12 OS – Built-in WiFi – Voice Assistant – Black Frame
SKU: S563W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 2.4GHz Wireless, 8-Inch, Akuvox, Android, Audio, Audio Intercom, Built-in Mic, Gate Automation, Gate Control, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, Voice Assistant, White, WiFi, Wireless
Akuvox S563W SIP Android PoE IP WiFi 8″ (8-Inch) Video Intercom Touchscreen Monitor – Android 12 OS – Built-in WiFi – Voice Assistant – Black Frame
Key Features :-
- 8″ capacitive touchscreen monitor
- Android 12 OS
- PoE Powered
- Supports WiFi (12VDC powered if not PoE)
- 8 alarm inputs
- 1 relay output
- Supports RS485
- Built-in Voice Assistant
- SIP protocol support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Speaker: one speaker, 4Ω / 2W
- Ethernet Ports: 2 x RJ45 10/100Mbps adaptive 802.3af
- Power-over-Ethernet 12VDC Connector (if not using PoE)
- Tamper Resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 216.2 x 124.4 x 22.1 mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 8 inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 1200:1
- Luminance: 310 cd/m²
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80°
- Lower Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (including door access logs)
Voice Assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
