Akuvox S567W

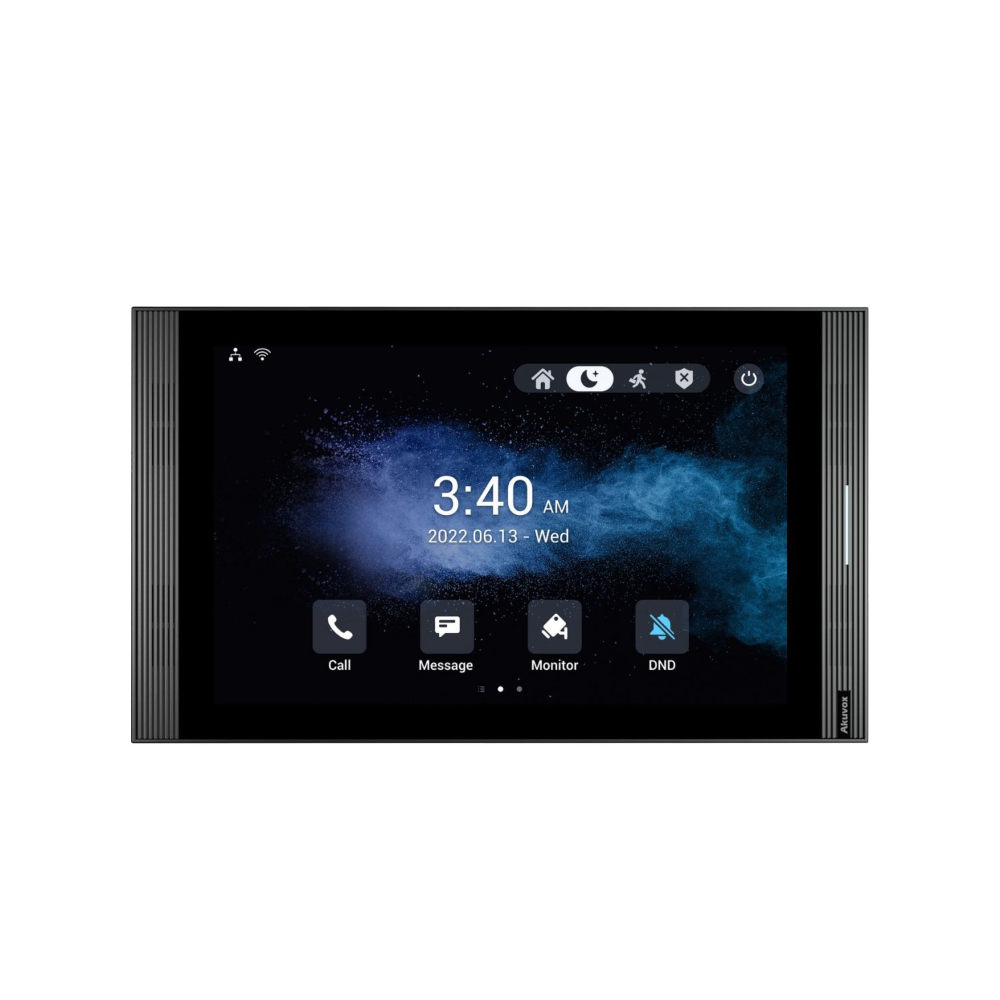

Akuvox S567W SIP Android PoE IP WiFi 10″ (10-Inch) Video Intercom Touchscreen Monitor – Android 12 OS – Built-in WiFi – Voice Assistant – Built-in Music Player – Black Frame
SKU: S567W
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 10 Inch, 2.4GHz Wireless, Akuvox, Android, Audio, Audio Intercom, Built-in Mic, Gate Automation, Gate Control, IP, Monitor, PoE, Relay, SIP, Speaker, Touchscreen, Video Intercom, Voice Assistant, White, WiFi, WiFi 6, Wireless
Akuvox S567W SIP Android PoE IP WiFi 10″ (10-Inch) Video Intercom Touchscreen Monitor – Android 12 OS – Built-in WiFi – Voice Assistant – Built-in Music Player – Black Frame
Key Features :-
- 12″ capacitive touchscreen monitor
- Android 12 OS
- PoE Powered
- Supports WiFi 6 (12VDC powered if not PoE)
- 8 alarm inputs
- 1 relay output
- Supports RS485
- Built-in Voice Assistant
- Built-in music player – built-in quad speaker
- SIP protocol support
- Mobile app control by Akuvox SmartPlus App
Physical & Power
- Front panel: Plastic
- RAM / ROM: 2GB / 8GB
- Display: 10-inch IPS LCD
- Screen: 10-inch capacitive touchscreen
- RS485 Port: 1
- Relays Out: 1
- Bell in: 1
- Alarm Input: 8
- Microphone: Dual microphones
- Speaker: Quad speakers
- Ethernet Ports: 1 x RJ45
- POE: 802.3af Power-over-Ethernet
- Power: 12V DC Connector
- Tamper Resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 278 x 164 x 22.8 mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature:-20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10-inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 290 cd/m²
- Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722D
- TMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Voice Assistant
- Voice pickup distance up to 5 meters
- Voice recognition accuracy up to 95%
- Privacy protection with native voice data
- Support English
Application Scenario
- Villas Apartment complexes
- Home automation systems
- Modern interiors
