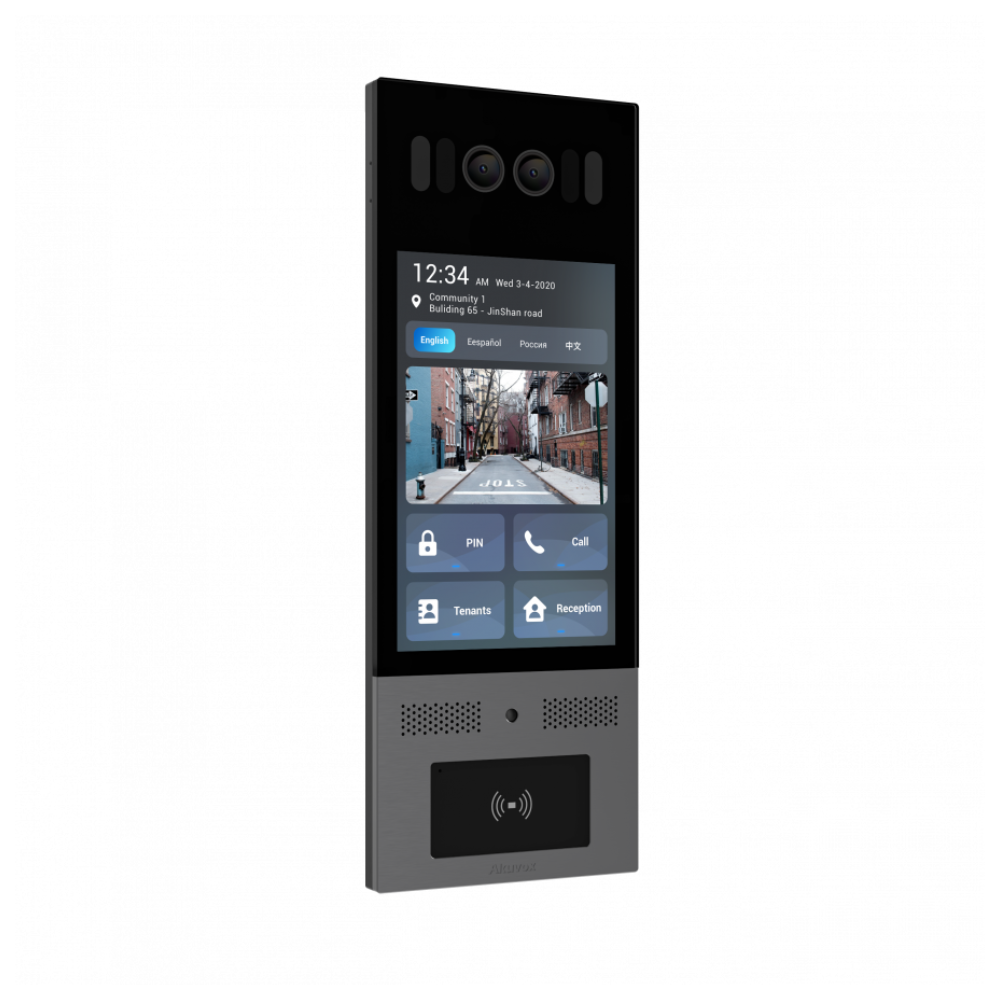

Akuvox X915S
Akuvox X915S 2MP PoE IP IR H264 Outdoor Video Intercom Unit with 8″ Touchscreen Panel – Android – Face Recognition – Complies with SIP & ONVIF – IP65 & IK10 Rated – Built-in Mifare & EM Card-Reader – Three Relay Output – Supports RS485 & Wiegand
SKU: X915S
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 125KHz, 13.56MHz, 2MP, Akuvox, Android, Audio, Built-in Mic, Display, Doorbell, Face Capture, Face Detection, Face Recognition, Gate Automation, Gate Control, IK10 Rated, IP, IP65 Rated, Keypad, Mifare, NFC, ONVIF, Outdoor, PoE, Relay, RFID Reader, SIP, Speaker, Touchscreen, Video Intercom, Weatherproof, Wiegand
Akuvox X915S 2MP PoE IP IR H264 Outdoor Video Intercom Unit with 8″ Touchscreen Panel – Android – Face Recognition – Complies with SIP & ONVIF – IP65 & IK10 Rated – Built-in Mifare & EM Card-Reader – Three Relay Output – Supports RS485 & Wiegand
Key Features :-
- 2MP Video Camera with 115° horizontal wide angle view
- Face recognition support
- Integrated 8″ LED display – touchscreen panel
- Android based unit
- IP65 rated weatherproof
- IK10 rated vandalproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Linux operating system
- Body material: aluminum
- Built-in motion sensor
- Supports RS485
- Supports wiegand
- Two relay output
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
(1).jpg)
At a Glance
- Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes
- Face verification accuracy >99% ; face comparison speed <0.6s per person; false recognition rate<0.1%
- Intuitive interface with color touch display for superior resident and visitor usability
- 8” fully-color touch display provides ultra-wide viewing angles
- Presents information and user navigation options unique to your business
- Supports SIP to provide reliable two-way voice & one-way video communication
- Complies with ONVIF standard for easy integration with any network surveillance system
Physical & Power
- Front Panel: 316 grade stainless steel
- RAM / ROM: 2GB / 16GB
- Display: 8 Inch IPS LCD
- Main Camera: 2M pixels, with starlight
- Light Sensor: Support
- Infrared Sensor: Support
- Wiegand Port: Support
- RS485 Port: Support
- Line Out: Support
- RF Card Reader: 13.56MHz & 125kHz
- Relays Out: 3
- Inputs: 3
- Microphone: 2, -42dB
- Speaker: 2, 8Ω / 2W
- Reset Button: 1
- Ethernet port: 1 x RJ45 10/100Mbps adaptive
- IEEE 802.3at PoE+
- 12~24V DC connector (if not using PoE+)
- IP & IK Level：IP65 & IK10
- Installation: Flush-mounted & Wall-mounted
- Flush-mounted DIM: 350 x 130 x 53.9mm
- Wall-mounted DIM: 350 x 130x 41.6mm
- Working Humidity: 10~90%
- Working Temperature: -30°C ~ +60°C
- Storage Temperature: -30°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8”, CMOS for main camera
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video technology: HDR
- Video resolution: up to 1920 x 1080p
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 115°(H) / 63°(V)
- Compatible to 3rd-Party-Video components, e.g. NVRs
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
- Android OS for any 3rd party software or customization
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Face, Card, PIN, BLE & QR code
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
