Akuvox X916S

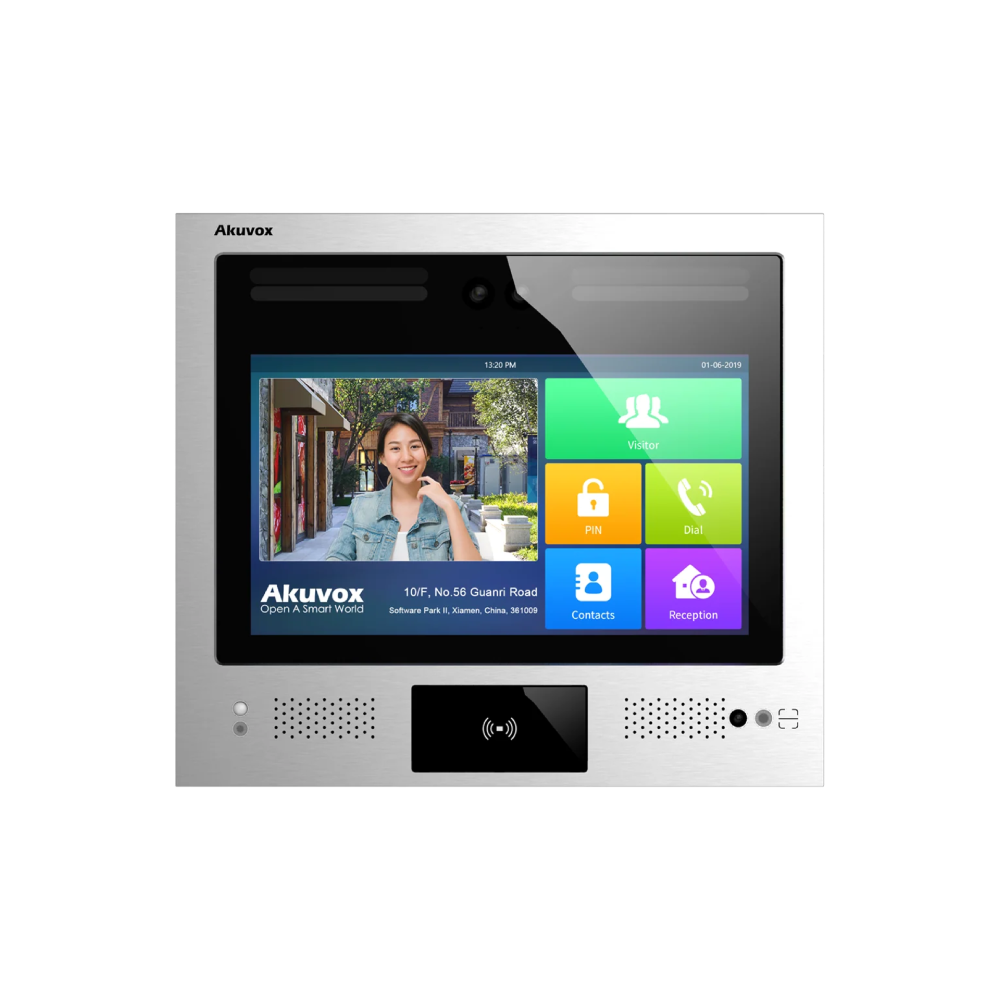

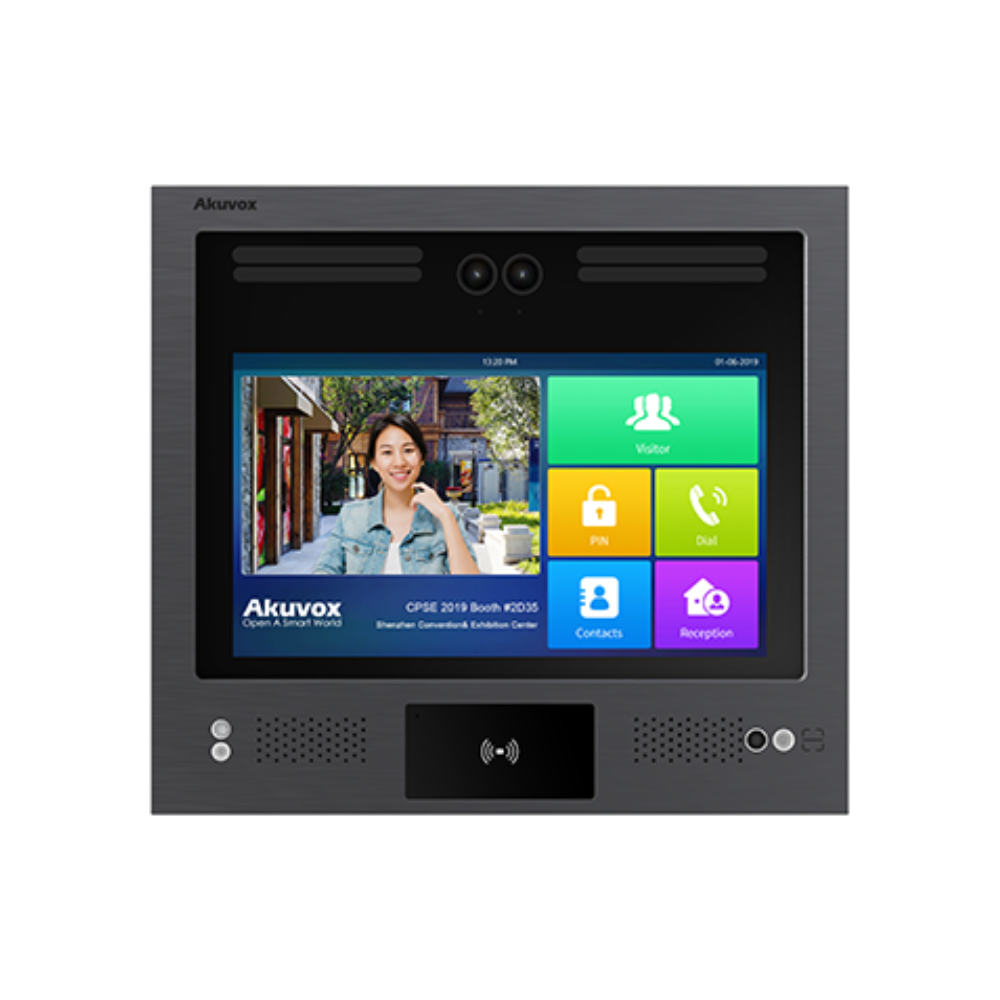

Akuvox X916S 2MP PoE IP IR H264 Outdoor Video Intercom Unit with 13″ Touchscreen Panel – 4G / LTE Support – Android – Face Recognition – Complies with SIP & ONVIF – IP65 & IK08 Rated – Built-in Mifare & EM Card-Reader – Built-in QR-Code Reader – Four Relay Outputs – Supports RS485 & Wiegand
SKU: X916S
Categories: Akuvox IP Video Intercoms, Akuvox Video Intercoms, Video Intercoms
Tags: 1080P, 125KHz, 13.56MHz, 2MP, 4G, Akuvox, Android, Audio, Bluetooth, Built-in Mic, Display, Doorbell, Face Capture, Face Detection, Face Recognition, Gate Automation, Gate Control, IK10 Rated, IP, IP65 Rated, Keypad, LTE, Mifare, NFC, ONVIF, Outdoor, PoE, QR Code, Relay, RFID Reader, SIP, Speaker, Touchscreen, Video Intercom, Weatherproof, Wiegand
Akuvox X916S 2MP PoE IP IR H264 Outdoor Video Intercom Unit with 13″ Touchscreen Panel – 4G / LTE Support – Android – Face Recognition – Complies with SIP & ONVIF – IP65 & IK08 Rated – Built-in Mifare & EM Card-Reader – Built-in QR-Code Reader – Four Relay Outputs – Supports RS485 & Wiegand
Key Features :-
- 2MP Video Camera with 115° horizontal wide angle view
- Face recognition support
- Integrated 13″ LED display – touchscreen panel
- Multi-way access feature including: Face, EM/Mifare Card, PIN, BLE & QR code
- Android based unit
- IP65 rated weatherproof
- IK10 rated vandalproof
- Two way audio communication over IP with echo cancellation and noise suppression features
- Complies with SIP & ONVIF
- Body material: aluminum
- Built-in motion sensor
- Supports RS485
- Supports wiegand
- Two relay output
- Supports PoE
- Built-in Mifare (13.56MHz) & EM (125KHz) dual frequency card-reader with NFC support
- Mobile app control by Akuvox SmartPlus App
At a Glance
- Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;
- Intuitive interface with color touch display for superior resident and visitor usability;
- 13”fully-color touch display provides ultra-wide viewing angles;
- Presents information and user navigation options unique to your business;
- Supports SIP to provide reliable two-way voice & one-way video communication;
- Complies with ONVIF standard for easy integration with any network surveillance system;
Physical & Power
- Front Panel: 316 grade stainless steel
- RAM / ROM: 2GB / 16GB
- Display: 13 Inch IPS LCD
- Main Camera: 2M pixels, with starlight
- Auxiliary Camera 1: 2M pixels
- Auxiliary Camera 2: 0.3M pixels
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz & 125kHz
- Relays out: 4
- Inputs: 4
- Reset button: 1
- USB Interface: 2
- HDMI Interface: 1
- TF Card Slot: 1
- Microphone: 2, -42dB
- Speaker: 2, 8Ω / 2W
- Power out: 12V / 500mA
- Ethernet port: 2xRJ45, 10/100/1000Mbps adaptive
- IEEE 802.3at PoE+
- 12~24V DC connector (if not using PoE+)
- Water-proof & Dust-proof: IP65
- lK Rating: IK08
- Installation: Flush-mounted & Wall-mounted
- Flush-mounted DIM: 383.9×339.15×63.7mm
- Wall-mounted DIM: 383.9×339.15×48.95mm
- Working Humidity: 10~90%
- Working Temperature: -20°C ~ +55°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8”, CMOS for main camera
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video technology: HDR
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 115°(H) / 63°(V)
- Compatible to 3rd-Party-Video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
