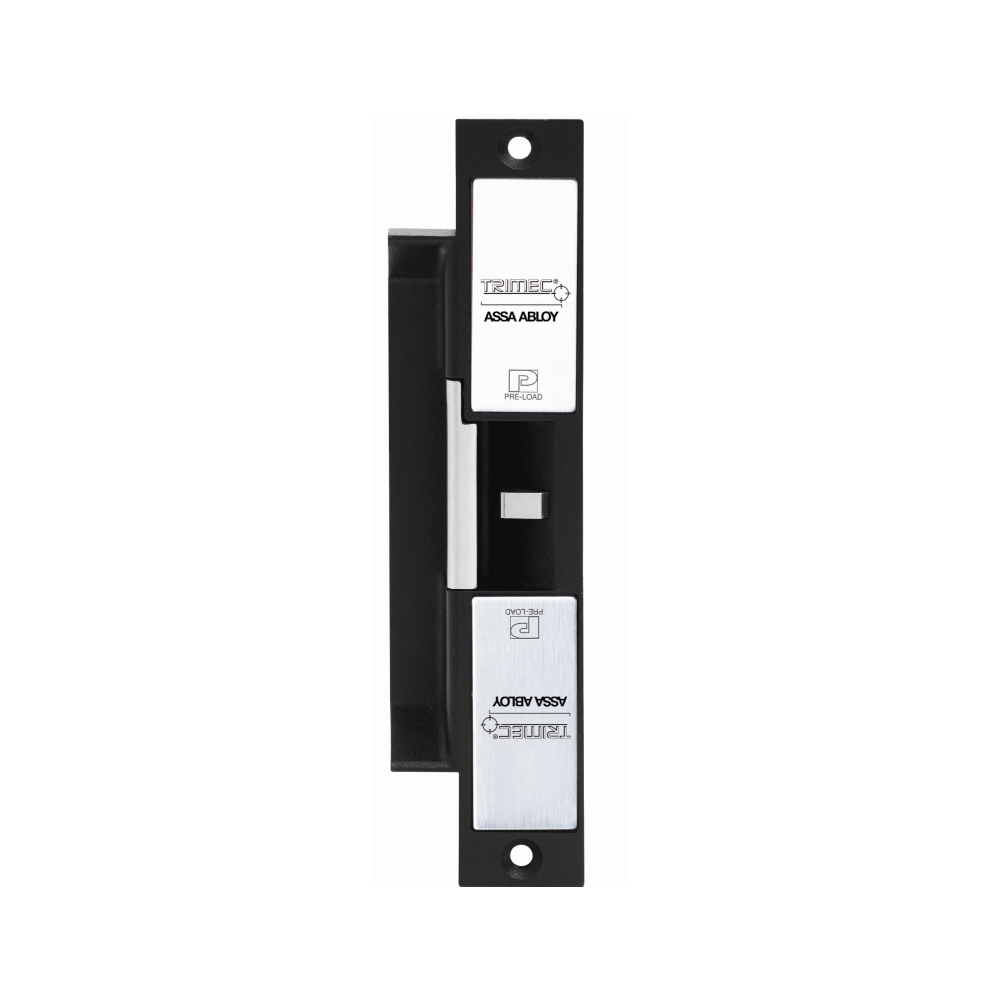

Assa Abloy Trimec ES9000 (119001-000)
Assa Abloy Trimec ES9000 (119001-000) Pre-loaded Electric Strike Lock – Supports Monitoring – 12VDC to 24VDC – Fail Safe / Fail Secure
SKU: 119001-000
Categories: Access Control, Electronic Locks, Locks, Strike Locks & Accessories
Tags: Access Control, Assa Abloy, Electric Strike Lock, ES9000, Fail-safe, Fail-secure, Lock, Trimec
Assa Abloy Trimec ES9000 (119001-000) Pre-loaded Electric Strike Lock – Supports Monitoring – 12VDC to 24VDC – Fail Safe / Fail Secure
Key Features
- Operates under pre load up to 25kg
- Easy field selectable fail safe/fail secure
- Multi voltage 10-30Vdc
- 1300kg holding force
- 2.5 million cycles endurance rating
- Latch keeper is significantly quieter in operation
- Weather resistant
- Mounting tabs as standard
- Non handed
- TRICARE® 5 Year Warranty
- Australian designed and made
- Built in Protection Diode
Applications
- High traffic areas
- Doors subjected to side load (pre load)
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Electrical
- 10 – 30Vdc
- 250mA @12Vdc – 130mA @24Vdc
- Solenoid rated for continuous use
- Polarity and back EMF protected
Performance
- 680kg (1,500lbs) Static strength rating (UL 1034).
- 200,000cycles endurance rating @ 25kg pre-load (based on EN12209, Grade Y)
- Suitable for 15mm latch with 3mm door gap
Monitoring
- Solenoid Monitor – 1 amp NO/NC microswitch
- Door/Latch Monitor – 1 amp NO/NC microswitch
Certification
- AS4145 2008. Compliant to the highest levels of strength and durability when used with an approved lockset.
- C-tick & CE compliant
- 4 hour fire rating, when used with approved door (in accordance with AS1905.1-1997, Part 1: Fire resistant Door sets)
