Assa Abloy Trimec LT770300-210

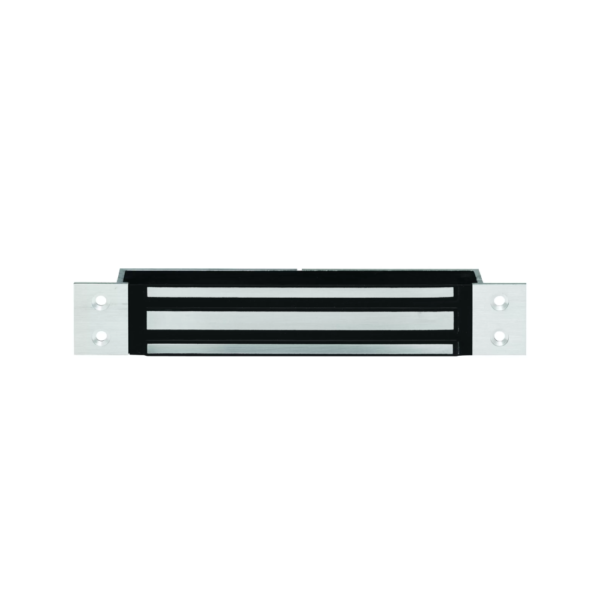

Assa Abloy Trimec LT770300-210 Z4 Fail-Safe Electronic Mag Lock – Up to 280Kg Holding Force – Supports Monitoring* – 12VDC to 24VDC – Recessed / In-wall Installation
Assa Abloy Trimec LT770300-210 Z4 Fail-Safe Electronic Mag Lock – Up to 280Kg Holding Force – Supports Monitoring* – 12VDC to 24VDC – Recessed / In-wall Installation
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: refer to the technical data overleaf
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitored versions: Hall-Effect status monitoring available on some models
Applications
- Various sliding door applications
Standards and Compliance
- CE Approved
- C-Tick Certified
Z4 Magnet Monitored
Holding Force 250kg – 280kg
Dimensions (L)182 x (H)42 x (D)23 mm
Voltage 12Vdc/ 24Vdc ±10%
Current 450mA @ 12Vdc 225mA @ 24Vdc
Monitoring Hall Effect / Bond sensing
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 – 95%
Specification Statement
The Recessed Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system.
