Brateck LCD-501

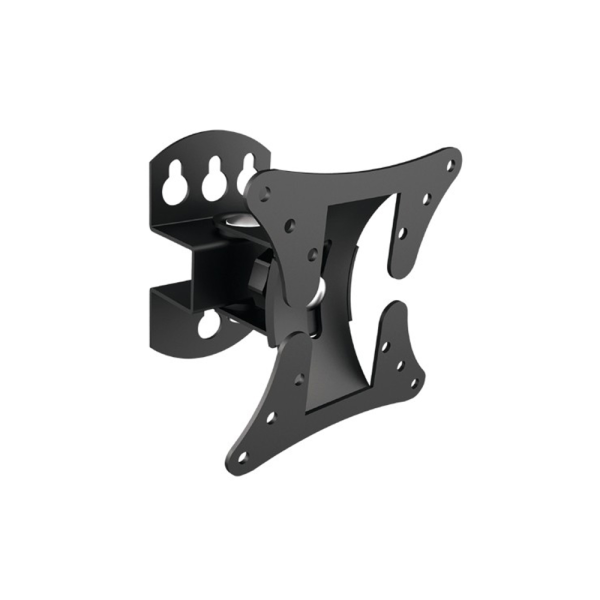

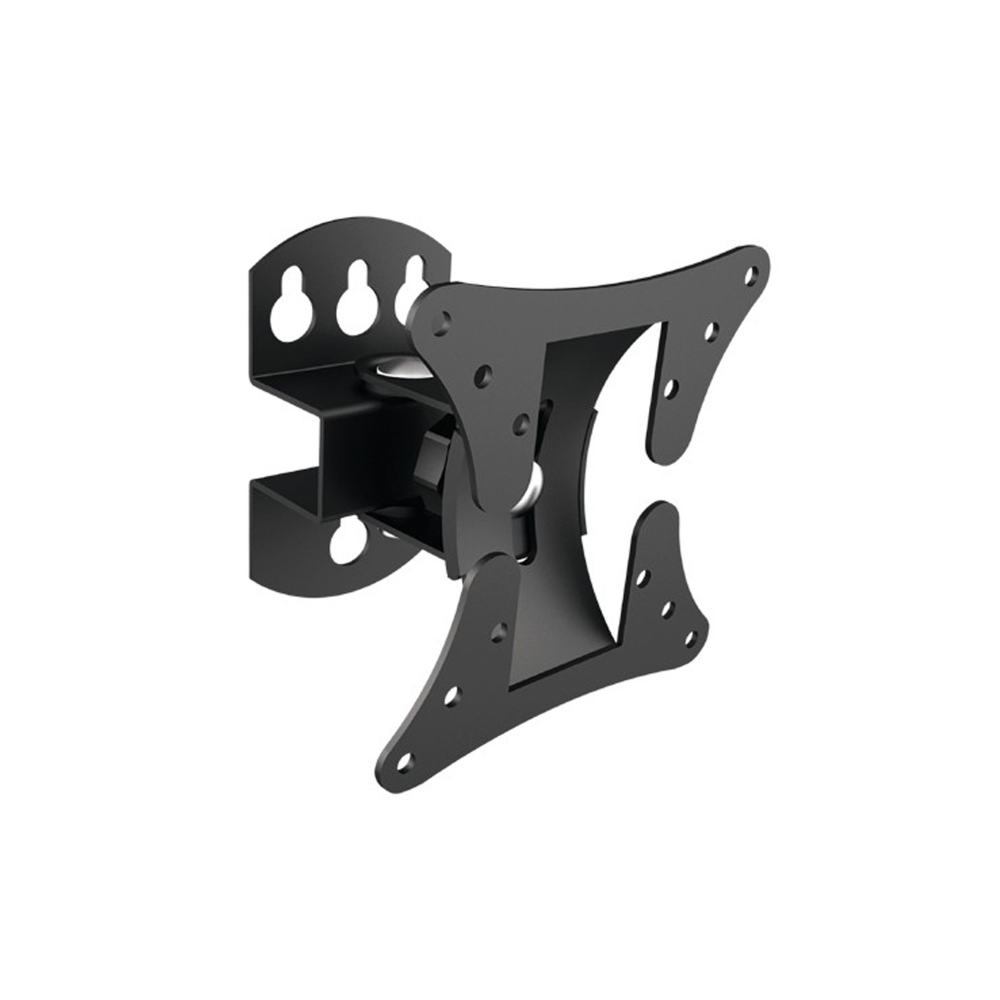

Brateck LCD-501 Pivot 13″ to 27″ LCD Wall-Mount Bracket – Max VESA 100mm x 100mm – Tilt -20° to +20° – Pan -30° to +30°
SKU: LCD-501
Categories: Mounting Accessories, TVs & Monitors
Tags: Bracket, Brateck, VESA, Wall-Mount
Brateck LCD-501 Pivot 13″ to 27″ LCD Wall-Mount Bracket – Max VESA 100mm x 100mm – Tilt -20° to +20° – Pan -30° to +30°
Features :-
- Tilt -20°~+20°
- Swivel -30°~+30°
- Hidden cable management channel
- Max VESA 100mm x 100mm
SPECIFICATIONS
| Recommended Screen Size | 13″ – 27″ |
|---|---|
| Rated Weight Capacity | 30kg |
| Material | Steel |
| Tilt | ±20° |
| Swivel | ±30° |
| Rotating | – |
| VESA Standard | 50 x 50 75 x 75 100 x 100 |
| Profile | 90mm |
| Bubble Level | – |
| Installation | Single Stud, Solid Wall |
| Dimensions (mm) | Wall Plate: 110 (h) x 65 (w) |
