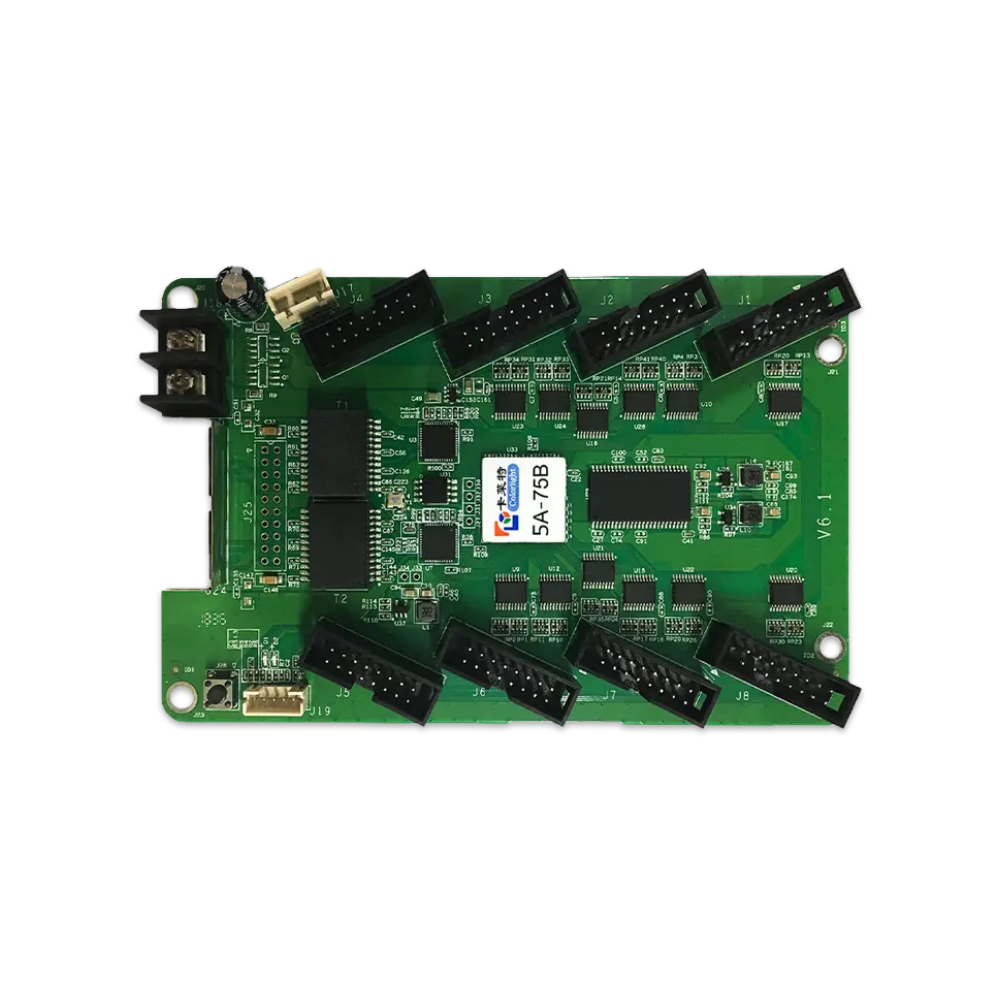

Colorlight 5A-75B
Colorlight 5A-75B LED Data Receiving Card – 1* LED Card Required Per LED Cabinet For LED Display
Colorlight 5A-75B LED Data Receiving Card – 1* LED Card Required Per LED Cabinet For LED Display
The Colorlight 5A-75B LED Receiver Card is an innovative LED display control card designed by Colorlight to provide customers with a cost-effective solution while ensuring high-quality display performance. This receiver card is specifically created to reduce points of failure and enhance overall reliability. It is capable of loading up to 192×1024 pixels and supports either 16 groups of parallel data or 32 groups of serial data. The 5A-75B receiver card integrates seamlessly with HUB75 interfaces, offering improved reliability and cost efficiency without compromising on display quality.
Key Features :-
- Integrated HUB75, more convenient and less costly.
- Reduce the plug connectors, reduce points of fault, and lower fault probability.
- Superior display quality: high refresh, high intensity, and high brightness with the conventional chips
- Superior compatibility: suitable for all types of the display module of mainstream products (5A = any row, any column, any scan, any chips, any drawn)
- The use of more advanced algorithms, so that the receiving card to maximize the use of resources in order to improve display quality
- Support for high-precision point-by-point correction in the Brightness and the color space
- Support for large area display
- Professional design and strict production testing to ensure high-quality and reliable
_1673919679.png)
Appearance
| S/N | Description |
| 1 | Power 1. Connect to a DC 3.8V~5.5V power supply for the receiving card, only use one of them. |
| 2 | Power 2. Connect to a DC 3.8V~5.5V power supply for the receiving card, only use one of them. |
| 3 | Network port A |
| 4 | Network port B |
| 5 | Power indicator light D1 Signal indicator D2 |
| 6 | Test button |
| 7 | External interface |
| 8 | HUB pins |
Dimensions
