D-Tech DH-HAC-HFW2501TU-Z-A-DP Pro Series 5MP Analogue HDCVI Starlight IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens - Dual-Voltage Support - Built-in Mic - Default Video Output 5MP HDCVI - Video Output Switchable to AHD / HDTVI / CVBS
D-Tech DH-HAC-HFW2501TU-Z-A-DP Pro Series 5MP Analogue HDCVI Starlight IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens - Dual-Voltage Support - Built-in Mic - Default Video Output 5MP HDCVI - Video Output Switchable to AHD / HDTVI / CVBS
, , ,

D-Tech DH-HAC-HFW2501TU-Z-A-DP

D-Tech DH-HAC-HFW2501TU-Z-A-DP Pro Series 5MP Analogue HDCVI Starlight IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens – Dual-Voltage Support – Built-in Mic – Default Video Output 5MP HDCVI – Video Output Switchable to AHD / HDTVI / CVBS

D-Tech Stock Clearance – Limited stock on  hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only

SKU: DH-HAC-HFW2501TU-Z-A-DP Categories: , , , Tags: , , , , , , , , , , , , , , ,
  • D-Tech DH-PFA130-E Aluminium Alloy Weatherproof Universal Junction Box - Round - WHITE Colour

    D-Tech DH-PFA130-E

    D-Tech DH-PFA130-E Aluminium Alloy Weatherproof Universal Junction Box - Round - WHITE Colour

  • D-Tech DH-PFA150-T SECC & SUS304 (Stainless Steel) Weatherproof Universal Fit Pole-Mount Bracket

    D-Tech DH-PFA150

    D-Tech DH-PFA150-T SECC & SUS304 (Stainless Steel) Weatherproof Universal Fit Pole-Mount Bracket

  • D-Tech DH-PFM800-4K 1-CH 4K Passive Video Balun for Analogue / HDCVI / HDTVI / AHD cameras - supplied as a pair

    D-Tech DH-PFM800-4K

    D-Tech DH-PFM800-4K 1-CH 4K Passive Video Balun for Analogue / HDCVI / HDTVI / AHD cameras - supplied as a pair

  • iSecure CC6101-T-M DC Plug / Power Connector with Push-Pin Terminals

    iSecure CC6101-T-M

    iSecure CC6101-T-M DC Plug / Power Connector with Push-Pin Terminals - 5.5 x 2.1mm

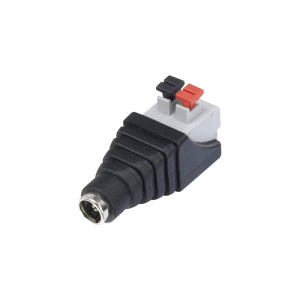

  • iSecure CC6101-T-F DC Socket - High-Quality Connector with Push Pin Terminals - 5.5 x 2.1mm

    iSecure CC6101-T-F

    iSecure CC6101-T-F DC Socket - High-Quality Connector with Push Pin Terminals - 5.5 x 2.1mm

This product is currently unavailable.

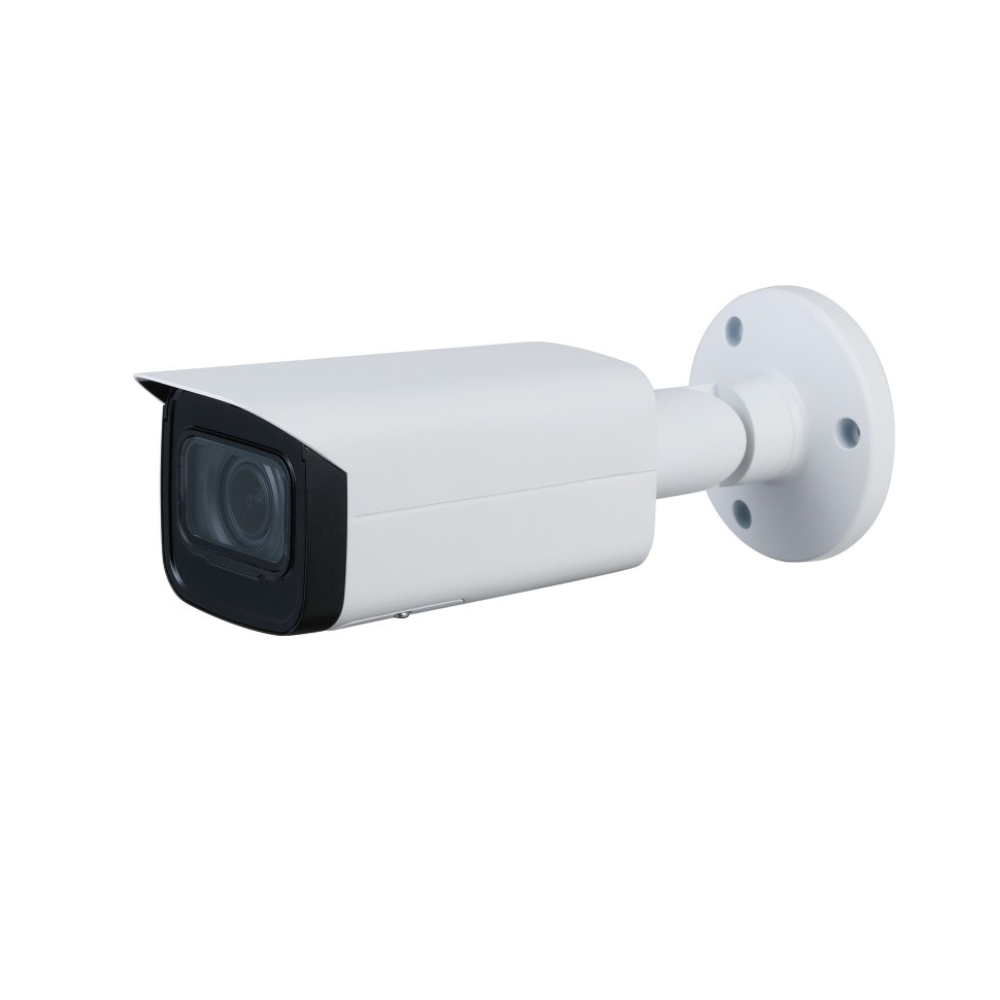

D-Tech DH-HAC-HFW2501TU-Z-A-DP Pro Series 5MP Analogue HDCVI Starlight IR (50m) 120dB True-WDR Weatherproof Bullet Camera with 2.7~13.5mm Motorized Zoom Lens – Dual-Voltage Support – Built-in Mic – Default Video Output 5MP HDCVI – Video Output Switchable to AHD / HDTVI / CVBS

Key Features:-

  • In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version
  • Max. 25 fps @ 5MP (16:9 video output)
  • Starlight, 120 dB true WDR, 3D NR
  • Built-in mic
  • 2.7 mm–13.5 mm motorized lens
  • Max. IR length 80m, Smart IR
  • IP67 weatherproof
  • Supports 24VAC / 12VDC power input
  • Default Video Output 5MP HDCVI – Video Output Switchable to AHD / HDTVI / CVBS
Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 4
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6
Field of View Horizontal: 31.4°–113°

Vertical: 17.6°–58°

Diagonal: 36°–138°
Iris Type Fixed iris
Close Focus Distance 0.8 m (2.6 ft)
DORI distance Lens Detect Observe Recognize Identify
2.7mm 64.0 m

(210.0 ft)

 25.6 m

(84.0 ft)

 12.8 m

(42.0 ft)

 6.4 m

(21.0 ft)
13.5mm 210.0 m

(689.0 ft)

 84.0 m

(275.6 ft)

 42.0 m

(137.8 ft)

 21.0 m

(68.9 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Frame Rate CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440);

1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Illumination Yes
Digital Zoom 4x
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN623681:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 24V AC±25%/12V DC±10%
Power Consumption Max. 12.5W (12V DC, IR on)
Environmental
Operating Temperature –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Storage Temperature –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions 244.1 mm × 90.4 mm × 90.4 mm

(9.61″ × 3.56″ × 3.56″)
Net Weight 0.79 kg (1.7 lb)
Gross Weight 1.07 kg (2.4 lb)
Weight 3.2 kg
Dimensions 40 × 31 × 6 cm
