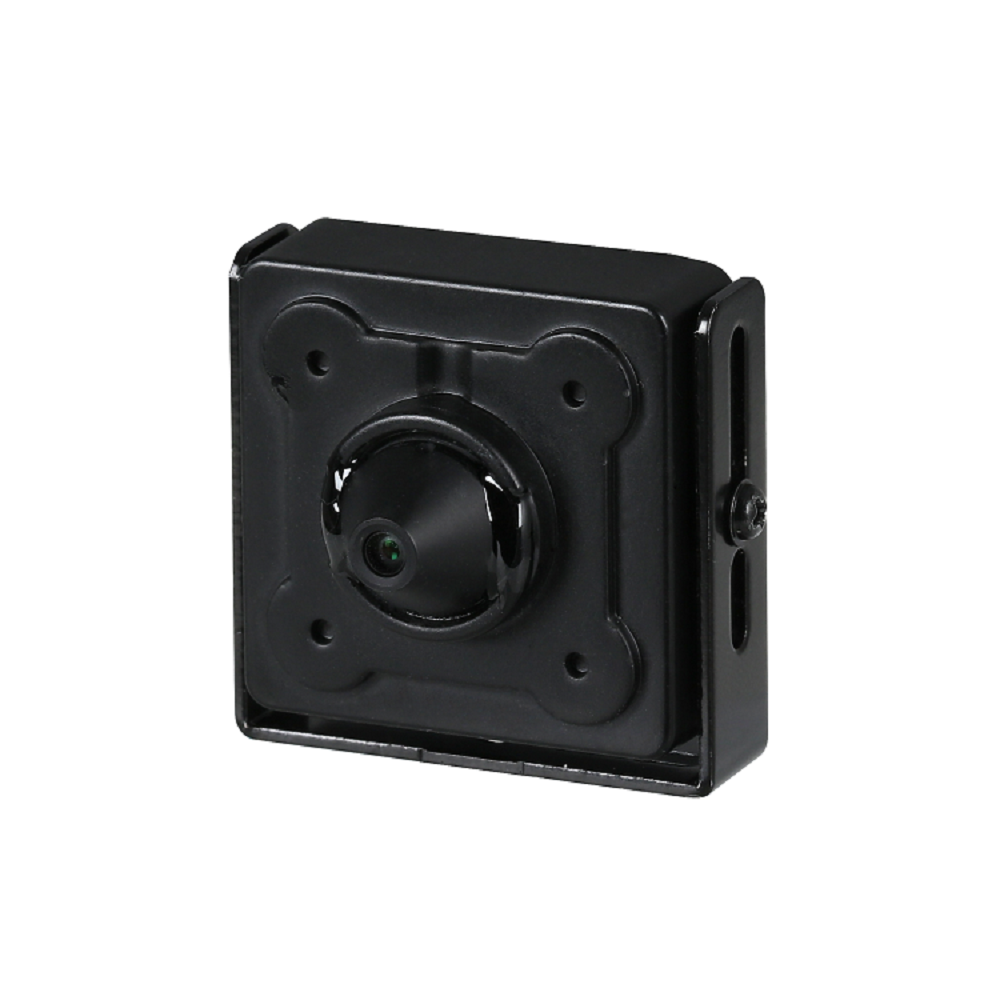

D-Tech DH-HAC-HUM3201BP-P-0280B
D-Tech DH-HAC-HUM3201BP-P-0280B 2MP 1080P Analogue HDCVI 120dB True-WDR Starlight (0.004 Lux Colour) Covert Pinhole Board Camera – with 2.8mm Fixed Lens – with Audio In Interface – 12VDC Powered – Default Video Output 2MP HDCVI – Video Output Switchable to HDTVI / AHD / CVBS
D-Tech Stock Clearance – Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
D-Tech DH-HAC-HUM3201BP-P-0280B 2MP 1080P Analogue HDCVI 120dB True-WDR Starlight (0.004 Lux Colour) Covert Pinhole Board Camera – with 2.8mm Fixed Lens – with Audio In Interface – 12VDC Powered – Default Video Output 2MP HDCVI – Video Output Switchable to HDTVI / AHD / CVBS
Key Features :-
- Starlight, 120dB true WDR, 3DNR
- Max 30fp @ 1080P
- HD and SD output switchable
- 2.8mm fixed lens
- Audio in interface
- 12VDC powered
- Default Video Output 2MP HDCVI – Video Output Switchable to HDTVI / AHD / CVBS
Camera
- Image Sensor: 1/2.8 inch CMOS
- Effective Pixels: 1920 (H) × 1080 (V), 2MP
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/3s–1/100000s; NTSC: 1/4s–1/100000s
- S/N Ratio: >65 dB
- Minimum Illumination: Color: 0.004LuxLux/F2.4; Black & White: 0.0004LuxLux/F2.4
Lens
- Lens Type: Fixed-focal
- Mount Type: M12
- Focal Length: 2.8 mm
- Max. Aperture: F2.4
- Angle of View: 117.9° × 103° × 59° (diagonal x horizontal x vertical)
- Iris Type: Fixed iris
- Close Focus Distance: 0.5 m (1.6 ft)
- DORI Distance: D: 42.1 m (138.1ft); O: 16.8 m (55.1 ft); R: 8.4 m (27.6 ft); I: 4.2 m (13.8 ft)
Video
- Frame Rate: CVI: PAL: 1080P@25fps, 720P@25/50fps; NTSC: 1080P@30fps, 720P@30/60fps <-> AHD: PAL: 1080P@25fps, 720P@25fps
NTSC: 1080P@30fps, 720P@30fps <-> TVI: PAL: 1080P@25fps, 720P@25ps; NTSC: 1080P@30fps, 720P@30ps <-> CVBS: PAL: 960 × 576H
NTSC: 960 × 480H - Resolution: 1080P (1920 × 1080); 720P (1280 × 720); 960H (704 × 576/704 × 480)
- Day/Night: Auto switch by ICR
- BLC: BLC / HLC / WDR
- WDR: 120 dB
- White Balance: Auto; manual
- Gain Control: Auto; manual
- Noise Reduction: 3D NR
- Smart IR: Yes
- Electronic Defog: Yes
- Digital Zoom: 4 ×
- Mirror: Off/On
- Privacy Masking: Off/On
Certifications
- Certifications: CE (EN55032, EN55024, EN50130-4,EN60950-1); FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014); UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input: One channel, RCA sound pick-up port
Power
- Power Supply: 12V ±30% DC
- Power Consumption: Max 2.11W
Environmental
- Operating Temperature: -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
- Storage Temperature: -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)
- Protection Grade: NA
Construction
- Casing: Metal throughout the whole casing
- Camera Dimensions: 43.5 mm × 36.2 mm × 29.5 mm (1.71″ × 1.43″ × 1.16″)
- Net Weight: 0.04 kg (0.09 lb)
- Gross Weight: 0.14 kg (0.31 lb)
