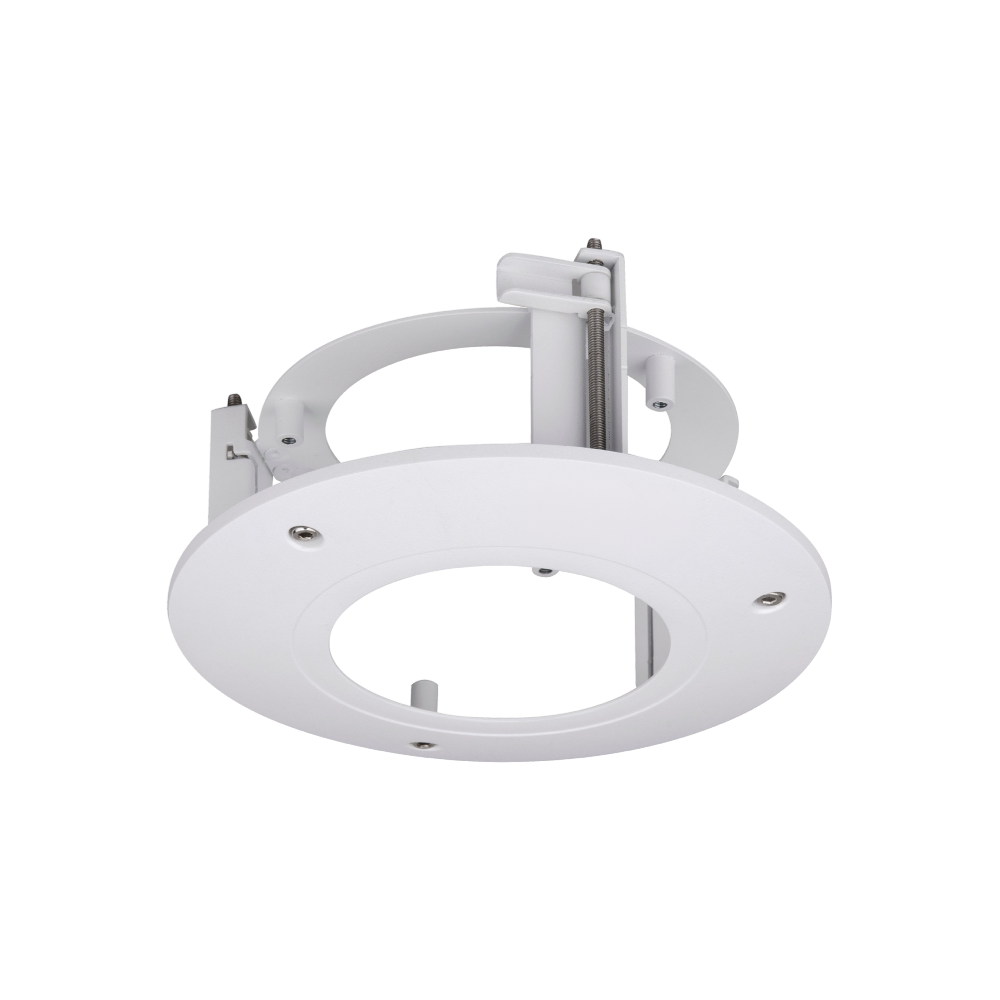

  • D-Tech DH-PFB200C In-ceiling (Flush) Mount Bracket - for Dome Cameras

    D-Tech DH-PFB200C

    D-Tech DH-PFB200C In-ceiling (Flush) Mount Bracket - for Dome Cameras

  • D-Tech DH-PFA150-T SECC & SUS304 (Stainless Steel) Weatherproof Universal Fit Pole-Mount Bracket

    D-Tech DH-PFA150

    D-Tech DH-PFA150-T SECC & SUS304 (Stainless Steel) Weatherproof Universal Fit Pole-Mount Bracket

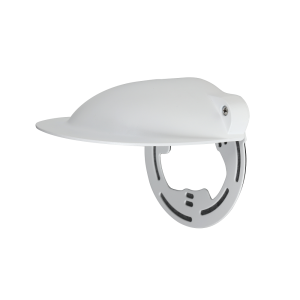

  • D-Tech DH-PFA200W Water-proof Rain-Shade / Rain-Cover for Dome Cameras

    D-Tech DH-PFA200W

    D-Tech DH-PFA200W Water-proof Rain-Shade / Rain-Cover for Dome Cameras

    Stock Clearance – Special pricing applicable to items in ITPLUS stock only

  • Samsung MB-MC256KA/CN Evo Plus Class 10 U3 160MB/s High-Speed Micro-SD Card - 256GB Storage

    Samsung MB-MC256SA/APC

    Samsung MB-MC256SA/APC Evo Plus Class 10 U3 160MB/s High-Speed Micro-SD Card - 256GB Storage

  • WI-Tek WI-POE51-24V 24W PoE Gigabit Injector; Output power up to 24W; For 24VDC PoE Devices (WAPs)

    WI-Tek WI-POE51-48V × 18

    Wi-Tek WI-POE51-48V 30W PoE+ 802.3at Gigabit Network Power over Ethernet (PoE) Injector; Output PoE+ power up to 30W (802.3at)

This product is currently unavailable.

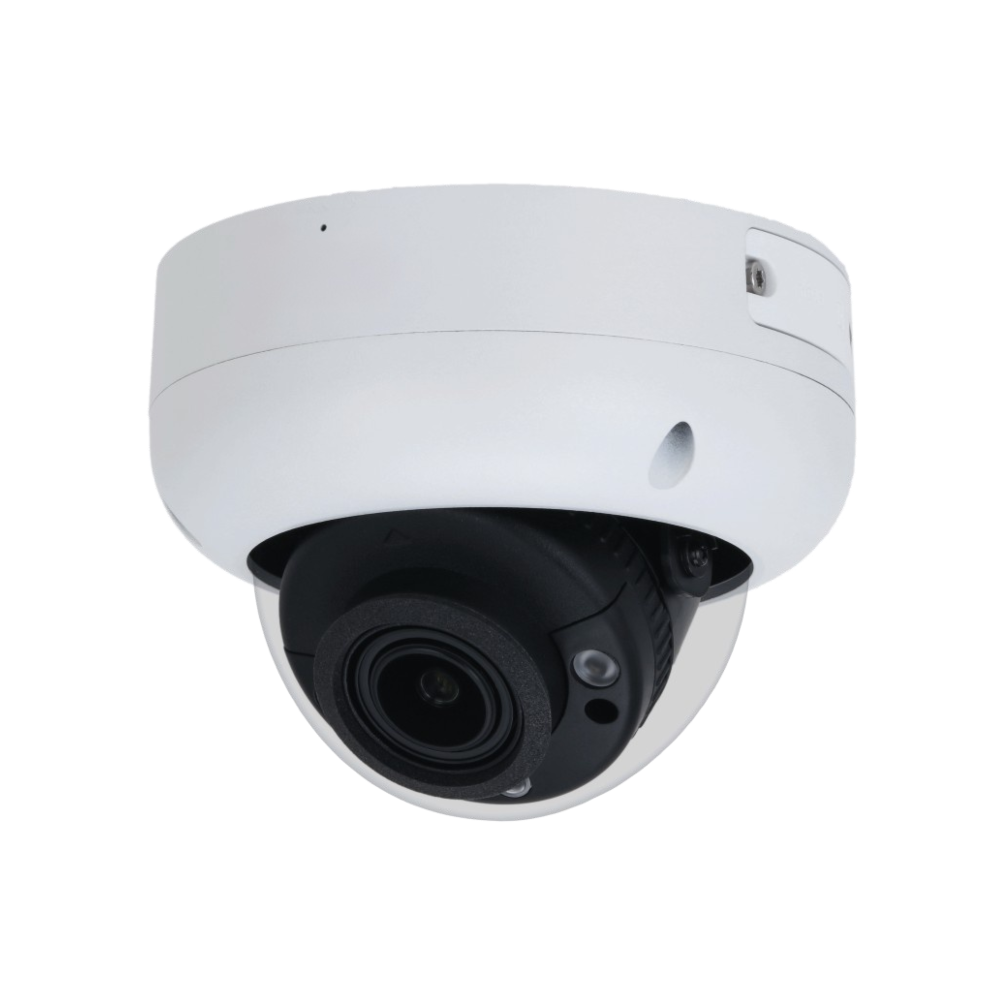

D-Tech DH-IPC-HDBW3866RP-ZAS-AUS WizSense AI (Artificial Intelligence) SSA SMD 4.0 H265 4K 8MP PoE IP Smart-IR (40m) 120dB True-WDR Starlight Weatherproof Vandalproof Dome Camera with 2.7-13.5mm Motorized Zoom Lens; with Built-in Audio Mic

Features :-

  • 8MP 1/2.8″ CMOS image sensor, excellent low luminance performance and high definition of images
  • Outputs max. 8MP (3840 x 2160) @ 25/30 fps
  • H.265 codec allows high compression ratio and ultra-low bit rate
  • Built-in IR LED, max. IR distance: 40m
  • ROI, SMART H.264 + / H.265+, AI H.264 / H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D-DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out (Only – AS supports); audio: 1 in, 1 out (Only – AS supports); max. 256 G Micro SD card. built-in Mic
  • 12VDC / PoE power supply, easy for installation
  • IP67, IK10 protection
  • SMD 4.0, AI SSA
Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 131° –35°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 88.3 m
(289.70 ft)		 35.3 m
(115.81 ft)		 17.7 m
(58.07 ft)		 8.8 m
(28.87 ft)
T 289.7 m
(950.46 ft)		 115.7 m
(379.60 ft)		 57.9 m
(189.96 ft)		 29.0 m
(95.14 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
AI Coding AI H.265
AI H.264
Video Frame Rate Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event -ZAS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

-ZS:

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port) (Only – ZAS supports)
Audio Output 1 channel (RCA port) (Only – ZAS supports)
Alarm Input 1 channel in: 5 mA 3–5 VDC (Only – ZAS supports)
Alarm Output 1 channel out: 300 mA 12 VDC (Only – ZAS supports)
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67; IK10
Structure
Casing Metal
Product Dimensions 94 mm × Φ122 mm (3.7″ × Φ4.8″)
Net Weight 713 g (1.57 lb)
Gross Weight 986 g (2.17lb)
