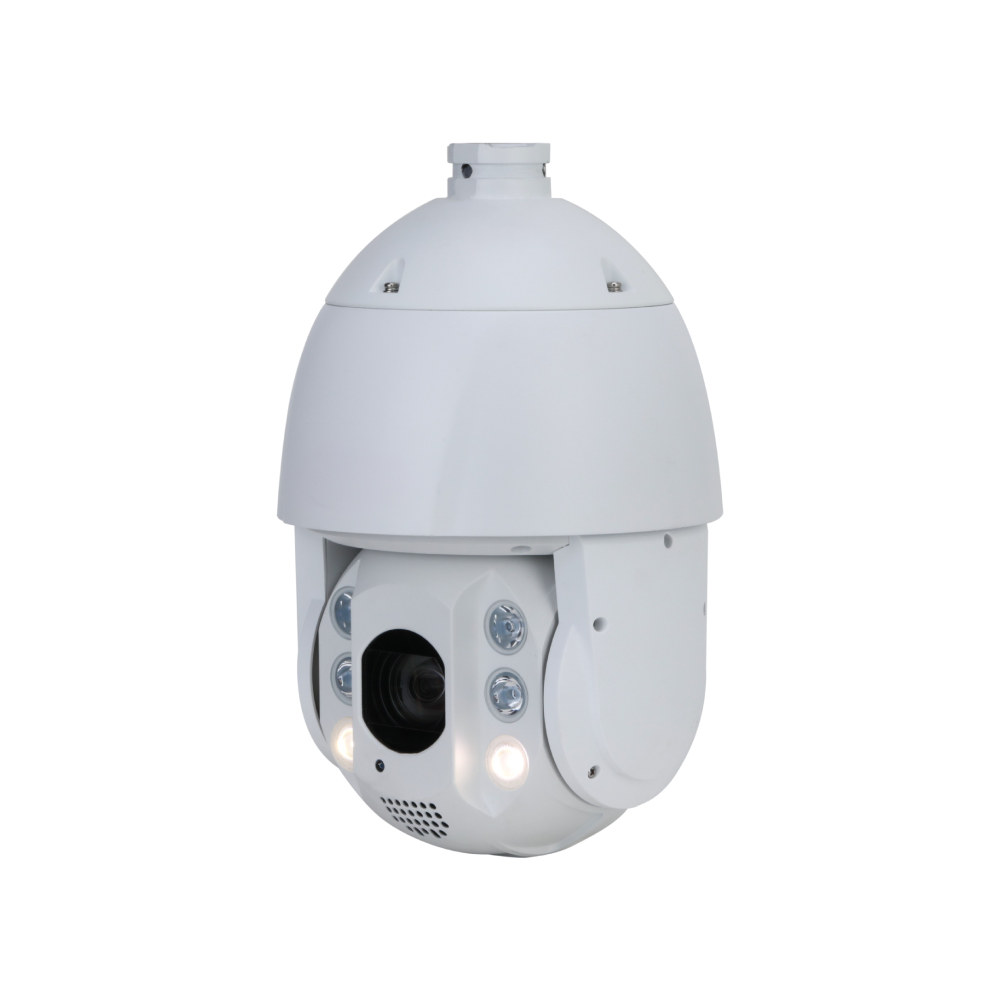

D-Tech DH-SD6C3432XB-HNR-AGQ-PV

Camera

• Image Sensor: 1/2.8″ CMOS
• Pixel: 4 MP
• Max. Resolution: 2560 (H) × 1440 (V)
• ROM: 4 GB
• RAM: 1 GB
• Electronic Shutter Speed: 1/1 s–1/30,000 s
• Scanning System: Progressive
• Min. Illumination: Color: 0.005 lux @ F1.6; B/W: 0.0005 lux @ F1.6; 0 lux (IR light on)
• Illumination Distance: 150 m (492.13 ft) (IR); 50 m (164.04 ft) (white light)
• Illuminator Number: 4 (IR) + 2 (white light)

Lens

• Focal Length: 4.8 mm–154 mm
• Max. Aperture: F1.6–F4.0
• Field of View: H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°
• Optical Zoom: 32×
• Focus Control: Auto; semi-auto; manual
• Close Focus Distance: 0.1 m–1.5 m (0.33-4.92)
• Iris Control: Auto

PTZ

• Pan/Tilt Range: Pan: 0° to 360° endless; Tilt: –20° to +90°, auto flip 180°
• Manual Control Speed: Pan: 0.1°/s–160°/s; Tilt: 0.1°/s–120°/s
• Preset Speed: Pan: 240°/s; Tilt: 150°/s
• Preset: 300
• Tour: 8 (up to 32 presets per tour)
• Pattern: 5
• Scan: 5
• Power-off Memory: Yes
• Idle Motion: Preset; Pattern; Tour; Scan

Smart Event

• IVS: Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking

Intelligence

• Smart Capture: Support human, motor vehicle and non-motor vehicle image capture.
• IVS (Perimeter Protection): Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
• Face Detection: Yes
• SMD Plus: Yes
• Auto Tracking: Yes

Active Deterrence

• Light Warning: White light warning; Flash duration: 5 s–30 s; Flash frequency: High, medium, low
• Sound Warning: Sound warning alarm: Customizable; Volume: High, middle, low; Alarm duration: 5 s–30 s

Video

• Video Compression: Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
• Streaming Capability: 3 streams
• Resolution: 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)
• Video Frame Rate: Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps); Sub stream 1: D1/CIF (1–25/30 fps); Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
• Bit Rate Control: CBR; VBR
• Video Bit Rate: H.264: 2816 kbps–8192 kbps; H.265: 1024 kbps–7936 kbps
• Day/Night: Auto (ICR); Color; B/W
• BLC: Yes
• WDR: 120 dB
• HLC: Yes
• White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
• Gain Control: Auto; Manual
• Noise Reduction: 2D NR; 3D NR
• Region of Interest (RoI): Yes
• Image Stabilization: EIS
• Defog: Electronic defog
• Digital Zoom: 16×
• Privacy Masking: Up to 24 areas can be set, with up to 8 areas in the same view
• S/N Ratio: ≥ 55 dB

Audio

• Audio Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Network

• Network Port: RJ-45 (10/100 Base-T)
• 4G-Wireless Frequency Range: LTE-FDD: B1/3/5/7/8/20; LTE-TDD: Band 38/40; WCDMA: Band 1/5/8; GSM: 850/900/1800 MHz
• Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS
• Interoperability: ONVIF Profile S&G&T; CGI; Dahua SDK; SDK; API
• User/Host: 20 (total bandwidth: 64 M)
• Storage: FTP; Micro SD card (256 GB); NAS
• Management Software: Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; NetSDK
• Mobile Client: iOS; Android; iPhone; iPad; Windows Phone

Certifications

• CE: EN55032/EN55024/EN50130-4
• FCC: Part15 subpartB, ANSI C63.4-2014

Port

• RS-485: 1 (baud rate: 1200 bps–9600 bps)
• Audio Input: 1 channel (LINE IN, bare wire)
• Audio Output: 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
• Alarm I/O: 2/1
• Audio I/O: 1/1
• Alarm Linkage: Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up
• Alarm Event: Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

• Power Supply: 12 VDC, 4 A (–10% to +25%)
• Power Consumption: Sleep: ≤ 1 W; Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G); Max.: 27 W (illuminator + heater + PTZ + speaker + pulling stream in 4G)

Environment

• Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
• Operating Humidity: ≤ 95%
• Protection: IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

• Casing: ADC12
• Product Dimensions: 325.0 mm × Φ202.0 mm (12.80″ × Φ7.95″)
• Net Weight: 4.4 kg (9.70 lb)
• Gross Weight: 6.4 kg (14.11 lb)
