D-Tech DHI-HY-SAV849HAP-E

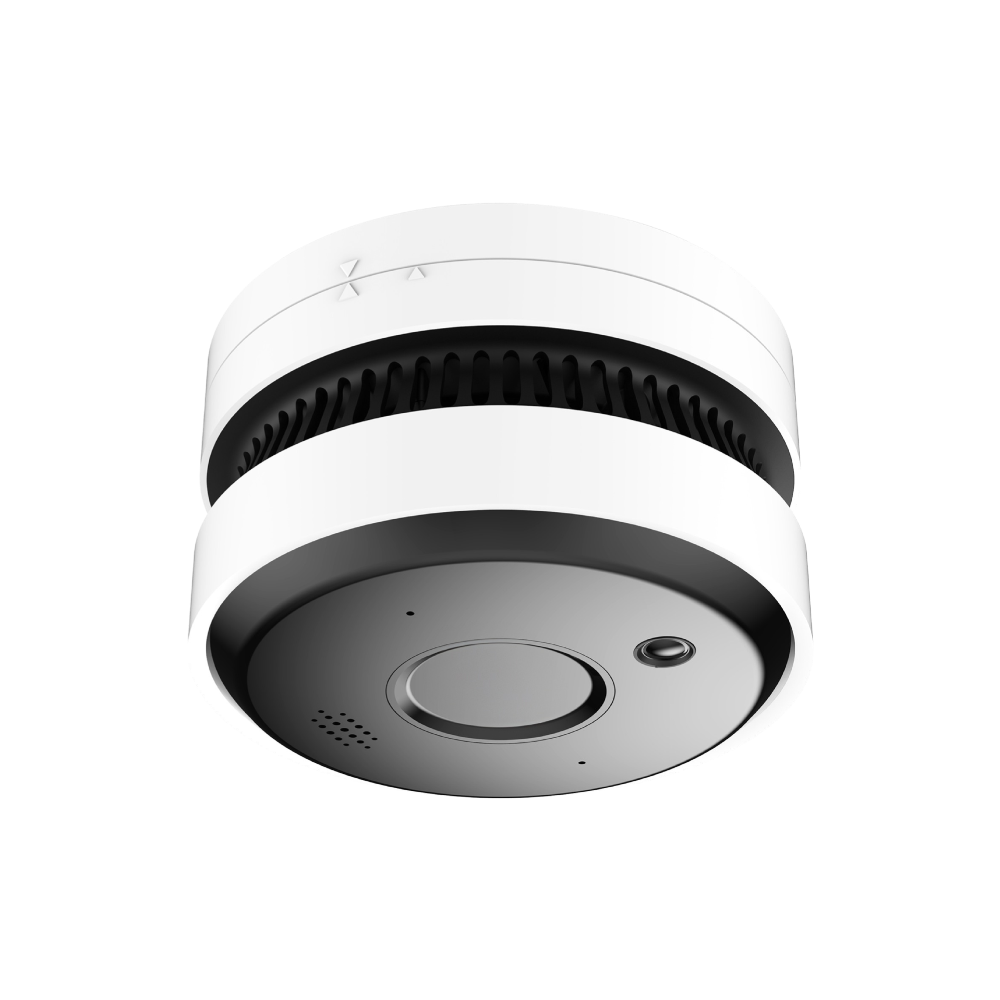

D-Tech DHI-HY-SAV849HAP-E Fire Alarm Series AI (Artificial Intelligence) H265 5MP PoE IP IR (20m) 90dB Real-WDR Indoor Flame Detection / Smoke Sensing Network Camera with 2mm Ultra Wide Angle Lens – Built-in Buzzer – Alarm in/Out – Audio In/Out – Built-in Mic + Speaker
D-Tech Stock Clearance – Limited stock on hand – First In First Serve – Special pricing applicable to items in ITPLUS stock only
D-Tech DHI-HY-SAV849HAP-E Fire Alarm Series AI (Artificial Intelligence) H265 5MP PoE IP IR (20m) 90dB Real-WDR Indoor Flame Detection / Smoke Sensing Network Camera with 2mm Ultra Wide Angle Lens – Built-in Buzzer – Alarm in/Out – Audio In/Out – Built-in Mic + Speaker
Features :-
- Remote check based on smoke sensing and video alarm linkage
- Intelligent monitoring: Flame detection
- With split-spectrum smoke chamber and intelligent algorithm, eliminate the false alarm effectively
- Ultra-low power consumption design allows 3-year operation of smoke sensing module with built-in battery
- Built-in high decibel buzzer, smoke alarm is over 80 dB at 3 meters
- Self-test and low battery warning
- Intelligent compensation algorithm relieves the impact of dust accumulation and environment changing on smoke sensing module
- Insect-proof and dust-proof design for smoke sensing module
- Built-in alarm voices, and user can import custom voices
- 5MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
- H.265 codec, high compression rate, ultra-low bit rate
- Flip mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- 2/2 Alarm in/out, 1/1 audio in/out; supports max. 256 GB Micro SD card; built-in Mic and speaker
- Flip mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- 12VDC / PoE power supply
- Built-in IR light; the max. IR LEDs Length is 20 m (65.62 ft)
Smoke Detector
- Indicators: Standby: Green indicator flashes once per minute; Fault: Red indicator flashes once per minute; Alarm: Red indicator flashes once per second; Self-testing: Red indicator flashes once per second
- Protection Area: 30 m2 – 60 m2
- Operating Principle: Photoelectric
- Alarm Method: Sound and LED Indicator
- Power: 12V DC/PoE and 3V lithium battery
- Operating Current: ≤ 30uA (Camera excluded); ≤ 300mA (Camera included)
- Back-up Battery Life: ＞ 3 years
- Alarm Classification: Smoke alarm, fault alarm, low battery alarm
- Alarm Sound Pressure: ≥ 80 dB (A) @ 3 m (9.84 ft)
Network Camera
- Appearance: Circular
- Image Sensor: 1/2.7″ CMOS
- Max. Resolution: 2592 (H) × 1944 (V)
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/3s~1/100000s
- Minimum Illumination: 0.007Lux (color); 0.003Lux (dark); 0Lux (IR)
- S/N Ratio: ＞ 56 dB
- Illumination Distance: Distance up to 20 m (65.62 ft)
- Illuminator Number: 2 (IR LED)
Lens
- Lens Type: Fixed-focal
- Mount Type: M8
- Focal Length: 2.0 mm
- Aperture: F2.0
- Field of View: Horizontal: 144°; Vertical: 92°; Diagonal: 179.6°
- Iris Control: Fixed
- Close Focus Distance: 0.2 m (0.66 ft)
Artificial Intelligence
- AI Event: Flame detection
Video
- Image Setting: Brightness; contrast; sharpness; saturation; gamma
- OSD: Channel/time/place/voltage of back-up battery
- Video: Manual record; external alarm; alarm video record; timing record
- Micro SD Card: Max. 256 GB
- Compression: H.265; H.264; H.264H; H.264B
- Smart Codec: Smart H.265+/ Smart H.264+
- Frame Rate: Main stream: 2592×1944 (1 fps-20 fps), 2688×1520 (1 fps–25/30 fps), 2560×1440 (1 fps–25/30 fps), 2304×1296 (1 fps–25/30 fps), 1920×1080 (1 fps–25/30 fps); Sub stream: D1 (1 fps–20 fps), D1 (1 fps–25/30 fps); Third stream: 1920×1080 (1 fps-17/24 fps)
- Video Bit Rate: H.264: 32 Kbps–10240 Kbps; H.265: 12 Kbps–7168 Kbps
- Day/Night: Auto (ICR)
- BLC: Yes
- HLC: Yes
- WDR: 90 dB
- White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
- Gain Control: Auto; manual
- Noise Reduction: 3D NR
- Default Frame Rate under Default Resolution: 2048 Kbps (2688 × 1520)
- Defog: Yes
- Image rotation, mirroring, flipping: Yes
- Privacy Masking: 8 areas
- Language: English; Traditional Chinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian; Vietnamese; Arabic; Spanish; Hebrew; Thai; Bahasa Indonesia
Audio
- Audio Interface: Yes
- Built-in MIC: Yes
- Built-in Speaker: Yes
- Audio Compression: PCM; G.711a; G.711Mu; G.726; AAC; G.723
- Audio Sampling Frequency: 8KHz/16KHz/32KHz/48KHz/64KHz
Alarm
- Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; smart motion detection; audio detection; flame detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarm
Network
- Communication: 1 RJ-45 PoE 10M/100M Ethernet ports
- Protocol: HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP
- Interoperability: ONVIF; Milestone; Genetec; CGI; PISA
- User: 10 channels at most
- Storage: FTP; SFTP; Micro SD card (256G); NAS
- Browser: IE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+
- Security: Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network access
Certification
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- FCC: 47 CFR FCC Part 15, Subpart B
Port
- Audio Input: 1 channel (RCA port)
- Audio Output: 1 channel (RCA port)
- Alarm Input Interface: 2 channels In: 5mA 5V DC
- Alarm Output Interface: 2 channels Out: 300mA 12V DC
- RS 485 Port: 1 channel
Electrical
- Operating Power: Adapter: 12V DC(±25%); PoE: 802.3af
- Power Supply: DC12V + PoE
- Power Consumption: Basic power consumption: 2.1W (12V DC); 2W (PoE); Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE)
Environmental
- Operating Temperature: –10°C to +55°C (+14°F to +131°F)
- Operating Humidity: 0%–95% RH (non-condensing)
Construction
- Casing: Plastic
- Product Dimensions: Φ120 mm × 79 mm (Φ4.72″ × 3.11″ )
- Package Dimensions: 164 mm × 153 mm × 111 mm (6.46″ × 6.02″ × 4.37″)(L × W × H)
- Net Weight: 442 g ( 0.98 lb)
- Gross Weight: 613 g ( 1.35 lb)
- Installation: Ceiling mount
- Power Adapter: Excluded
- Lens: Included
