Dynamix C-C6AF-SLDBLK

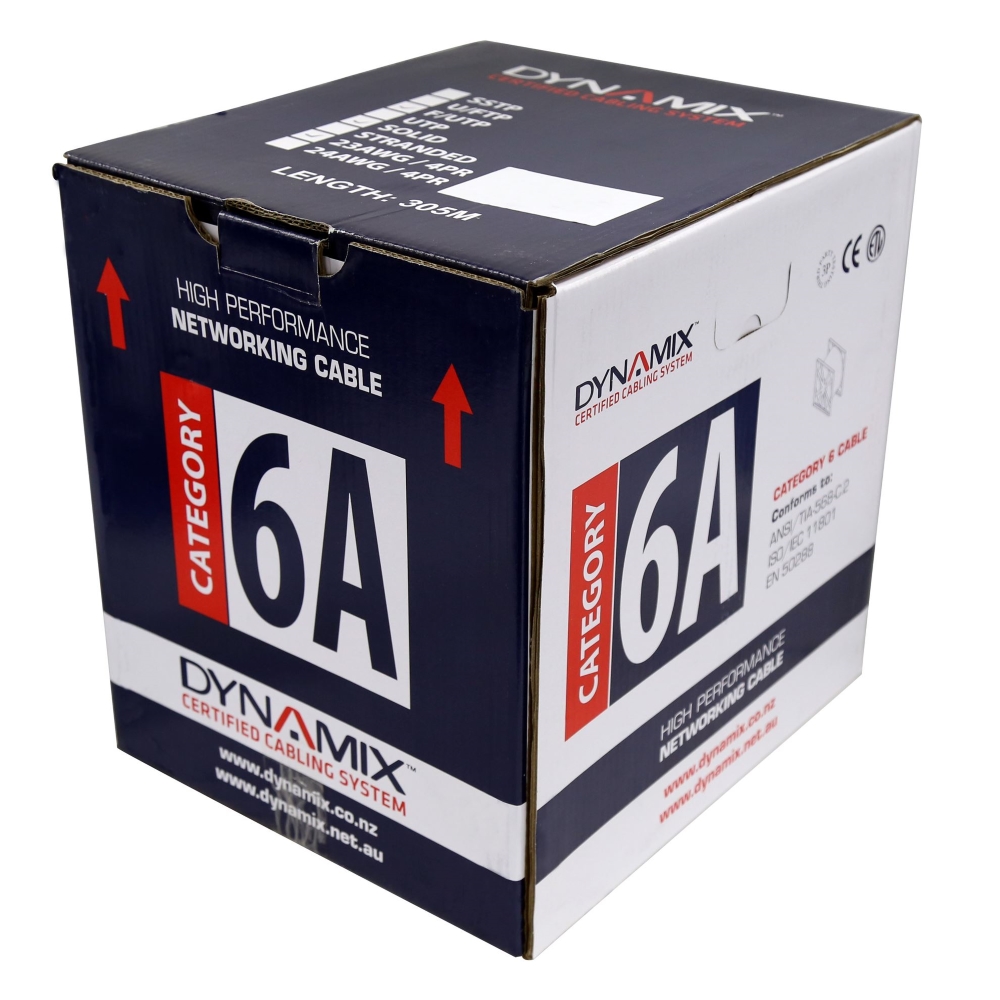

Dynamix C-C6AF-SLDBLK 305m CAT6A Black F/UTP Cable Roll – 500MHz – 23AWG – PVC Jacket – Supplied on Plastic Reel In The Box
Dynamix C-C6AF-SLDBLK 305m CAT6A Black F/UTP Cable Roll – 500MHz – 23AWG – PVC Jacket – Supplied on Plastic Reel In The Box
General Specifications :-
- Cable Type: Cat6A F/UTP (Foil over Twisted Pair)
- Length: 305 meters (1000 feet)
- Color: Black
- Conductor Material: SOLID Bare Copper
- Conductor Diameter: 0.565 +/- 0.005 mm
- Insulation Material: HDPE (High-Density Polyethylene)
- Insulation Diameter: 1.12 +/- 0.04 mm
- Sheath Material: CM Rated PVC (Complies with RoHS)
- Sheath Thickness: 0.60 +/- 0.05 mm
- External Diameter: 7.4 +/- 0.4 mm
- Frequency Support: 500MHz
- Conductor Gauge: 23AWG
- Supplied on Plastic Reel/Box: Provides convenient installation and storage
- Suitable for: Connecting devices in high-speed network setups
- Meets Standards: Complies with ANSI/TIA/EIA-568-B. 2 Category 6 standards
- Warranty: 60 months
• Cable Length: 305m
• Exterior Colour: Black
• Cable Type: CAT6A
• Connections: UnterminatedConductor
• Material: SOLID Bare Copper
• Nominal Outside Diameter: 0.565 +/- 0.005 mm
Insulation
• Material: HDPE
• Diameter: 1.12 +/- 0.04 mm
Colour
• A. White-Orange, Orange
• B. White-Green, Green
• C. White-Brown, Brown
• D. White-Blue, Blue
Sheath
• Thickness: 0.60 +/- 0.05 mm
• External Diameter: 7.4 +/- 0.4 mm
• Surface: Clean, Frap, Satiation
• Material: CM Rated PVC (Complies RoHS)
• Colour: Blue
• Before Aging: Tensile Strength > 10.0 Mpa / Elongation(%) > 125
• Aging Period (C x hrs): 100C x 24h x 7d
• After Aging: Tensile Strength > 8 Mpa / Elongation > 100%
• Cold Blend (-20 +/- 2C x4h): No visible cracks
Electrical Characteristics (at 20C)
• Velocity of Propagation: 74%
• 1.0-500.0MHz, Delay Skew:
