Cables & Accessories, CAT6A Cable
Dynamix C-C6AFL-SLDWHITE
Dynamix C-C6AFL-SLDWHITE 305m CAT6A White F/UTP Cable Roll – 500MHz – 23AWG – LSZH Jacket – Supplied on Plastic Reel In The Box
SKU: C-C6AFL-SLDWHITE
Categories: Cables & Accessories, CAT6A Cable
Tags: 305m, Cable, CAT6A, Dynamix, LSZH, Network, White

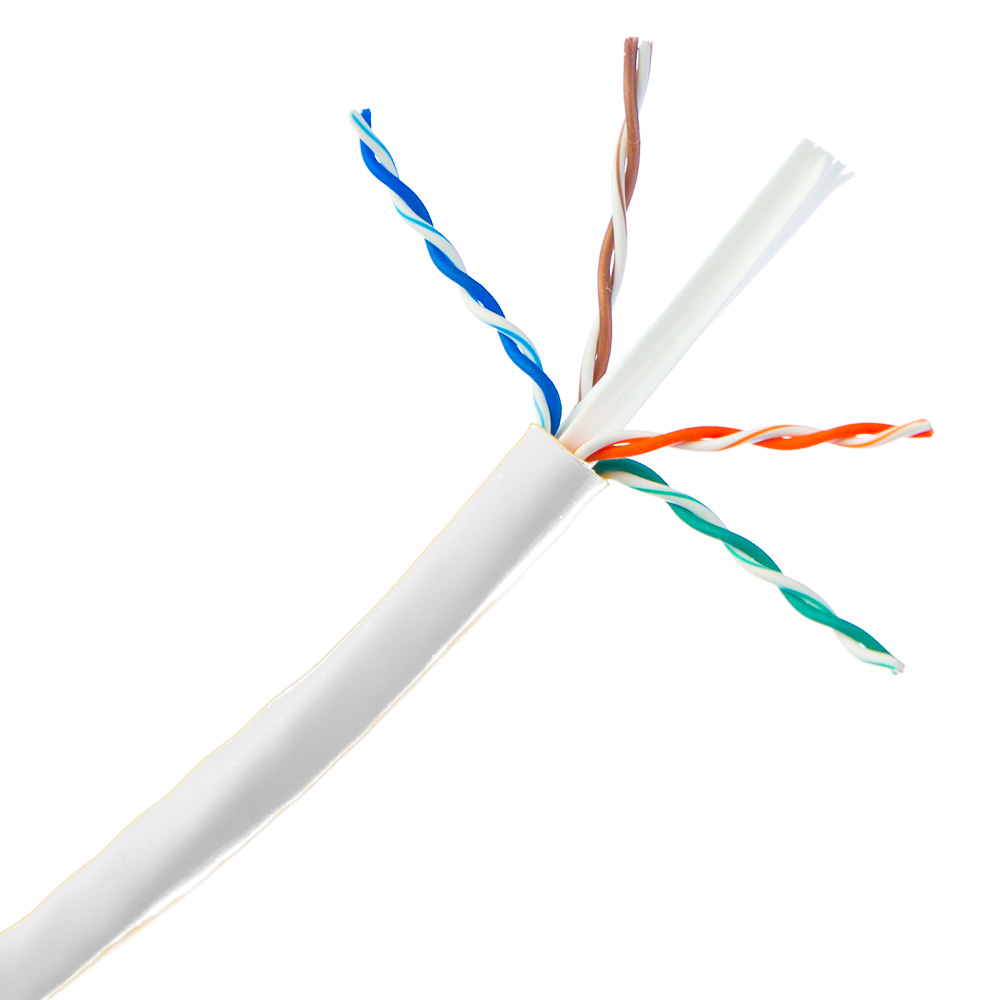

Dynamix C-C6AFL-SLDWHITE 305m CAT6A White F/UTP Cable Roll – 500MHz – 23AWG – LSZH Jacket – Supplied on Plastic Reel In The Box
General Specifications :-
- Cable Type: Cat6A F/UTP (Foil over Twisted Pair)
- Length: 305 meters (1000 feet)
- Color: White
- Conductor Material: SOLID Bare Copper
- Conductor Diameter: 0.565 +/- 0.005 mm
- Insulation Material: HDPE (High-Density Polyethylene)
- Insulation Diameter: 1.12 +/- 0.04 mm
- Sheath Material: CM Rated PVC (Complies with RoHS)
- Sheath Thickness: 0.60 +/- 0.05 mm
- External Diameter: 7.4 +/- 0.4 mm
- Frequency Support: 500MHz
- Conductor Gauge: 23AWG
- Supplied on Plastic Reel/Box: Provides convenient installation and storage
- Suitable for: Connecting devices in high-speed network setups
- Meets Standards: Complies with ANSI/TIA/EIA-568-B. 2 Category 6 standards
- Warranty: 60 months
