Dynamix PLK-C6A-20

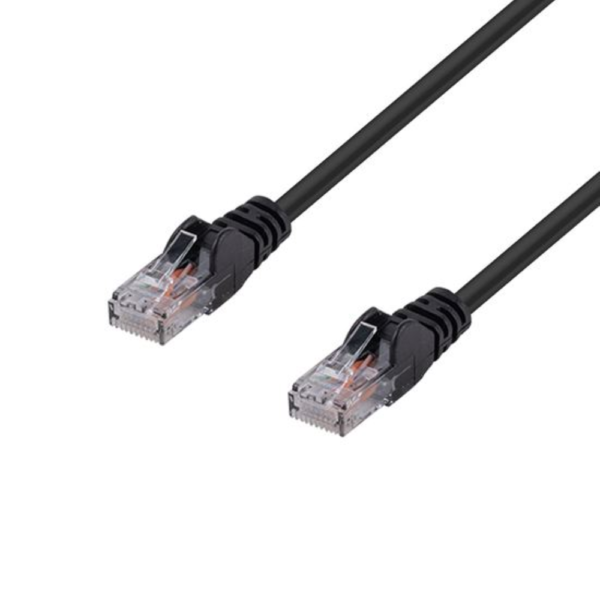

Dynamix PLK-C6A-20 20m CAT6 Black UTP Network Patch Lead – 250MHz – 24AWG – Slimline Snagless Moulding with Unshielded Gold Plate Connector
Dynamix PLK-C6A-20 20m CAT6 Black UTP Network Patch Lead – 250MHz – 24AWG – Slimline Snagless Moulding with Unshielded Gold Plate Connector
Key Features :-
- Produced by an ISO9001 and ISO14001 certified manufacturer
- 100% tested, performance verified by 3P, UL Listed
- Covered by a lifetime warranty
- Operating temperature range: -20°C~60°C
- RJ45 (8P8C) plug with 50 micro inch gold plated connectors
- 70P PVC moulded boots
- 20m cable length
- 250MHz CAT6 cable
DYNAMIX 20m Cat6 Black UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding with Unshielded Gold Plate Connector.
The DYNAMIX Cat6 UTP patch leads conform to the ANSI/TIA-568.2 specification. Patch leads are wired to the T568A pin-out specification. These DYNAMIX patch leads are made of premium quality, long-lasting materials. UTP 24AWG stranded conductors for flexibility. Bandwidth rating of up to 250MHz ensures compatibility with Ethernet 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 1000BASE-Tx, peer-to-peer, & any other applications that utilize networking cables including telephony, home automation and long-distance video transfer technologies like HDMI over Ethernet.
FEATURES:
- Produced by an ISO9001 and ISO14001 certified manufacturer
- 100% tested, performance verified by 3P, UL Listed
- Covered by a lifetime warranty
- Operating temperature range: -20°C~60°C
- RJ45 (8P8C) plug with 50 micro inch gold plated connectors
- 70P PVC moulded boots
- Available in 10 colours
APPLICATIONS:
- 10BASE-T, 100BASE-Tx, 1000BASE-T, 1000BASE-Tx Ethernet
- 100VG (Voice Grade), Any LAN (IEEE802.12), 155/622 Mbps ATM
- 250MHz Broadband Video
- Voice, ISDN
APPROVALS:
- 3P / ETL Certified ANSI/TIA-568.2-D Category 6 Testing Performance Requirements.
- UL/cUL Listed.
