Hikvision DS-1CP6U24-1U

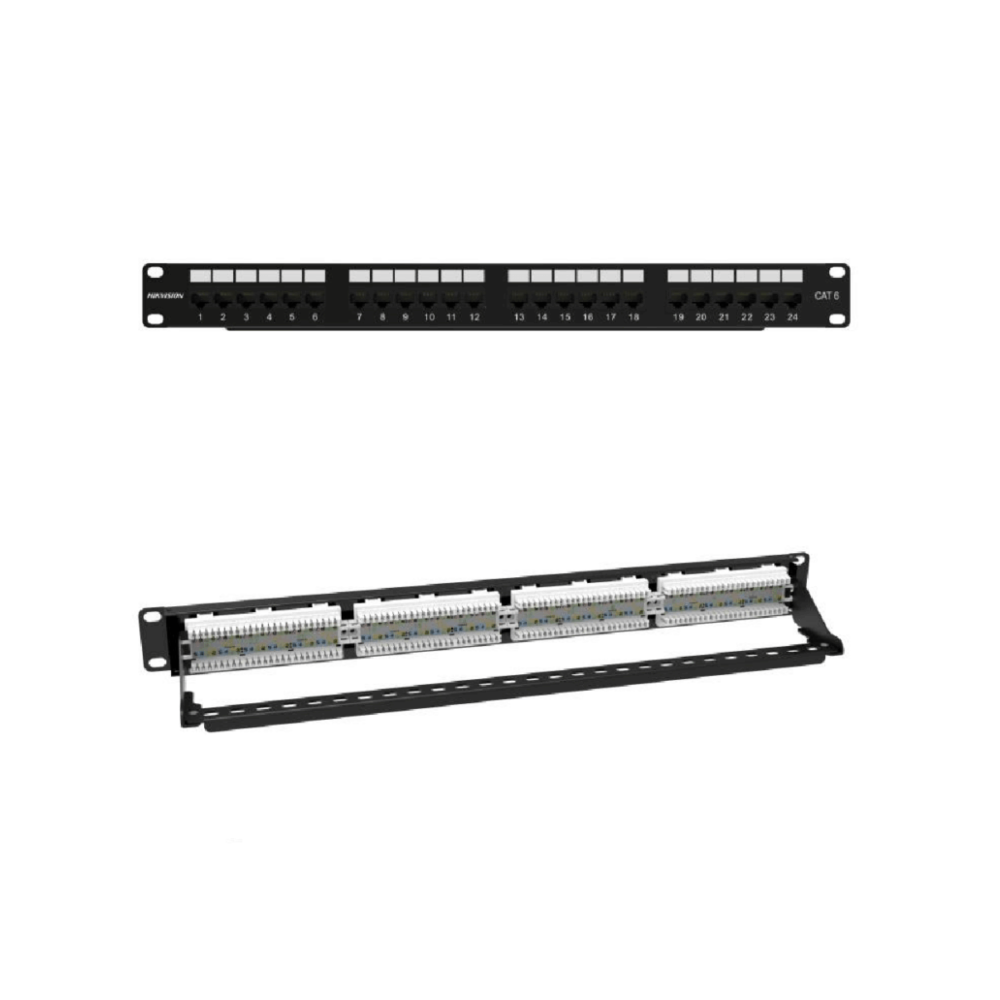

Hikvision DS-1CP6U24-1U Unshielded CAT6 24-Port Patch Panel
SKU: DS-1CP6U24-1U
Categories: Cables & Accessories, Cabling Accessories, Patch Panels
Tags: 24-port, Cabinet, Cable Management, Hikvision, Network Patch Panel, Rackmount
Hikvision DS-1CP6U24-1U Unshielded CAT6 24-Port Patch Panel
Key Features :-
- Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568.2-D Category 6.
- High performance, supports 250MHz data rates.
- Universal design and label supports both TIA 568 A & B wiring.
- Compatible with 22-24 AWG solid or stranded wires.
- Cable termination using 110 Block termination tool.
- Press-Fit design, without soldering tin, environmentally friendly
- Separate wire peak, easy for separating wires.
- Folding bracket, convenient installation, less packing space.
- White silk screen for easy mark.
- Wire sequence offered, easy for cabling.
- Special design, protect PCB board from damage during working.
- Forward extraction design from the cabinet, easy for installation and maintenance
- 1U height, standard structure, high compatibility, easy for working.
Category
- Product Category: Patch Panel
Fire resistance
- Fire resistance: UL 94 V-0
General Specifications
- Color: Black
- Conductor Type: Solid, Stranded
- Cable Type: Unshielded
- Rack Type: EIA 19 inch
- Rack Unit: 1
- ANSI/TIA Category: 6
- Termination Type: IDC
- Total Ports, quantity: 24
- Keystone quantity: 24
- Wiring: TIA 568A, TIA 568B
Material Specifications
- Material Type:
-
- Panel：Cold-Rolled Steel
- IDC：PC
- Pin: Phosphor Bronze
- Jack: PBT
-
- Termination Contact Plating: 50u inch gold
Electrical Characteristics
- DC resistance: ≤ 20 mΩ
- Current Rating: 1.5 A @ 20 °C
- Dielectric Withstand Voltage, RMS, conductive surface: 1,000 Vac @ 60 s
- Dielectric Withstand Voltage, RMS, contact-to-contact: 1,000 Vac @ 60 s
- Insulation Resistance, minimum: 500 MΩ
Mechanical Specifications
- Plug to Jack Mating Cycles: ≥ 750 times
Dimensions
- Height: 44.00 mm
- Width: 482.60 mm
- Depth: 31.72 mm
- Depth (with bracket): 92mm
- Compatible Conductor Gauge, solid: 22-24 AWG
- Compatible Conductor Gauge, stranded: 22-24 AWG
Environmental Specifications
- Operating Temperature: -10 °C to +60 °C
- Storage Temperature: -40 °C to +68 °C
- Relative Humidity: 10%~90%
Packaging and Weights
- Packaging Type: Box
- Weight: 830g
- Package dimension: 510 x 65 x 77 mm
- Packaging quantity: 1
Accessory
- Accessory
Cable Tie: 24 pcs
Screw & nut: 4 sets
Tool: 1 pcs
