Cables & Accessories, CAT6 Cable
Hikvision DS-1LN6-UE-W-White

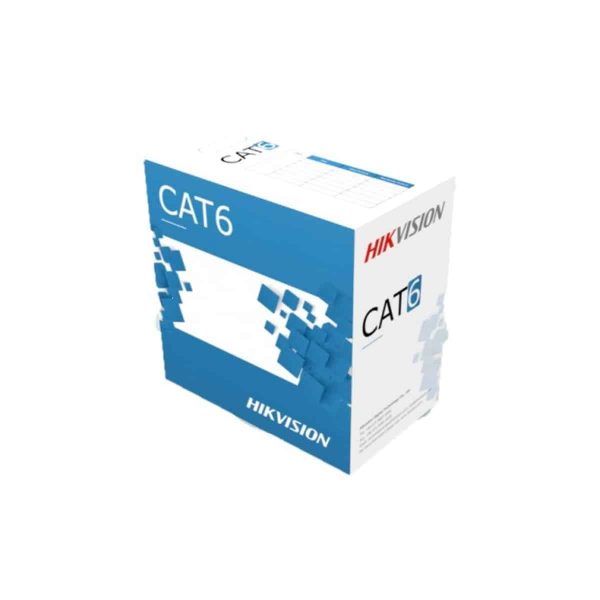

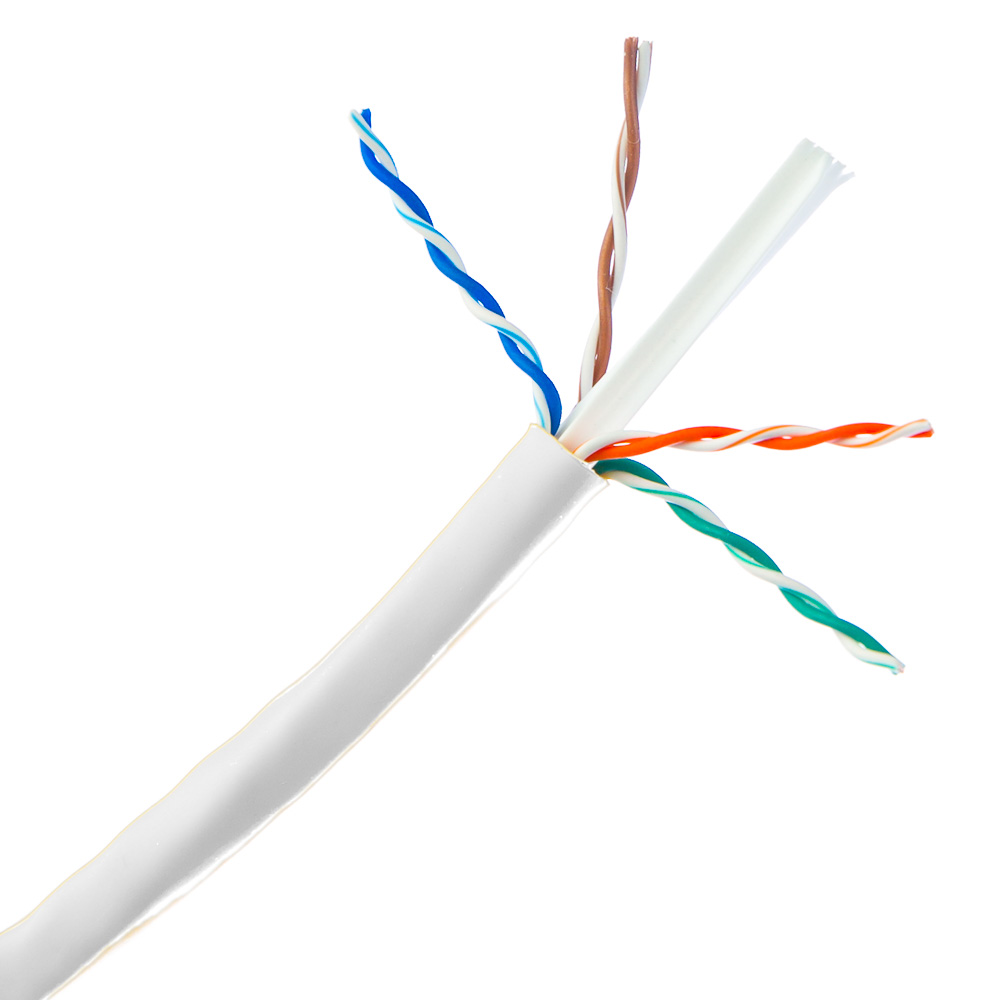

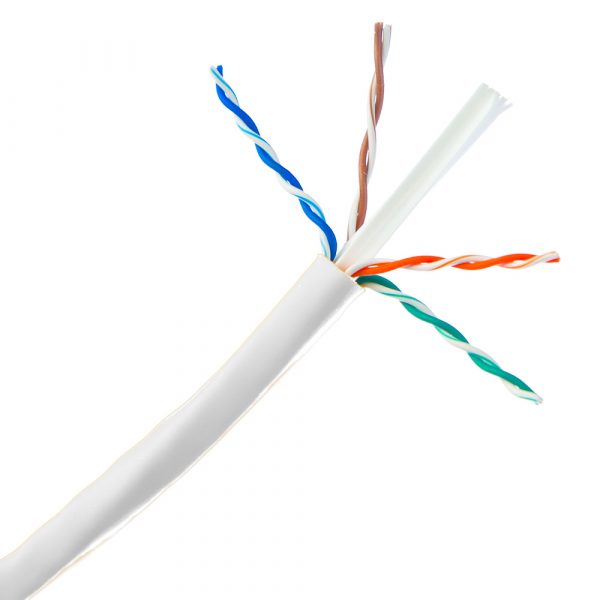

Hikvision DS-1LN6-UE-W-White 305m CAT6 UTP Network Cable Roll – WHITE Colour – 0.53mm 99.95% Oxygen-Free Solid Copper – 24AWG
SKU: DS-1LN6-UE-W-White
Categories: Cables & Accessories, CAT6 Cable
Tags: 305m, Cable, CAT6, Hikvision, Network, White
Hikvision DS-1LN6-UE-W-White 305m CAT6 UTP Network Cable Roll – WHITE Colour – 0.53mm 99.95% Oxygen-Free Solid Copper – 24AWG
Key Features :-
- Full diameter 305m CAT6 network cable
- Core diameter: 0.53mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance
General
- Core Color: 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
- Packing: Wooden Tray & Carton
- Carton Dimension: Per request
- Packing Length: 305±1.5m
- Rip-Cord: Yes
- Drain Wire: No
- Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d; After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
- Electrical Characteristics (20℃): 1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0
Conductor
- Material: SOLID-Bare Copper, Content 99.95%,
- Nom.O.D.(Mm): 0.530±0.005
Insulation
- Material: HDPE
- Diameter: 0.95±0.05mm
Sheath
- Thickness: 0.55±0.05 mm
- External O.D.: 5.8±0.4mm
- Surface: Clean, Frap, Satiation
- Material: PVC (complies RoHS), CM
- Color: White RAL9003
Surface Printing
- Letter Height: 3.0±0.3mm
- Color: Black
- Print Error & Space: ≤±0.5%，1m
