Hikvision DS-1M01

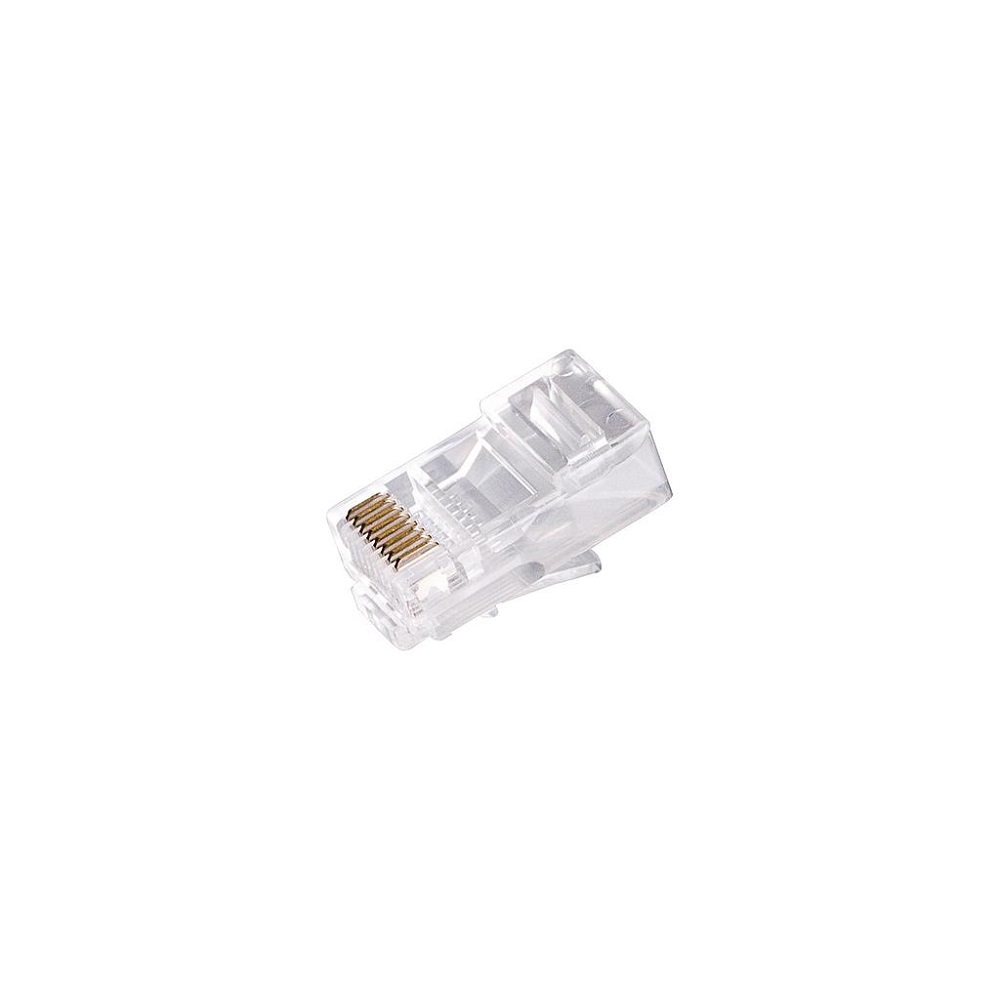

Hikvision DS-1M01 Single-Piece Network RJ45 Plug For CAT5E Cable – Supplied in 100Pcs / Box
Special pricing applicable to items in ITPLUS stock only
SKU: DS-1M01
Categories: Cables & Accessories, Cabling Accessories, Clearance, RJ45 Plugs, Special Offers
Tags: CAT5E, Hikvision
Hikvision DS-1M01 Single-Piece Network RJ45 Plug For CAT5E Cable – Supplied in 100Pcs / Box
Features :-
- 15u inch gold plated contacts
- Support 1000 Base-T Ethernet
- Compliant With ROHS Standard
- 8 pins × 8 conductors
DS-1M01
- MAX Current: 1.5A @25℃
- MAX Voltage: ≤150VAC
- Insulation Resistance: ≥1000MΩ @100V DC
- Withstand Voltage: 1KV AC RMS
- Contact Resistance: ≤20 mΩ
- Tensile Strength: 50N for 60s±5s
- Insert/Extraction Life: ≥750 cycles
- Operating Temperature: -25~55˚C
- Storage Temperature: -10～40˚C
- Relative Humidity: 80%
- Plug Housing: Polycarbonate, UL94V-2
- Conductor: Copper alloy + 15u inch gold plating
