Hikvision DS-1M02

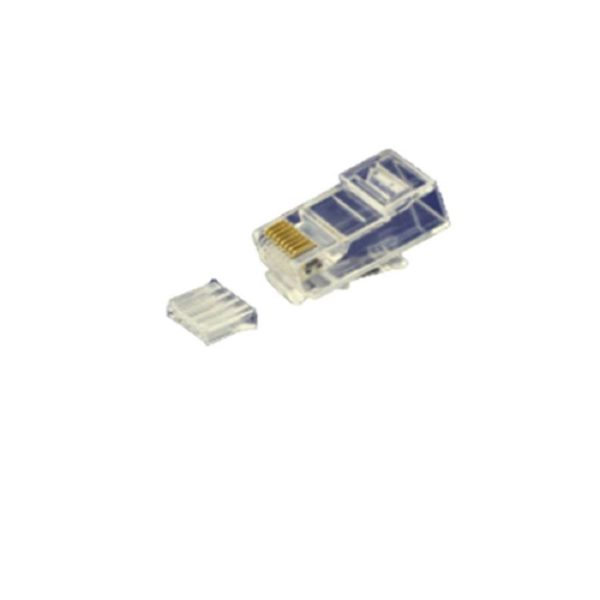

Hikvision DS-1M02 Network RJ45 Plug For CAT6 Cable – 2 Pieces for Each Plug – Easy Installation – Supplied in 100Pcs / Box
SKU: DS-1M02
Categories: Cables & Accessories, Cabling Accessories, RJ45 Plugs
Tags: CAT6, Hikvision
Hikvision DS-1M02 Network RJ45 Plug For CAT6 Cable – 2 Pieces for Each Plug – Easy Installation – Supplied in 100Pcs / Box
Features :-
- 15u inch gold plated contacts
- Support 1000 Base-T Ethernet
- Compliant With ROHS Standard
- 8 pins × 8 conductors
DS-1M02
- MAX Current: 1.5A @ 25℃
- MAX Voltage: ≤150VAC
- Insulation Resistance: ≥1000MΩ @100V DC
- Withstand Voltage: 1KV AC RMS
- Contact Resistance: ≤20 mΩ
- Tensile Strength: 50N for 60s±5s
- Insert/Extraction Life: ≥750 cycles
- Operating Temperature: -25~55˚C
- Storage Temperature: -10～40˚C
- Relative Humidity: 80%
- Plug Housing: Polycarbonate, UL94V-2
- Conductor: Copper alloy + 15u inch gold plating
