Name: Hikvision DS-2780ZJ-X(OS)(O-STD)/316L
SKU: DS-2780ZJ-X(OS)(O-STD)/316L

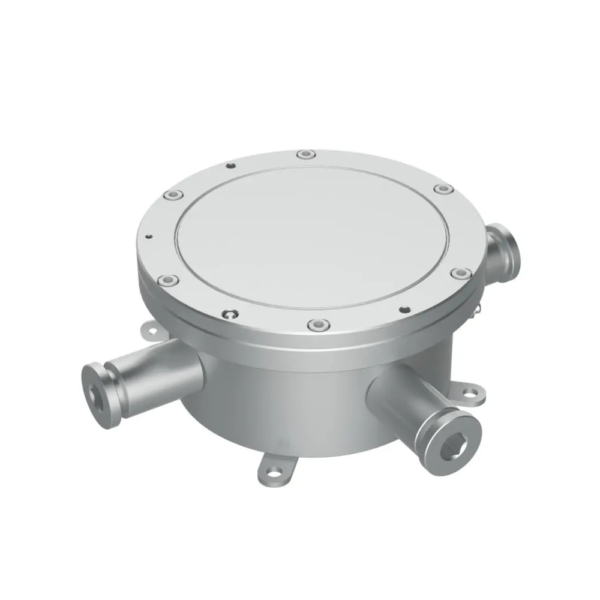

Hikvision DS-2780ZJ-X(OS)(O-STD)/316L IP68-Rated Weatherproof Explosionproof Stainless Steel (316L) Terminal Box

Stainless steel 316L with anti-corrosion surface spray treatment
Four cable outlets
ATEX and IECEx certified explosion-proof performance
Ingress protection, IP68
Note* – Indent item – only ordered in upon client’s order confirmation, could take up to 8 weeks from order confirmation

Weight: Approx. 6.4 kg (14.1 lb.)
Material: Stainless steel 316L
Dimension: 272 mm × 272 mm × 96.8 mm (10.7″ × 10.7″ × 3.8″)
Cable Outlet: 4 cable outlets, M25 × 1.5
Operating Conditions: -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)
Hazardous Area: Zone 1, Zone 2, Zone 21, and Zone 22
Ingress protection: IP68
Interface: 110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported)
Wire Gauge: No. 22 to No. 12 AWG, max. 3.294 mm2
Applicable Device: Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply
