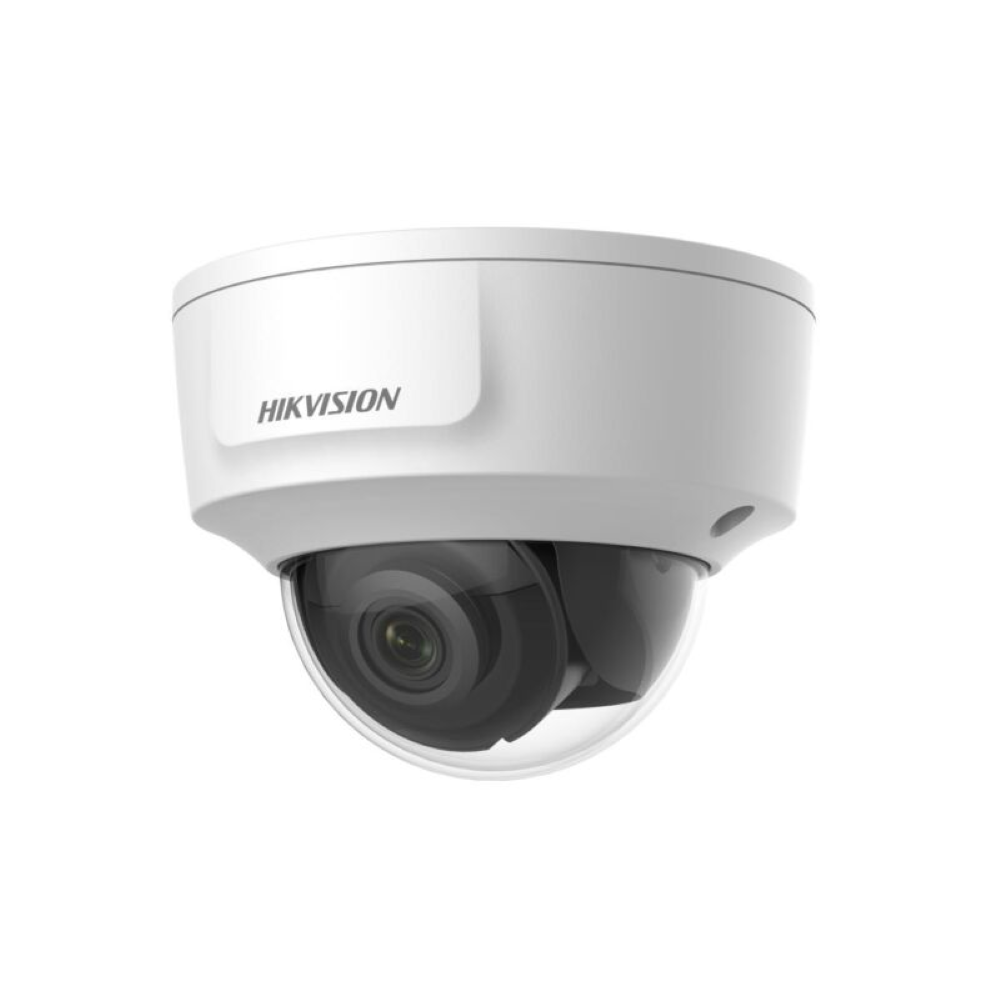

Hikvision DS-2CD2126G2-IMS-2.8MM
Hikvision DS-2CD2126G2-IMS-2.8MM AcuSense H265 2MP 1080P PoE IP EXIR (30m) 120dB True-WDR Low-light (0.002 Lux Colour) Weatherproof Vandalproof Dome Camera with 2.8mm Fixed Lens – Alarm Input / Output – 1080P HDMI Interface
SKU: DS-2CD2126G2-IMS-2.8MM
Categories: CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance
Tags: 1080P, 120dB True-WDR, 2MP, AcuSense, AI, Alarm, Artificial Intelligence, Camera, Dome Camera, Fixed Lens, H265, HDMI, Hikvision, Human Detection, IP Camera, Network Camera, PoE, Vandalproof, Vehicle Detection, Weatherproof
Hikvision DS-2CD2126G2-IMS-2.8MM AcuSense H265 2MP 1080P PoE IP EXIR (30m) 120dB True-WDR Low-light (0.002 Lux Colour) Weatherproof Vandalproof Dome Camera with 2.8mm Fixed Lens – Alarm Input / Output – 1080P HDMI Interface
Key Features :-
- 1/2.8″ CMOS progressive scan
- Max. 2MP resolution – 1920 x 1080 pixels
- Direct Full-HD (1080P) live view with HDMI output
- Lens: 2.8mm fixed focal
- Video compression: H.265+, H.265, H.264+, H.264
- IR range: up to 30m
- Memory slot: supports microSD/SDHC/SDXC, up to 512GB
- Power supply: 12 VDC, PoE (802.3af, class 3)
- Dimensions: 119mm x 90mm
- Excellent low-light performance with powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- IP67 and IK10 rated
Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Max. Resolution: 1920 x 1080
- Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Lens Type: Fixed focal lens, 2.8mm
- Focal Length & FOV: 2.8 mm, horizontal FOV: 106°, vertical FOV: 52°, diagonal FOV: 129°
- Lens Mount: M12
- Iris Type; Fixed
- Aperture: F1.6
DORI
- DORI: 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) – *Third stream is supported under certain settings.
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 – *Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
- Target Cropping: Yes
Audio
- Audio Type: mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G, Profile T)
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet Interface: 1x RJ45 10/100Mbps self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512GB
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Smart Event: Scene change detection
- Linkage: Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture; trigger alarm output, audible warning
Deep Learning Function
- Face Capture: Yes
General
- Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W, reverse polarity protection,Ø5.5 mm coaxial power plug, or two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
-
Dimension: Ø119 mm × 90 mm (Ø4.7″ × 3.5″)
- Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ ×5.6″)
- Weight: Approx. 440g
- With Package Weight: Approx. 720 g
- Storage Conditions: -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
