Hikvision DS-2CD2166G2-ISU-4MM

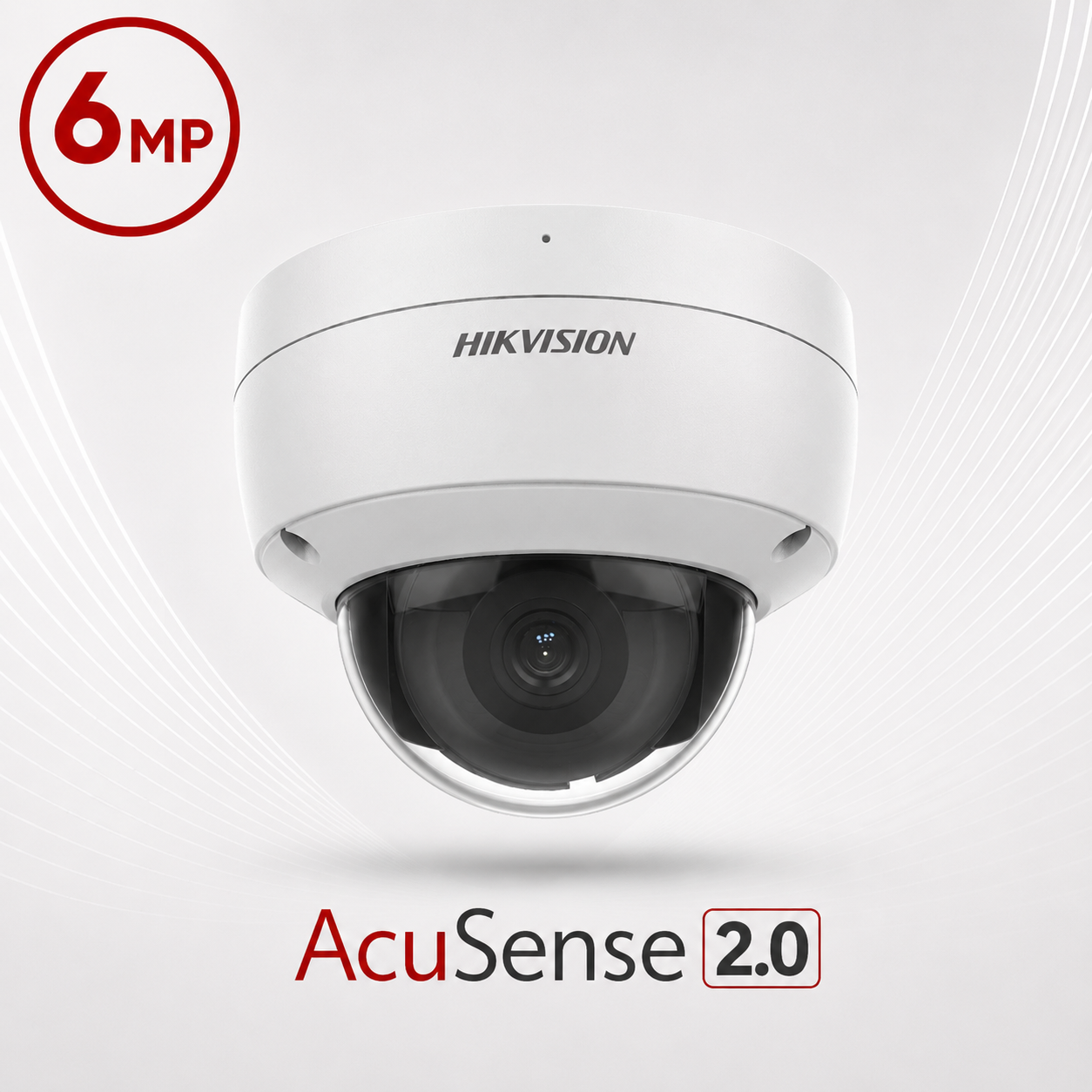

Hikvision DS-2CD2166G2-ISU-4MM AcuSense Generation 2 AI (Artificial Intelligence) Darkfighter-Powered H265 6MP PoE IP EXIR (30m) 120dB True-WDR Low-light (0.003 Lux Colour) Weatherproof Vandalproof Dome Camera with 4mm Fixed Lens – With Built-in Audio Mic – Alarm Input / Output
SKU: DS-2CD2166G2-ISU-4MM
Categories: CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance
Tags: 120dB True-WDR, 6MP, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, Dome Camera, Fixed Lens, H265, Hikvision, Human Detection, IP Camera, Network Camera, Perimeter Protection, PoE, Vandalproof, Vehicle Detection, Weatherproof
Hikvision DS-2CD2166G2-ISU-4MM AcuSense Generation 2 AI (Artificial Intelligence) Darkfighter-Powered H265 6MP PoE IP EXIR (30m) 120dB True-WDR Low-light (0.003 Lux Colour) Weatherproof Vandalproof Dome Camera with 4mm Fixed Lens – With Built-in Audio Mic – Alarm Input / Output
Key Features :-
- 1/2.4″ CMOS progressive scan
- Max. 6MP resolution – 3200 x 1800 pixels
- Lens: 2.8mm fixed focal
- Video compression: H.265+, H.265, H.264+, H.264
- IR range: up to 30m
- Memory slot: supports microSD/SDHC/SDXC, up to 256GB
- Power supply: 12 VDC, PoE (802.3af, class 3)
- Dimensions: 121.4mm x 92.2mm
- Excellent low-light performance with powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security
- Audio and alarm interface available
- IP67 and IK10 rated
- Note* – With narrow angle support, good for medium to high mount installations OR for surveillance which doesn’t require too wide angle coverage
Camera
- Image Sensor: 1/2.4″ Progressive Scan CMOS
- Max. Resolution: 3200 × 1800
- Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°; 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°
- Lens Mount: M12
- Iris Type; Fixed
- Aperture: F1.6
DORI
- DORI: 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m; 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
- Target Cropping: Yes
Audio
- Audio Type: -U: mono sound
- Audio Compression: -U: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
- Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC)
- Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: -U: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
Interface
- Ethernet Interface: 1x RJ45 10/100Mbps self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Built-In Microphone: -U: Yes
- Audio: -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Alarm: -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception; -S model also supports: alarm input and output
- Smart Event: Scene change detection
- Linkage: Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture; -S: trigger alarm output, audible warning
Deep Learning Function
- Face Capture: Yes
General
- Power: 12VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
- Dimension: Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.6″)
- Package Dimension: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ ×5.6″)
- Weight: Approx. 550g (1.2 lb.)
- With Package Weight: Approx. 800 g (1.8 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
