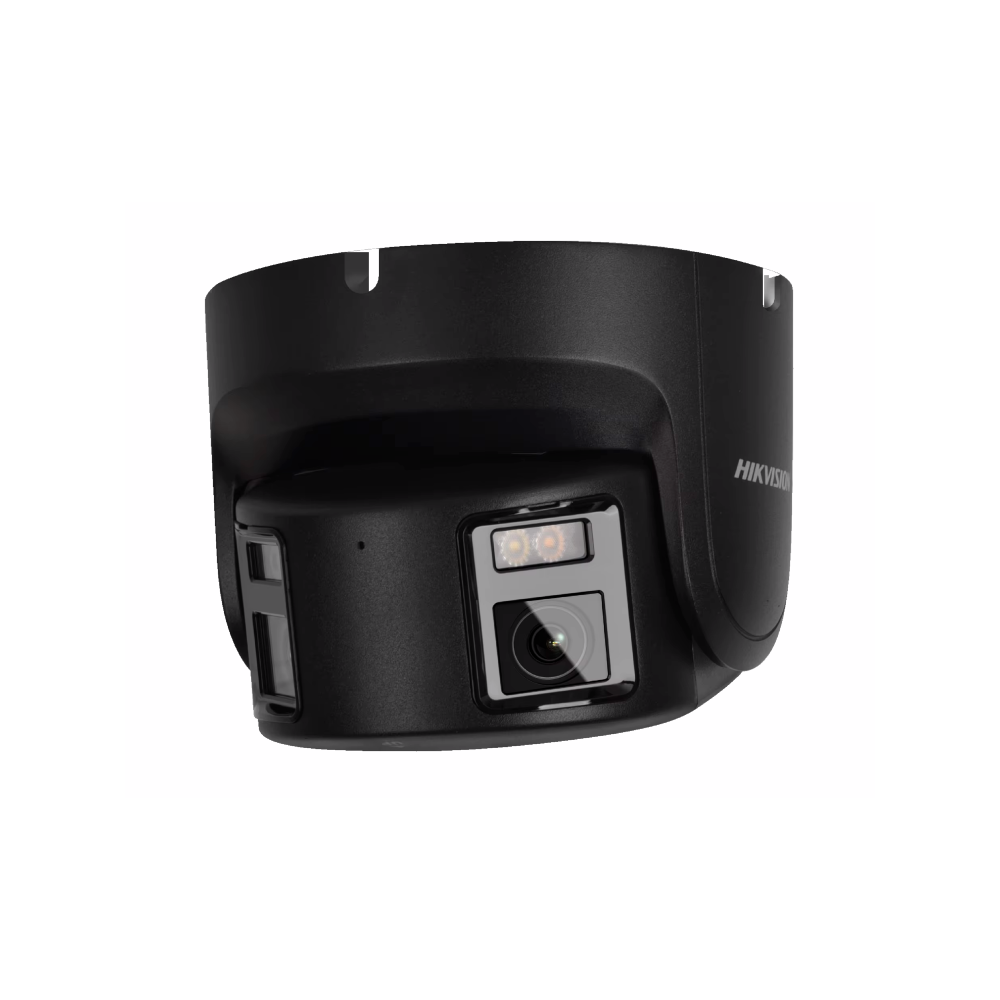

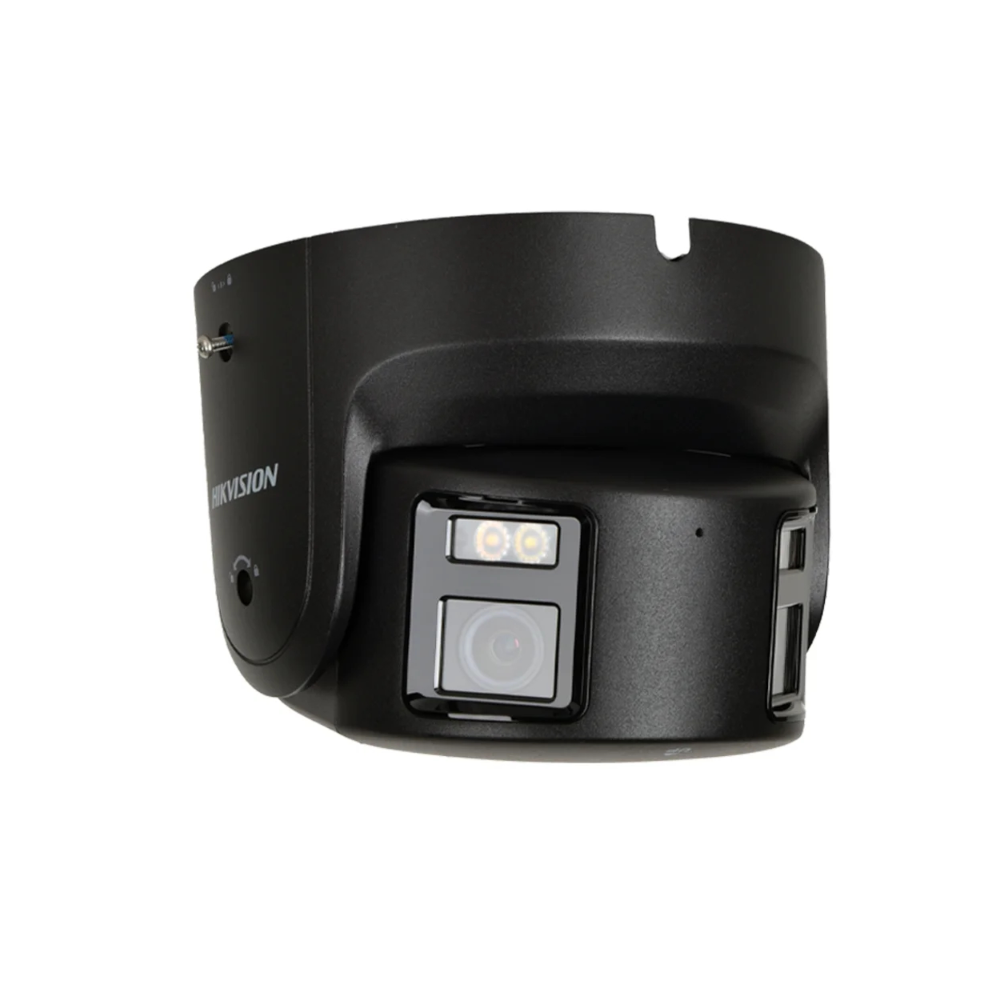

Hikvision DS-2CD2387G2P-LSU/SL-BLK
Hikvision DS-2CD2387G2P-LSU/SL-BLK Pro-series Panoramic Dual-Sensor ColorVu AcuSense Gen 2 Deep-Learning AI (Artificial Intelligence) H265 4K 8MP PoE IP White-Light (30m) 130dB True-WDR Active-Deterrence Weatherproof BLACK Eyeball Turret Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
SKU: DS-2CD2387G2P-LSU/SL-BLK
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 130dB True-WDR, 180 Degree, 2-Way Audio, 4K Resolution, 8MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, Black, Built-in Mic, Camera, ColorVu, Deep Learning, Dual-Lens Camera, Dual-Sensor Camera, Eyeball Camera, Full Colour, H265, Hikvision, Human Detection, IP Camera, Live-Guard, Network Camera, Panoramic, Perimeter Protection, PoE, Siren, Smart Dual Light, Speaker, Strobe, Turret Camera, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2CD2387G2P-LSU/SL-BLK Pro-series Panoramic Dual-Sensor ColorVu AcuSense Gen 2 Deep-Learning AI (Artificial Intelligence) H265 4K 8MP PoE IP White-Light (30m) 130dB True-WDR Active-Deterrence Weatherproof BLACK Eyeball Turret Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
Key Features :-
- ColorVu technology provides vivid and colorful images 24/7 in even low light
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Scalable Video Coding (SVC) for H.264 and H.265 encoding
- Two-axis angle adjustment (±30° horizontal pivot, ±75° vertical pivot)
- 130 dB wide dynamic range
- Analytics include; motion detection (supports human and vehicle target types), alarm input and output, flashing alarm light output, audible alarm output, exception, line crossing detection, intrusion detection, region Entrance detection, region exiting detection, and scene change detection
- Reset key Alarm input and output
- Built-in speaker and microphone Audio input and output Environment noise filtering
Camera
- Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°
Lens
- Lens Type: Fixed focal lens, Dual lens: 4 mm
- Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field: 3.6 m to ∞
DORI
- DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
Video
- Main Stream:-
-
- When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) : 60 Hz: 15 fps (5120 × 1440)
- When WDR is Off: 50 Hz: 20 fps (5120 × 1440): 60 Hz: 20 fps (5120 × 1440)
- Sub-Stream:-
-
- When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272); 60 Hz: 15 fps (1920 × 536, 960 × 272)
- When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272); 60 Hz: 20 fps (1920 × 536, 960 × 272)
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region(s) for main stream
Audio
- Audio Type: Mono sound
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz /16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSocket
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256 GB
- Built-In Microphone: Yes
- Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
- Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
General
- Power: 12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
- Material: Base: metal, cover: metal
- Dimension: Ø155 mm × 155.3 mm (Ø6.1 × 6.1″)”
- Package Dimension: 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
- Weight: Approx. 1110 g (2.4 lb.)
- With Package Weight: Approx. 1900 g (4.2 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
- Flashing Light: Yes
Approval
- EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
