CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance

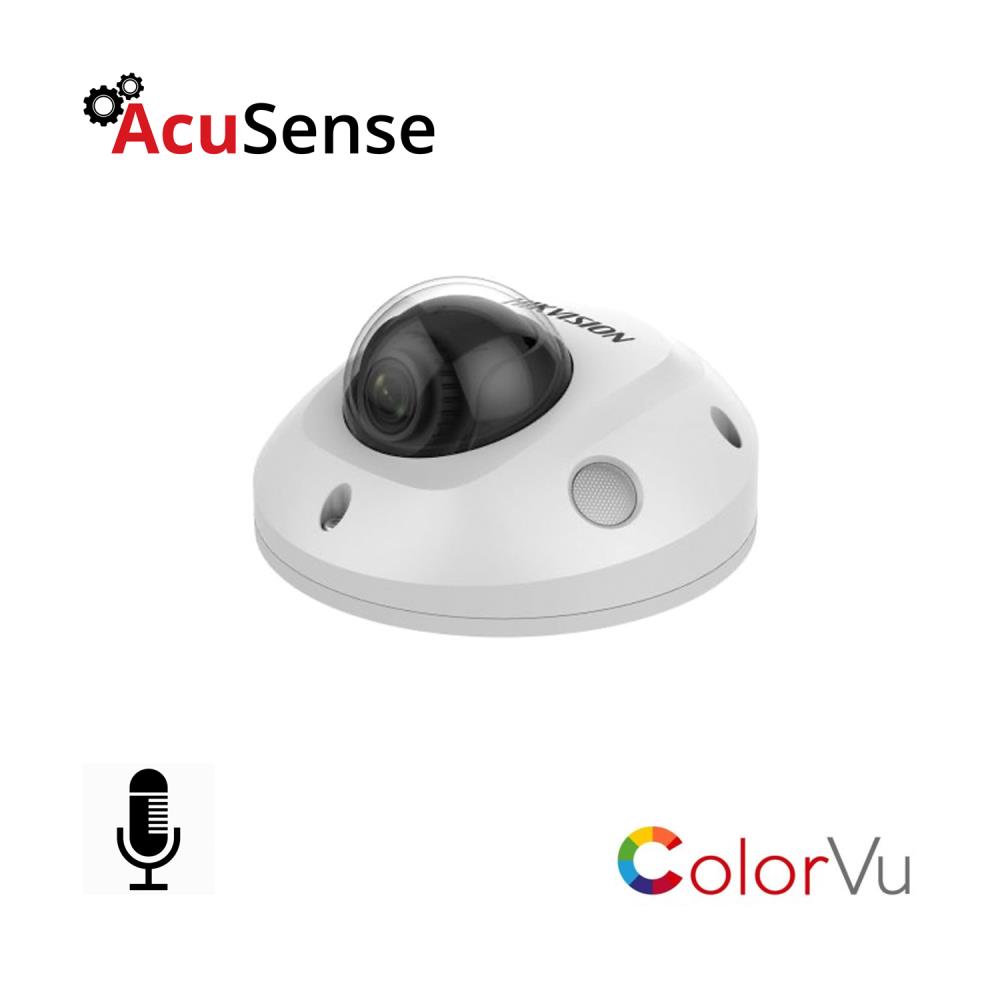

Hikvision DS-2CD2547G2-LS-2.8MM
Hikvision DS-2CD2547G2-LS-2.8MM ColorVu H265 4MP PoE IP Warm-White-Light (30m) 130dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Vandalproof Weatherproof Mini Dome Wedge / Hockeypuck Camera with 2.8mm Fixed Lens – with Built-in Mic – Alarm Int/Out
SKU: DS-2CD2547G2-LS-2.8MM
Categories: CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance
Tags: 130dB True-WDR, 4MP, AcuSense, Alarm, Built-in Mic, Camera, ColorVu, Dome Camera, Fixed Lens, Full Colour, H265, Hikvision, Hockeypuck, Human Detection, IP Camera, Network Camera, Vandalproof, Vehicle Detection, Weatherproof, Wedge, White Light LED
Hikvision DS-2CD2547G2-LS-2.8MM ColorVu H265 4MP PoE IP Warm-White-Light (30m) 130dB True-WDR Ultra-Low-Light (0.0005 Lux Colour) Vandalproof Weatherproof Mini Dome Wedge / Hockeypuck Camera with 2.8mm Fixed Lens – with Built-in Mic – Alarm Int/Out
Key Features :-
- 4MP high resolution
- 2.8mm fixed lens
- Full time colour
- Triple stream
- H.265 compression
- 4 analytics
- Face Capture
- Smart motion detection
- IP67 weatherproof
- 130dB wide dynamic range
- Built in microphone
- Supports on board storage (up to 256GB)
- 12V DC & PoE (802.3af)
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Shutter Speed: 1/3 s to 1/100,000 s
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Day & Night: 24/7 Color imaging
- Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°; 4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field: 28 mm: 2.3 m to ∞ 4mm: 3.2 m to ∞
DORI
- Detect: 58 m
- Observe 23 m
- Recognize: 11 m
- Identify: 6 m
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
Video
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR): 130 dB
- SNR: ≥ 52 dB
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone: Yes
- Audio: -LS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: -LS: 1 input, 1 output (max. 12 VDC, 20 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Scene change detection
Deep Learning Function
- Face Capture: Yes
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 W; PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
- Camera Material: Base: aluminum, cover: plastic
- Camera Dimension: Ø113.6 mm × 72.6 mm (Ø 4.5″ × 2.9″)
- Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Camera Weight: Approx. 400 g (0.9 lb.)
- With Package Weight: Approx. 635 g (1.4 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017); LOA (IEC/EN 60950-1); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Electrical Safety Protection: IP67 (IEC 60529-2013); IK8 (IEC 62262:2002)
