CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance

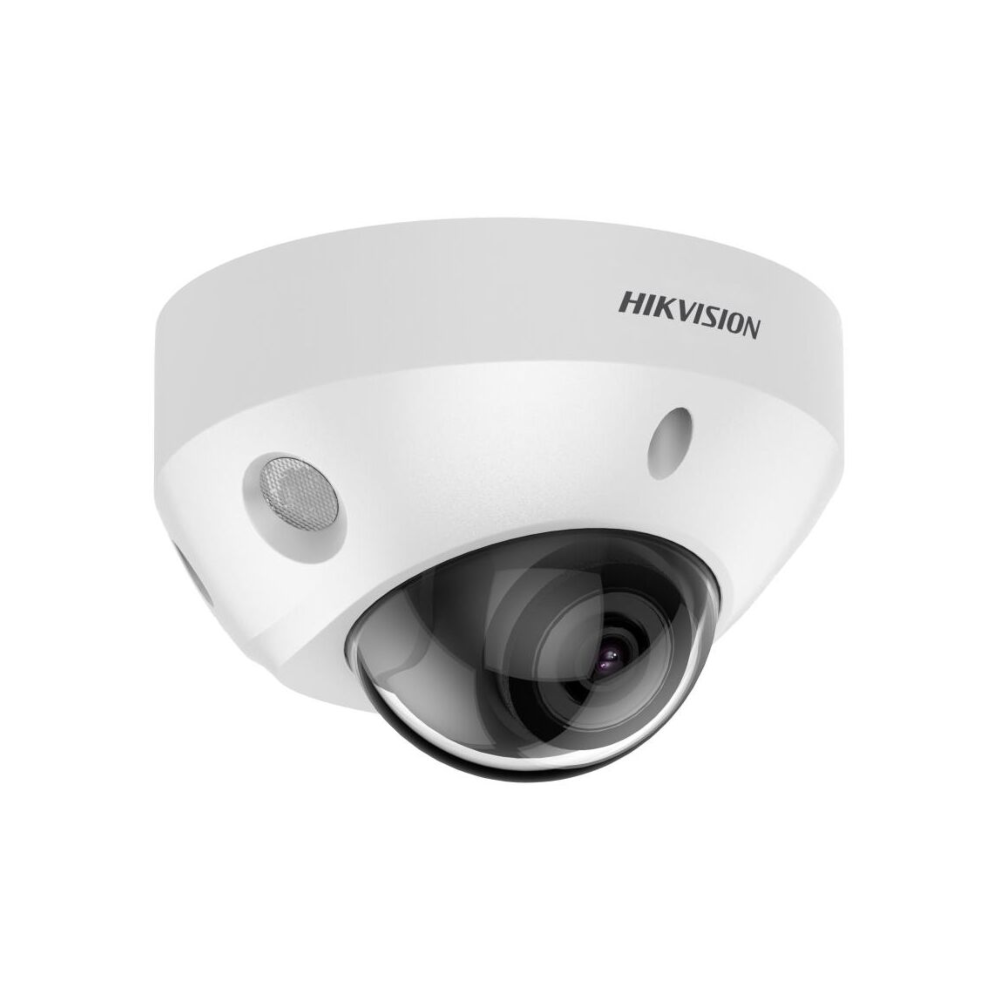

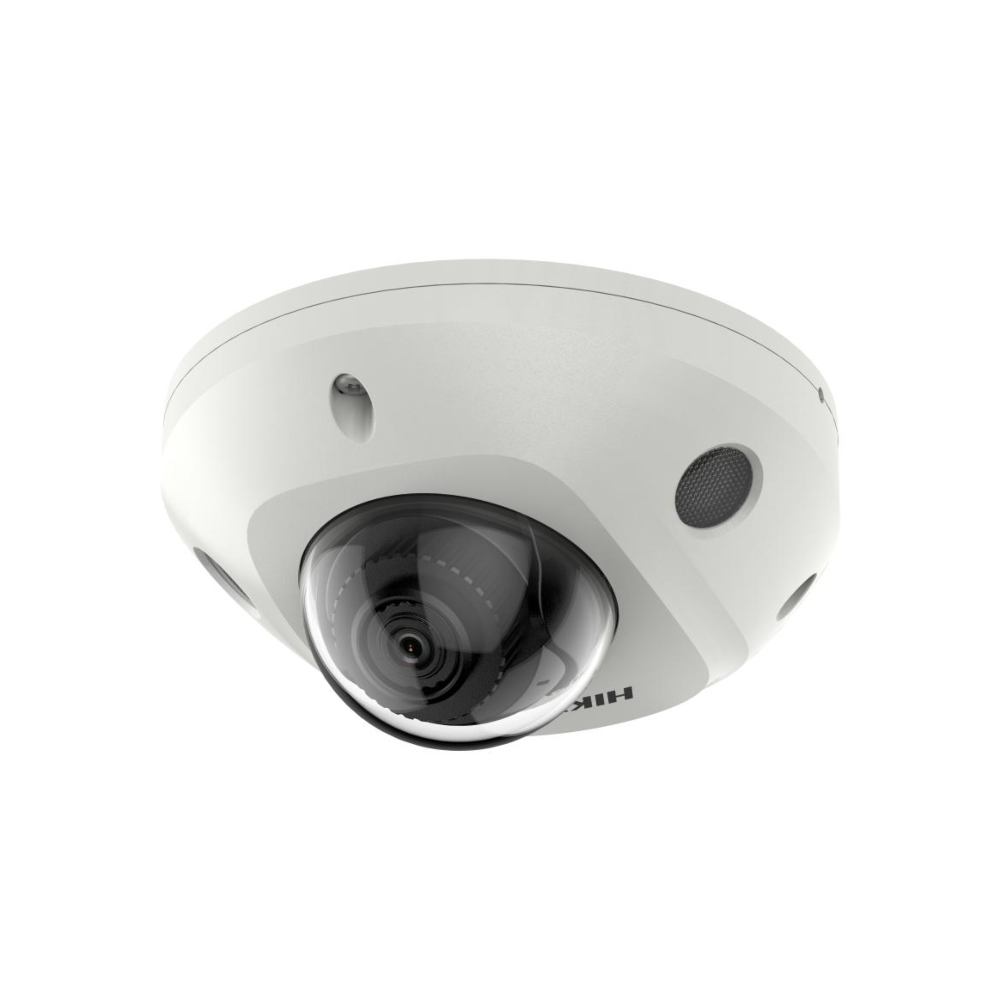

Hikvision DS-2CD2586G2-IS-2.8MM
Hikvision DS-2CD2586G2-IS-2.8MM AcuSense Gen2 H265 4K 8MP PoE IP EXIR (30m) Ultra-Low-Light (0.003 Lux Colour) 120dB True-WDR Weatherproof Vandalproof Mini Dome (Wedge / Hockeypuck) Camera with 2.8mm Fixed Lens and Built-In Audio Mic – 110° Horizontal Field of View
SKU: DS-2CD2586G2-IS
Categories: CCTV / Surveillance, IP Cameras, IP Dome Cameras, IP Surveillance
Tags: 120dB True-WDR, 4K, 8MP, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, Deep Learning, Dome Camera, Face Detection, Fixed Lens, H265, Hikvision, Hockeypuck, Human Detection, IP Camera, Network Camera, PoE, Vandalproof, Vehicle Detection, Weatherproof, Wedge
Hikvision DS-2CD2586G2-IS-2.8MM AcuSense Gen2 H265 4K 8MP PoE IP EXIR (30m) Ultra-Low-Light (0.003 Lux Colour) 120dB True-WDR Weatherproof Vandalproof Mini Dome (Wedge / Hockeypuck) Camera with 2.8mm Fixed Lens and Built-In Audio Mic – 110° Horizontal Field of View
Key Features :-
- 8MP resolution
- Excellent low-light performance with powered by DarkFighter technology
- 120dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- IP67 and IK08 rated
- 1/1.8″ CMOS progressive scan
- Lens: 2.8mm
- Video compression: H.265+, H.265, H.264+, H.264
- Max resolution: 3840 × 2160
- IR range: up to 30m
- Memory slot: supports microSD card, up to 512GB
- Power supply: 12VDC / PoE (802.3af, class 3)
- Dimensions: 110mm x 57.4mm
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- Depth of Field: 2.8 mm: 2.2 m to ∞
DORI
- DORI: 2.8 mm: D: 89 m, O: 35 m, R: 18 m, I: 9 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) – Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
- Built-in Microphone: Yes
- Audio: -IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: -IS: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset Key: Yes
Event
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)); Scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning (-IS), trigger alarm output (-IS)
Deep Learning Function
- Face Capture: Yes
General
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3af, Class 3, max. 7 W
- Material: Base: aluminum, cover: plastic
- Dimension: Ø110 mm × 57.4 mm (Ø 4.3″ × 2.3″)
- Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Weight: Approx. 375 g (0.8 lb.)
- With Package Weight: Approx. 610 g (1.3 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN32: 2015, KN35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013); IK8 (IEC 62262:2002)
