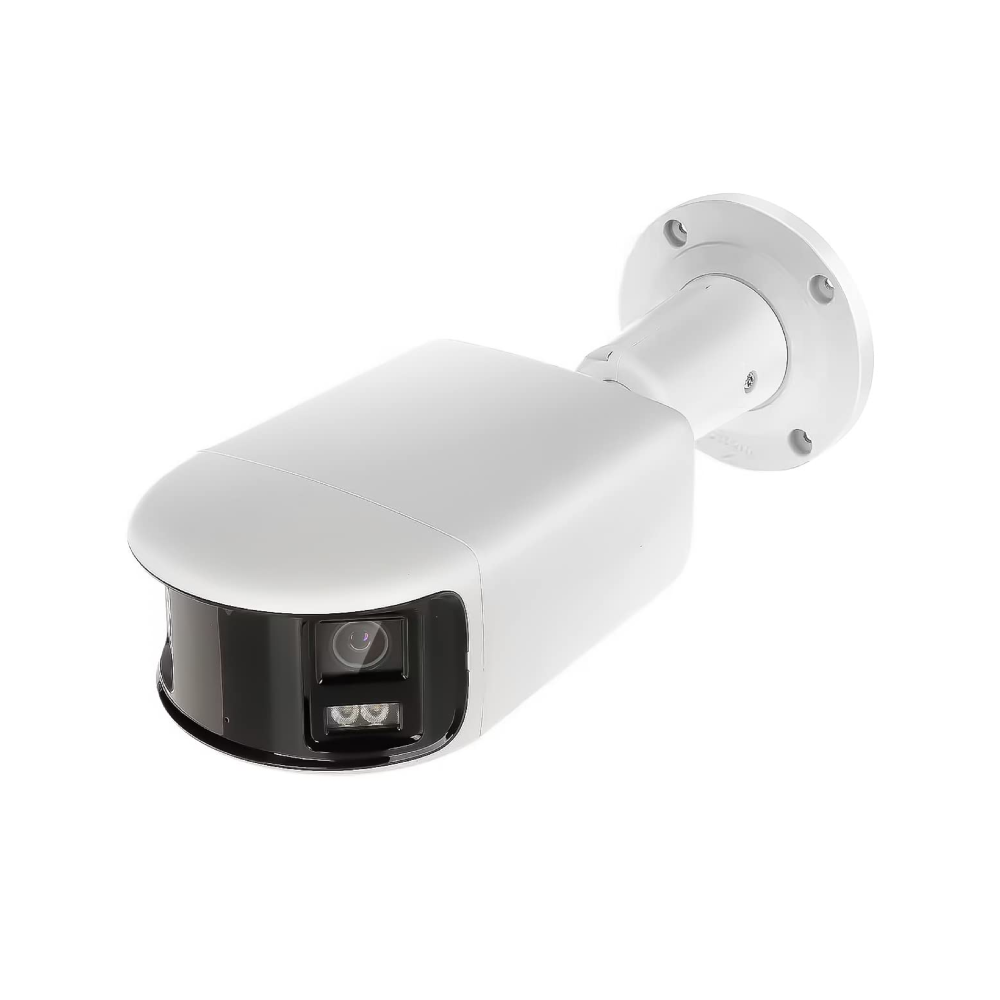

Hikvision DS-2CD2T87G2P-LSU/SL
Hikvision DS-2CD2T87G2P-LSU/SL Pro-series Panoramic Dual-Sensor ColorVu AcuSense Gen 2 Deep-Learning AI (Artificial Intelligence) H265 4K 8MP PoE IP White-Light (40m) 130dB True-WDR Active-Deterrence Weatherproof Bullet Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
SKU: DS-2CD2T87G2P-LSU/SL
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 130dB True-WDR, 180 Degree, 2-Way Audio, 4K Resolution, 8MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, ColorVu, Deep Learning, Dual-Lens Camera, Dual-Sensor Camera, Full Colour, H265, Hikvision, Human Detection, IP Camera, IP67 Rated, Live-Guard, Network Camera, Panoramic, Perimeter Protection, PoE, Siren, Smart Dual Light, Speaker, Strobe, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2CD2T87G2P-LSU/SL Pro-series Panoramic Dual-Sensor ColorVu AcuSense Gen 2 Deep-Learning AI (Artificial Intelligence) H265 4K 8MP PoE IP White-Light (40m) 130dB True-WDR Active-Deterrence Weatherproof Bullet Camera with 180° Ultra-Wide-Angle View- Built-in Audio Mic + Speaker + Strobe + Siren – Alarm In/Out and Audio Line In/Out
Key Features :-
- High quality imaging with 8MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Water and dust resistant (IP67)
Camera
- Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°
Lens
- Lens Type: Fixed focal lens, Dual lens: 4 mm
- Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field: 3.6 m to ∞
DORI
- DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 40m
- Smart Supplement Light: Yes
Video
- Main Stream:-
-
- When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) : 60 Hz: 15 fps (5120 × 1440)
- When WDR is Off: 50 Hz: 20 fps (5120 × 1440): 60 Hz: 20 fps (5120 × 1440)
- Sub-Stream:-
-
- When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272); 60 Hz: 15 fps (1920 × 536, 960 × 272)
- When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272); 60 Hz: 20 fps (1920 × 536, 960 × 272)
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region(s) for main stream
Audio
- Audio Type: Mono sound
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz /16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSocket
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 130dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC,HLC,3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC / TF card, up to 256 GB
- Built-In Microphone: Yes
- Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
- Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
General
- Power: 12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
- Material: Front cover: metal, body: metal, bracket: metal
- Dimension: 118.6 mm × 105.1 mm × 305.4 mm (4.7″ × 4.1″ × 12″)
- Package Dimension: 405 mm × 190 mm × 180 mm (16″ × 7.5″ × 7.1″)
- Weight: Approx. 1420 g (3.1 lb.)
- With Package Weight: Approx. 2228 g (4.9 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages – English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
- Flashing Light: Yes
Approval
- EMC: FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
