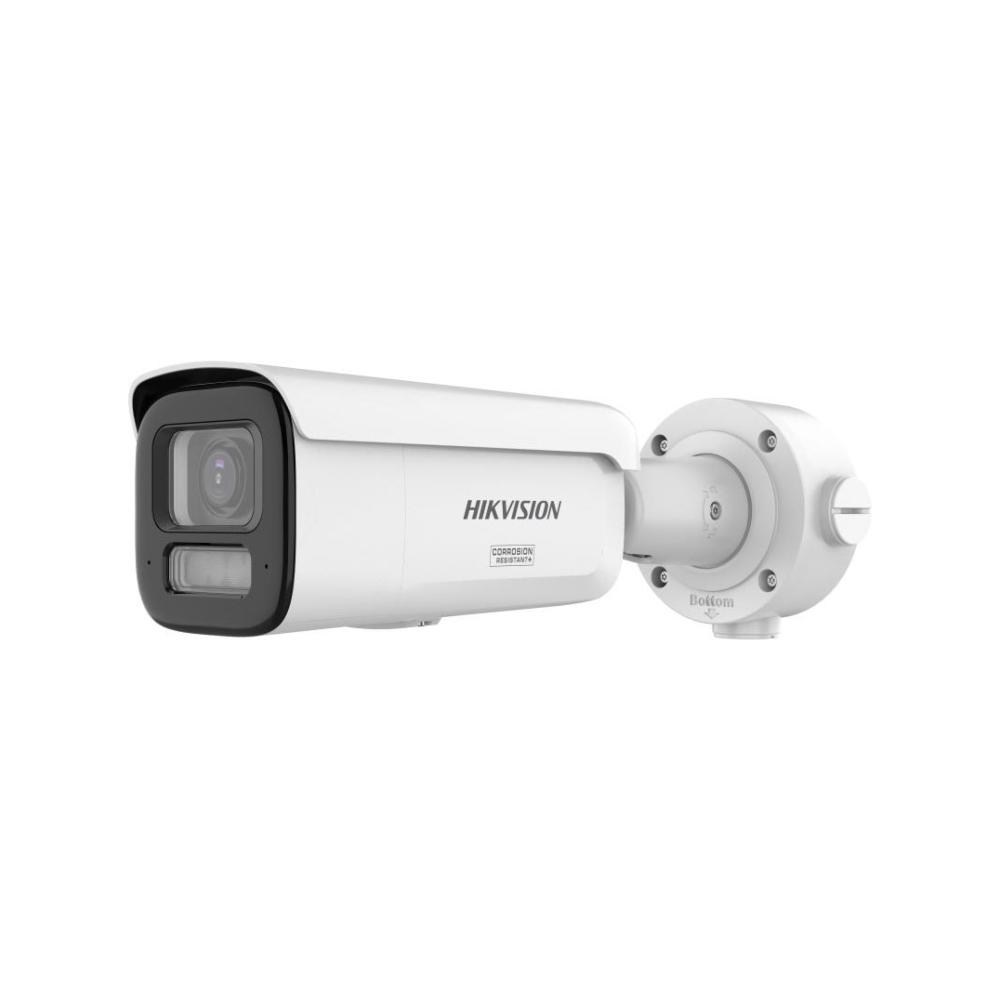

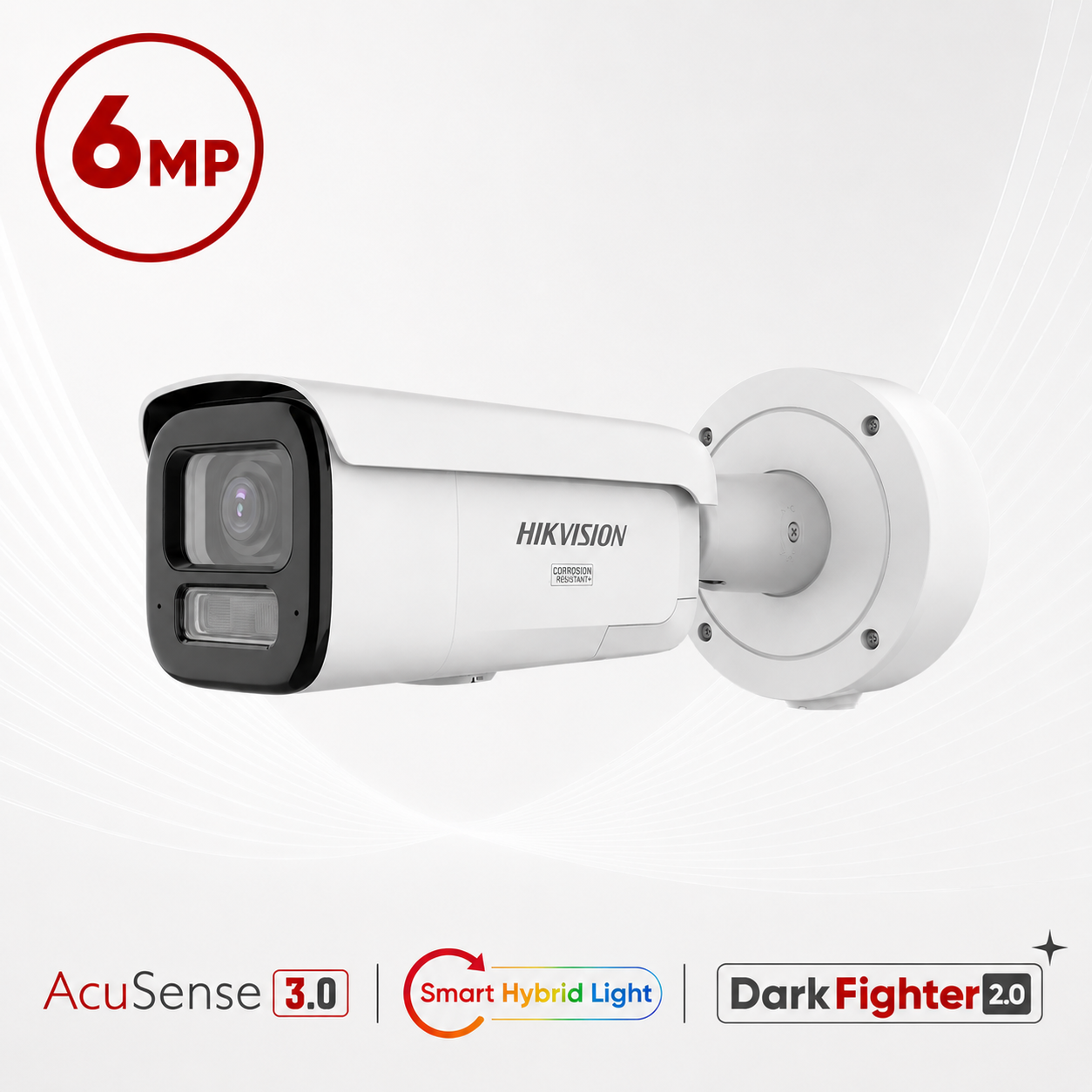

Hikvision DS-2CD3667G3T-LIZSUY

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON); 0 Lux with light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm
• Focal Length & FOV: 2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
• Lens Mount: Integrated
• Iris Type: Auto-iris
• Aperture: Max. F1.2
• Depth of Field: 1 m to ∞

DORI

• DORI:
  • • Wide: D: 74.3 m, O: 29.5 m, R: 14.9 m, I: 7.4 m
    • Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: IR: up to 60m; White Light: up to 60m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

HEOP

• Open Resources: Memory: 40 MB; Smart RAM: 450 MB; eMMC: 2 GB
• Computing Power: 1.5 TOPS
• Open Capability: HEOP 2.0 OpendevSDK
• Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
• Programming Language: C, C++

Video

• Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) – *Third stream is supported under certain settings.
• Fourth Stream: 50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360) – *Fourth stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
• e-PTZ: Support Patrol and Auto Tracking settings

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+; Local service: Chrome 91+, Firefox 88+, Edge 91+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Stabilization: EIS
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
• Audio: Built-in Microphone: Arrayed dual-microphone; 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event: Scene change detection, audio exception detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
• Face Capture: Yes
• People Counting: Yes

General

• Power: 12 VDC ± 25%, 1.08 A, max. 13 W, Two-core terminal block, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 15 W
• Material: Base: Metal, cover: Metal
• Dimension: 334 mm × 112 mm × 112 mm
• Package Dimension: 386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Weight: Approx. 1520 g
• With Package Weight: Approx. 2326 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Flashing Light: Yes, White Light

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021;
• Safety: CB: IEC 62368-1: 2014+A11
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006; NEMA 4X (NEMA 250-2018)
• Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
