Hikvision DS-2CD6W65G1-IVS

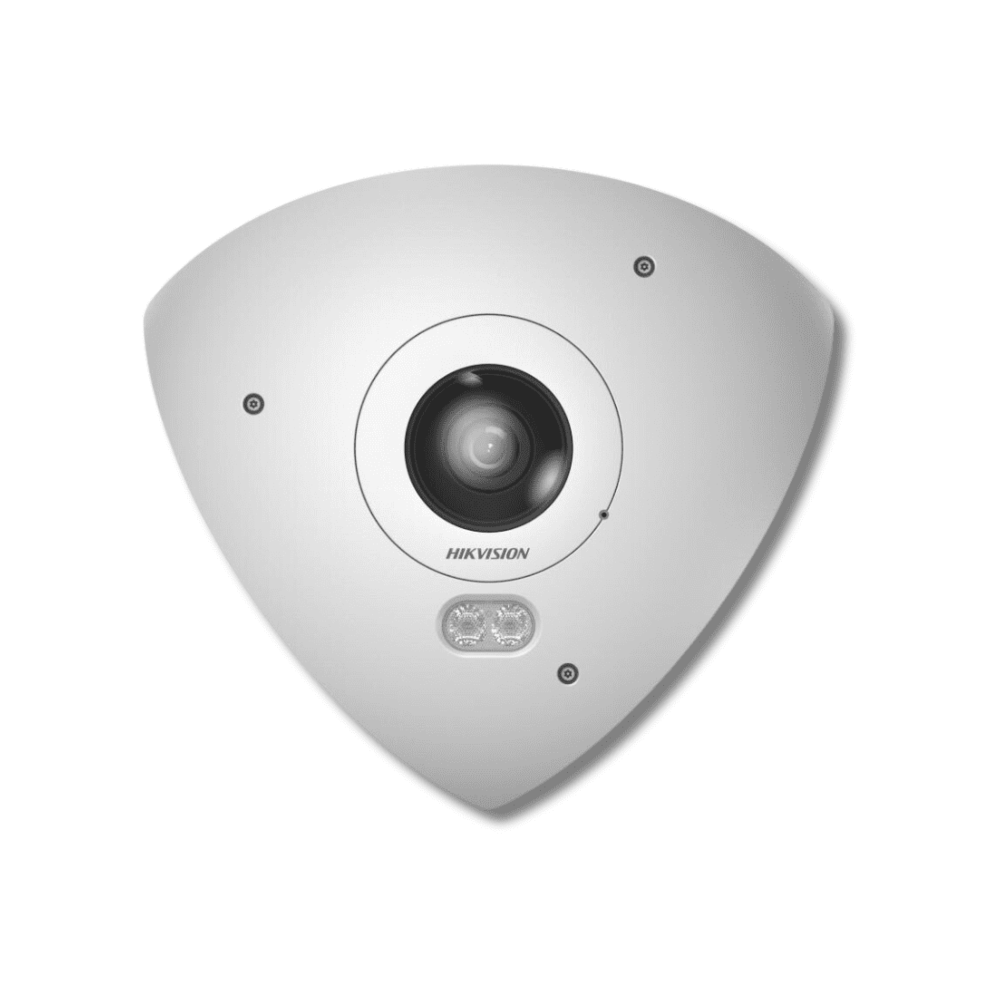

Hikvision DS-2CD6W65G1-IVS Panoramic Series DeepinView H265 6MP PoE IP IR (15m) DWDR Weatherproof Vandalproof 360° Corner-Mount Fisheye Dome Camera with Built-in Mic and Speaker
SKU: DS-2CD6W65G1-IVS
Categories: CCTV / Surveillance, IP 360-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 2-Way Audio, 360 Degree, 6MP, Behavior Analysis, Built-in Mic, Camera, Corner-mount, DeepinView, Dome Camera, Fisheye, H265, Heatmap, Hikvision, IK10 Rated, IP Camera, IP67 Rated, IR, Network Camera, Panoramic, People Counting, PoE, Speaker, Vandalproof, Weatherproof
Hikvision DS-2CD6W65G1-IVS Panoramic Series DeepinView H265 6MP PoE IP IR (15m) DWDR Weatherproof Vandalproof 360° Corner-Mount Fisheye Dome Camera with Built-in Mic and Speaker
Key Features :-
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
- High resolution 6MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Supports controlling lens remotely for physical mask function
- Supports blue indicator light to show the device working status
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Adopts anti-ligature design
Camera
- Image Sensor: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 2560 × 2560
- Min. Illumination: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0.005 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
Lens
- Lens Type: Fixed focal lens, 1.16 mm
- Focal Length & FOV: 1.16 mm, horizontal FOV 180°, vertical FOV 180°
- Iris Type: Fixed
- Aperture: F2.25
- Depth of Field: 0.2 m to ∞
DORI
- DORI: D: 23.2 m; O: 9.2 m; R: 4.6 m; I: 2.3 m
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 15 m
- Supplement Light Number: 2
- IR Wavelength: 940 nm
- Smart Supplement Light: Yes
HEOP
- Open Resources: Memory: 60 MB; Smart RAM: 800 MB; eMMC: 2 GB
- Computing Power: 2 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe, TensorFlow, PyTorch
- Programming Language: C, C++
Video
- Main Stream: 50 Hz: 25 fps/60 Hz: 30 fps:
- Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280
- 180 Panorama View: 2048 × 1536, 1920 × 1440
- 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720
- Panorama View: 2048 × 1536, 1920 × 1440
- 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768
- Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024; camera 02/camera 03/camera 04: 1024 × 768
- 4PTZ Fusion View: 2048 × 1536, 1600 × 1200
- Sub-Stream: 50 Hz: 25 fps/60 Hz: 30 fps:
- Fisheye View: 720 × 720, 480 × 480
- 180 Panorama View: 640 × 480, 320 × 240
- 180 Dual Channel Panorama View: 640 × 480, 320 × 240
- Panorama View: 640 × 360, 320 × 240
- 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Fisheye + 3PTZ View: camera 01: 720 × 720; camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed regions for each stream
Fisheye Display
- Mount Type: Support wall/table/ceiling mounting
- Decoding Mode: Support hardware decoding and software decoding
- Display Mode: 20 display modes in total –
- Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder
-
Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP; Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
- Privacy Mask: 8 programmable polygon privacy masks
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-in Microphone: Yes – 1 built-in microphone
- Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485: 1* RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key: 1 Reset Key
- Indicator: Yes
Event
- Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Deep Learning Function
- People Counting: Counts people entering, exiting and passing by separately (The data is stored in the flash.); Supports real-time uploading and uploading by statistic cycle; Sends email reports on daily, weekly, monthly or annually basis; Supports up to 3 detection regions; Supports for setting the linkage method
- Queue Management: Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: regional people queuing-up, waiting time detection; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis; Supports real-time data uploading and scheduled data uploading; Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold; Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map; A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.; Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis: Detects and analyze flow in an intersection-like scene, and generate reports; Support one intersection of up to 10 ways
General
- Power: 12 VDC ± 20%, 0.75 A, max. 9 W,two-core terminal block; PoE: IEEE 802.3af, Class 3, max. 10 W
- Material: Metal
- Dimension: 213.73 mm × 199.67 mm × 137.57 mm (8.4″ × 7.86″ × 5.42″)
- Package Dimension: 255 mm × 255 mm × 190 mm (8.4″ × 7.86″ × 5.42″)
- Weight: Approx. 610 g (1.34 lb.)
- With Package Weight: Approx. 1904 g (4.20 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding
- Cable Length: 0.31 m (1.02 ft.)
Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
