Hikvision DS-2DE4425IW-DE(T5)

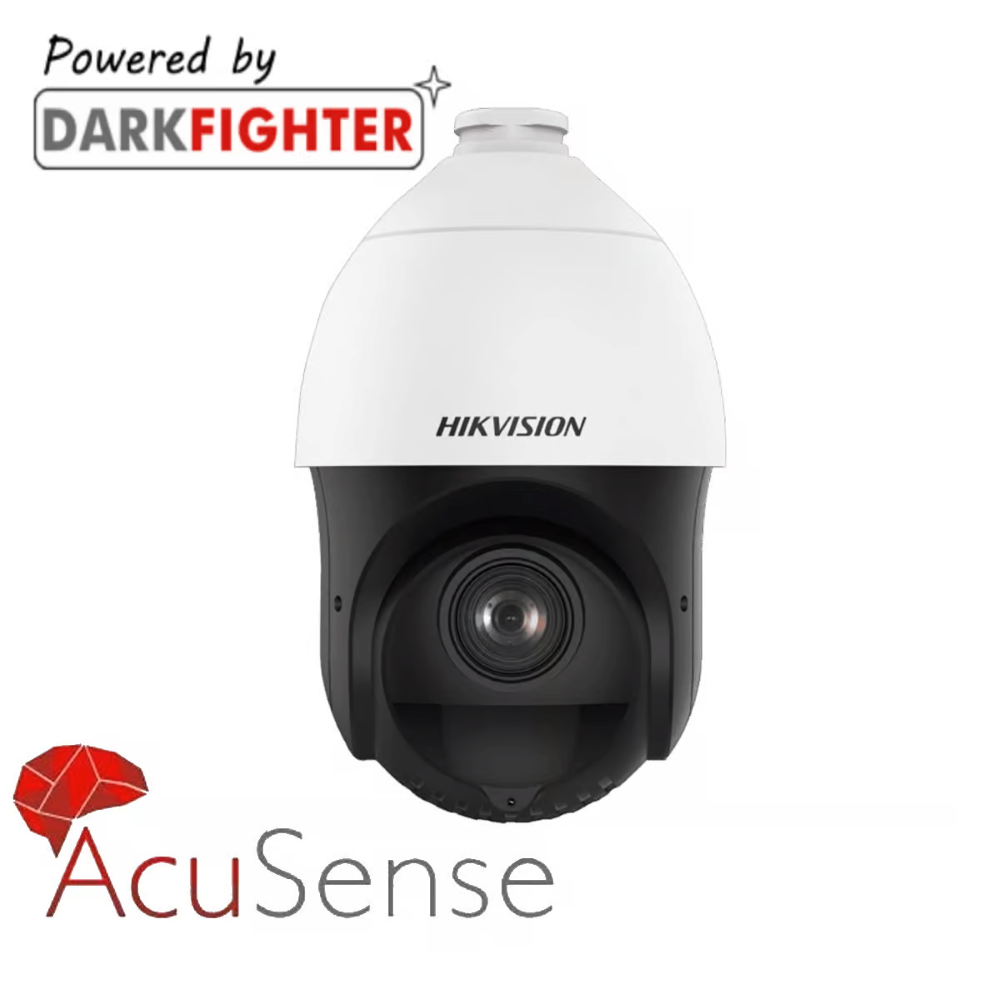

Hikvision DS-2DE4425IW-DE(T5) AcuSense AI H265 4MP PoE+ IP IR (100m) 120dB True-WDR Weatherproof PTZ Camera with 25x Optical Zoom Lens – Includes a DS-1618ZJ Wall-Mount Bracket
SKU: DS-2DE4425IW-DE(T5)
Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 120dB True-WDR, 25x Optical Zoom Lens, 4MP, AcuSense, AI, Artificial Intelligence, Camera, H265, Hikvision, Human Detection, Infrared, IP, IR, Network, PoE, PTZ, Vehicle Detection
Hikvision DS-2DE4425IW-DE(T5) AcuSense AI H265 4MP PoE+ IP IR (100m) 120dB True-WDR Weatherproof PTZ Camera with 25x Optical Zoom Lens – Includes a DS-1618ZJ Wall-Mount Bracket
Key Features :-
- AcuSense – focuses on human and vehicle targets classification based on deep learning
- Support face capture. Up to 5 faces captured at the same time
- 1/2.8″ progressive scan CMOS
- High quality imaging with 4MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 100m IR distance
- Support H.265+ / H.265 video compression
Camera
- Image Sensor: 1/2.8″ progressive scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed: 1 s to 1/30,000 s
- Day & Night: IR cut filter
- Zoom: 25x optical, 16x digital
- Slow Shutter: yes
Lens
- Focal Length: 4.8 mm to 120 mm
- FOV: Horizontal field of view: 55° to 2.4° (wide-tele); Vertical field of view: 33° to 1.4° (wide-tele); Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Focus: Auto, semi-auto, manual
- Aperture: Max. F1.6
- Zoom Speed: Approx. 3.6 s
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: IR Distance: up to 100 m
PTZ
- Movement Range (Pan): 360°
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Pan: Yes
- Presets: 300
- Preset Freezing: yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans
- Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
- Power-off Memory: yes
Video
- Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression: Main stream: H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG; Third stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 kbps to 16384 kbps
- H.264 Type: Baseline Profile / Main Profile / High Profile
- H.265 Type: Main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 8 fixed regions for each stream
Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser: Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: > 52 dB
- Defog: Digital defog
- Image Stabilization: EIS
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional Focus: Yes
- Regional Exposure: Yes
Interface
- Ethernet Interface: 1* RJ45 10M/100M self-adaptive Ethernet port
- On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Alarm: 1 input, 1 output
- Reset: Yes
Event
- Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
- Face Capture: Detects up to 5 faces simultaneously; Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)
- Dimensions: Ø 164.5 mm × 290 mm (Ø 6.48″ × 11.42″)
- Weight: Approx. 2 kg (4.41 lb.)
- Material: ADC12
- Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Demist: Yes
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
