Hikvision DS-2DE5425IWG-4G

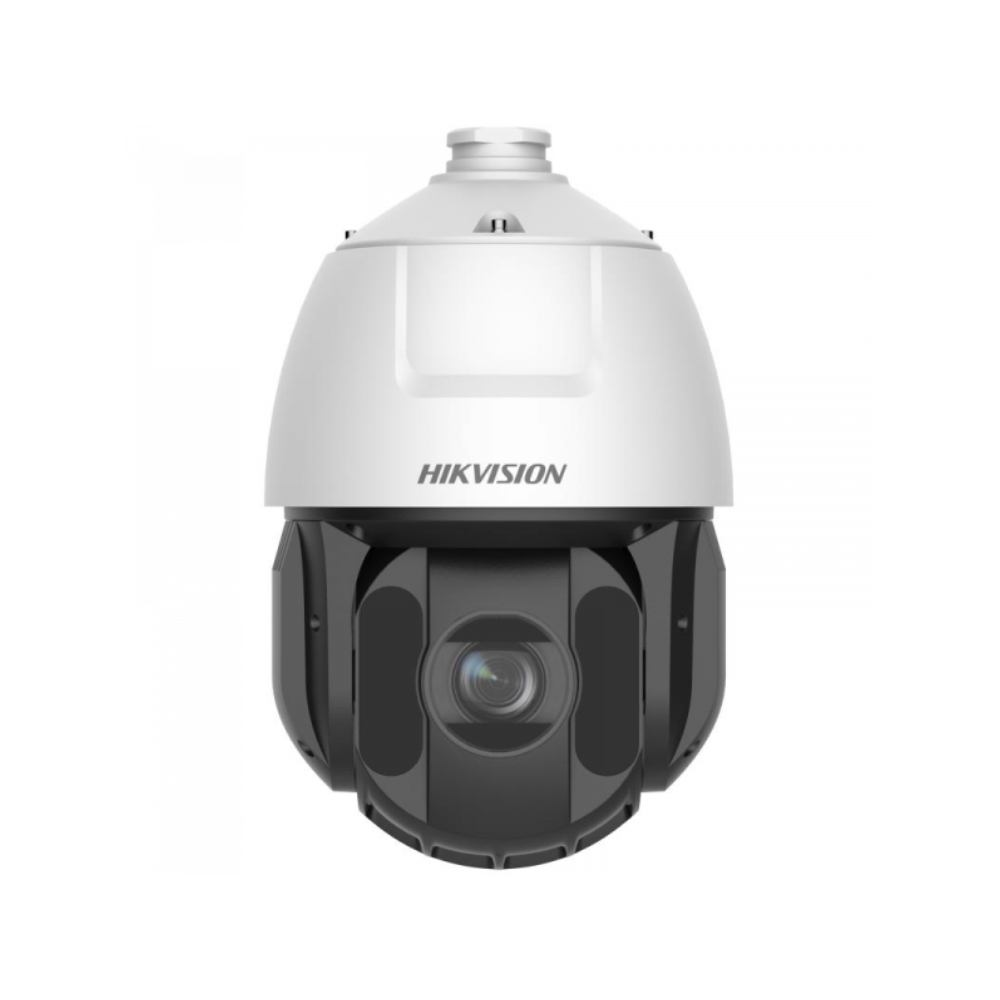

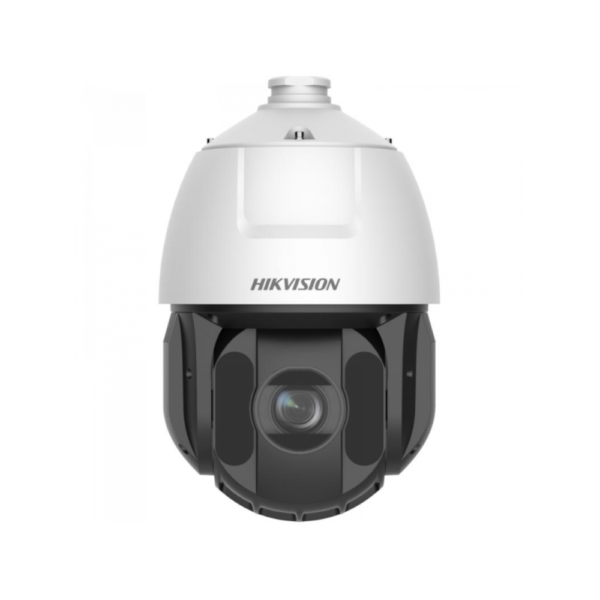

Hikvision DS-2DE5425IWG-4G 4G/LTE 4MP IP IR (150m) 120dB True-WDR 12VDC-Powered Weatherproof PTZ Camera with 25x Optical Zoom Lens
SKU: DS-2DE5425IWG-4G
Categories: CCTV / Surveillance, IP 4G / LTE Cameras, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 120dB True-WDR, 25x Optical Zoom Lens, 4G Camera, 4MP, Camera, H265, Hikvision, IP, IP66 Rated, LTE, Network, PTZ, Solar, Weatherproof
Hikvision DS-2DE5425IWG-4G 4G/LTE 4MP IP IR (150m) 120dB True-WDR 12VDC-Powered Weatherproof PTZ Camera with 25x Optical Zoom Lens
Key Features :-
- Supports performance mode and low power mode. The consumption is 3 W in low power mode, and 0.3 W in sleep mode
- Built-in heating glass for effective defog
- Water and dust resistant (IP66)
- The built-in eMMC storage is up to 256 GB
- Supports Wi-Fi AP for short-distance debugging; The Wi-Fi function of the device only works as AP mode on Channel 11, no other modes and channels are supported
- Supports 12 V 1A reverse power supply
- Expansive night view with up to 150 m IR distance
- Note – Perfect for solar CCTV installations as it has built-in 4G/LTE slot and works off 12VDC power input
Camera
- Image Sensor: 1/2.8″ progressive scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: color: 0.05Lux @ (F1.6，AGC ON) || B/W: 0.01Lux @(F1.6，AGC ON) || 0 Lux with IR
- Shutter Speed: 1 s~1/30,000 s
- Day & Night: IR cut filter
- Zoom: 25 × optical, 16 × digital
- Slow Shutter: yes
- HLC: yes
- 3D DNR: yes
Lens
- Focal Length: 4.8 mm~120 mm
- Focus: semi-auto || manual || auto
- Aperture: F1.6
- Zoom Speed: approx. 3.6s
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: IR distance: up to 150 m
PTZ
- Movement Range (Pan): 360°
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed: pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
- Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Pan: yes
- Presets: 300
- Preset Freezing: yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans
- Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Power-off Memory: yes
Video
- Main Stream: 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720); 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
- Sub-Stream: 50 Hz：25 fps（704 × 576，640 × 480，352 × 288); 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
- Third Stream: 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288); 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
- Video Compression: H.265||H.264||MJPEG
- H.264 Type: Baseline Profile||Main Profile||High Profile
- H.265 Type: Main Profile
- Scalable Video Coding (SVC): yes
- Region of Interest (ROI): fixed region
Audio
- Audio Compression: G.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
- Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz, AAC-LC: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filtering: yes
Network
- Protocols: IPv4 / IPv6 || HTTP || HTTPS || 802.1x || Qos || FTP || SMTP || UPnP || SNMP || DNS || DDNS || NTP || RTSP || RTCP || RTP || TCP/IP || UDP || IGMP || ICMP || DHCP || Bonjour || WebSocket || WebSockets
- API: Open-ended API || ISAPI || Hikvision SDK || Third-party management platform || Hik-Connect || ISUP || Open Network Video Interface
- User/Host: 32
- Security: Authenticated username and password || MAC address binding || HTTPS encryption || 802.1X authenticated access || IP address filter
- Network Storage: NAS (NFS, SMB/ CIFS)
- Client: iVMS-4200
- Web Browser: Chrome 57+、Firefox 52+、Safari 12+||IE10-11
Wireless (Wi-Fi)
- Wireless Range: Up to 20 m (The performance varies based on actual environment)
Wireless (Mobile Communication)
- Frequency: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
- Standard: LTE FDD: Band 1, 3, 5, 7, 8, 20, 28; LTE TDD: Band 38 , 40, 41; WCDMA/HSPA+: Band 1, 5, 8; GSM/GPRS/EDGE: 850/900/1800MH
- Image Parameters Switch: yes
- Image Settings: saturation||brightness||contrast||sharpness
- Day/Night Switch: day||night||auto||scheduled-switch
- Wide Dynamic Range (WDR): yes
- SNR:＞52dB
- Defog: yes
- Image Enhancement: BLC
- Privacy Mask: up to 24 masks||mask color configurable
- Regional Focus: yes
- Regional Exposure: yes
Interface
- Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
- Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm: 2 alarm inputs
- Reset: yes
- Power Output: 12 VDC, max. 1000 mA
Event
- Basic Event: Motion detection, Video tampering, Alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Face detection, Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and PTZ actions (such as preset, patrol scan, pattern scan)
General
- Power: 12 VDC
- Dimension: Ø208 mm × 344.8 mm
- Weight: Approx. 3.5 kg
- Material: Metal
- Operating Condition: -30℃ to 65℃ (-22°F to 149°F)
- Demist: yes
- Power Consumption and Current: Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);
Approval
- Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
