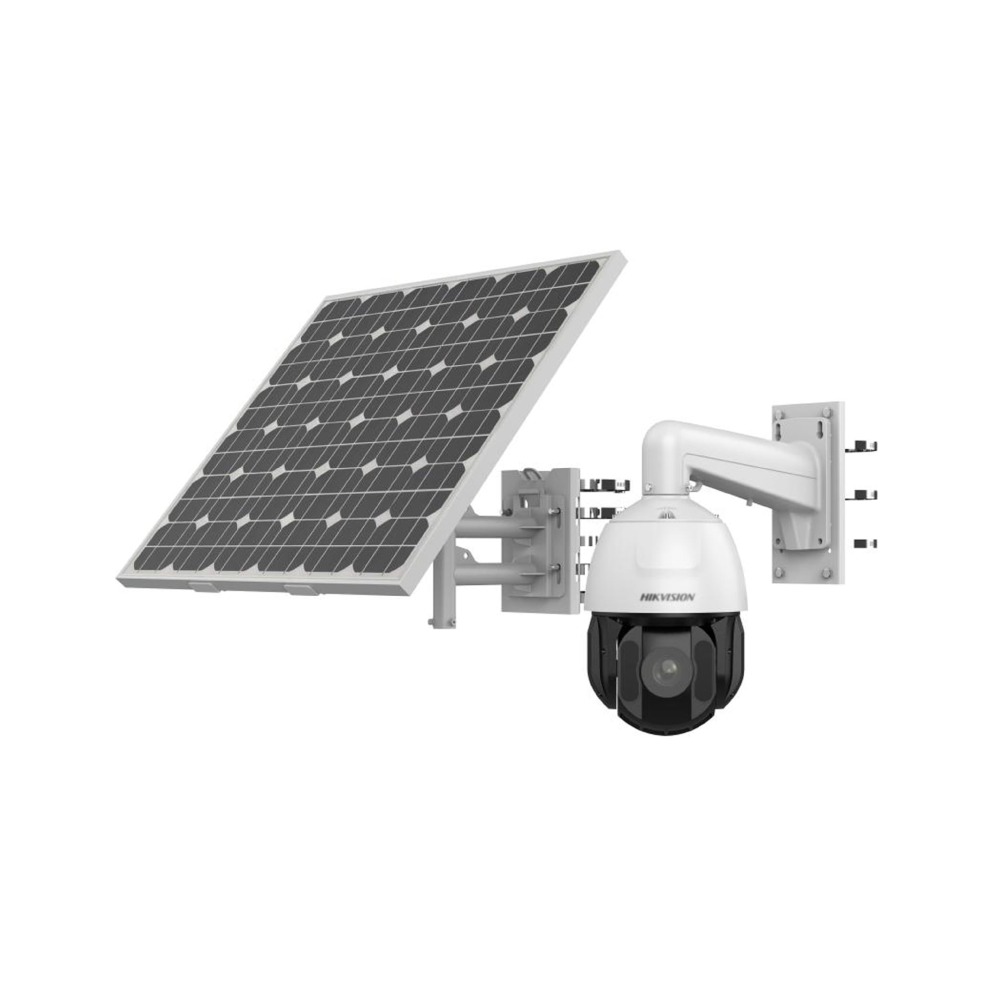

Hikvision DS-2DE5425IWG-K/4G

Camera

• Image Sensor: 1/2.8″ progressive scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: color: 0.05Lux @ (F1.6，AGC ON) || B/W: 0.01Lux @(F1.6，AGC ON) || 0 Lux with IR
• Shutter Speed: 1 s~1/30,000 s
• Day & Night: IR cut filter
• Zoom: 25 × optical, 16 × digital
• Slow Shutter: yes
• HLC: yes
• 3D DNR: yes

Lens

• Focal Length: 4.8 mm~120 mm
• Focus: semi-auto || manual || auto
• Aperture: F1.6
• Zoom Speed: approx.3.6s

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR distance: up to 150 m

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: yes
• Presets: 300
• Preset Freezing: yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-off Memory: yes

Video

• Main Stream: 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720); 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
• Sub-Stream: 50 Hz：25 fps（704 × 576，640 × 480，352 × 288); 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
• Third Stream: 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288); 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
• Video Compression: H.265||H.264||MJPEG
• H.264 Type: Baseline Profile||Main Profile||High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): yes
• Region of Interest (ROI): fixed region

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
• Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filtering: yes

Network

• Protocols: IPv4 / IPv6 || HTTP || HTTPS || 802.1x || Qos || FTP || SMTP || UPnP || SNMP || DNS || DDNS || NTP || RTSP || RTCP || RTP || TCP/IP || UDP || IGMP || ICMP || DHCP || Bonjour || WebSocket || WebSockets
• API: Open-ended API || ISAPI || Hikvision SDK || Third-party management platform || Hik-Connect || ISUP || Open Network Video Interface
• User/Host: 32
• Security: Authenticated username and password || MAC address binding || HTTPS encryption || 802.1X authenticated access || IP address filter
• Network Storage: NAS (NFS, SMB/ CIFS)
• Client: iVMS-4200
• Web Browser: Chrome 57+、Firefox 52+、Safari 12+||IE10-11

Wireless (Wi-Fi)

• Wireless Range: Up to 20 m (The performance varies based on actual environment)

Wireless (Mobile Communication)

• Frequency: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
• Standard: LTE FDD: Band 1, 3, 5, 7, 8, 20, 28; LTE TDD: Band 38 , 40, 41; WCDMA/HSPA+: Band 1, 5, 8; GSM/GPRS/EDGE: 850/900/1800MH


• Image Parameters Switch: yes
• Image Settings: saturation||brightness||contrast||sharpness
• Day/Night Switch: day||night||auto||scheduled-switch
• Wide Dynamic Range (WDR): yes
• SNR:＞52dB
• Defog: yes
• Image Enhancement: BLC
• Privacy Mask: up to 24 masks||mask color configurable
• Regional Focus: yes
• Regional Exposure: yes

Interface

• Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
• Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm: 2 alarm inputs
• Reset: yes
• Power Output: 12 VDC, max. 1000 mA

Event

• Basic Event: Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection, Face detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email,trigger alarm output, and PTZ actions (such as preset, patrol scan, pattern scan)

General

• Power: 12 VDC
• Dimension: Ø208 mm × 344.8 mm
• Weight: Approx. 29.9 kg (65.9 lb.); With Package Weight:Approx. 35.3 kg (77.8 lb.)

• Material: Metal

• Operating Condition: -30℃ to 65℃ (-22°F to 149°F)

• Demist: yes
• Power Consumption and Current: Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

Battery

• Battery Type: Lithium
• Battery Voltage: 10.8 V
• Capacity: 360 WH (90 WH for each battery)
• Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Cycle Lifetime: Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
• Battery Life: More than 500 cycles
• Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

• Protection: IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
