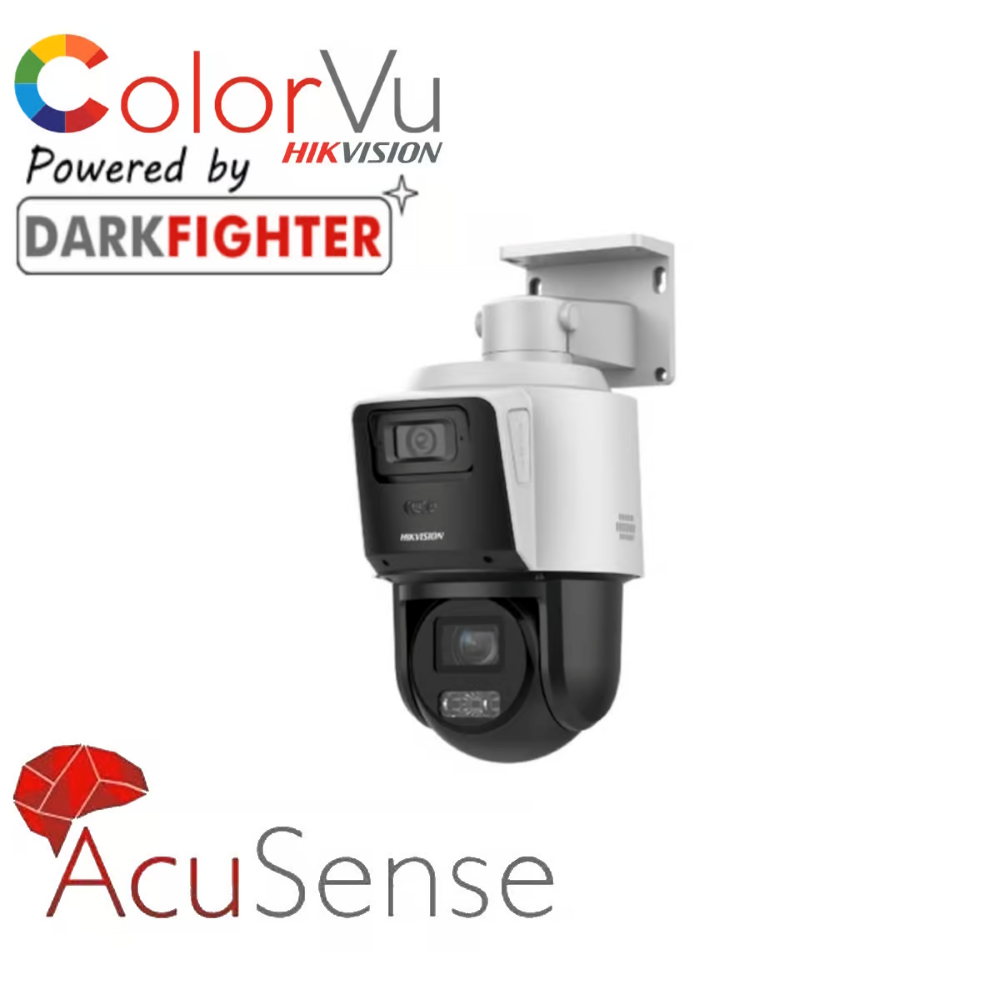

Hikvision DS-2SE3C404MWG-E/14 TandemVu H265 PoE IP Dual-Channel (1 * 4MP Overview Fixed Channel + 1 * 4MP 4x Optical Zoom PTZ Channel) Smart-Dual-Light (40m IR for PTZ + 30m IR & 30m White-Light For Fixed Channel) Weatherproof Smart-Linkage Tracking PTZ (Pan Tilt Zoom) Camera - ColorVu + AcuSense Technology

CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance

Hikvision DS-2SE3C404MWG-E/14

Name: Hikvision DS-2SE3C404MWG-E/14
SKU: DS-2SE3C404MWG-E/14

Hikvision DS-2SE3C404MWG-E/14 TandemVu H265 PoE IP Dual-Channel (1 * 4MP Overview Fixed Channel + 1 * 4MP 4x Optical Zoom PTZ Channel) Smart-Dual-Light (40m IR for PTZ + 30m IR & 30m White-Light For Fixed Channel) Weatherproof Smart-Linkage Tracking PTZ (Pan Tilt Zoom) Camera – ColorVu + AcuSense Technology

SKU: DS-2SE3C404MWG-E/14 Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance Tags: 120dB True-WDR, 2-Way Audio, 4MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, ColorVu, Deep Learning, Dual-Channel, Fixed Lens, H265, Hikvision, Human Detection, IP Camera, Network Camera, Perimeter Protection, PTZ, PTZ Camera, Smart Dual Light, Smart Linkage Tracking, TandemVu, Vehicle Detection, Weatherproof, White Light LED

Key Features :-

Captures a large area and great details at the same time
High quality imaging with 4MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 4× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Supports 12VDC & PoE+
Support Human and Vehicle Detection
Compact Size: Only 1.4kg, all-in-one bracket suitable for ceiling mount or wall mount.
Smart Linkage Tracking: Focus on human target and track when the bullet camera detects a target
Built-in Microphone and Speaker: Support two way audio, or audible warning linkage with Smart VCA events.
Note:- This cameras takes up 2 * channels on the NVR/ recording platform

Hikvision Product-Link

Hikvision TandemVu PTZ Brochure

Camera

Image Sensor: [Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Min. Illumination: [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed: 1 s to 1/30,000 s
Slow Shutter: yes
Day & Night: ICR
Zoom: [PTZ channel] 4 × optical, 16 × digital
Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

Focus: auto, manual, semi-auto
Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
Zoom Speed: [PTZ channel]: approx. 3.3 s
FOV: [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
Aperture: [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

Illuminator

Supplement Light Type: [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
Smart Supplement Light: Yes
Supplement Light Range: [PTZ channel]: IR Distance: up to 40m; [Bullet channel]: IR Distance: up to 30m; White Light Distance: 30m

PTZ

Movement Range (Pan): 0° to 350°
Movement Range (Tilt): [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
Pan Speed: pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
Tilt Speed: tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
Proportional Pan: yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Power-off Memory: yes
Park Action: preset, patrol scan
3D Positioning: yes
PTZ Status Display: yes
Preset Freezing: yes
Scheduled Task: dome reboot, preset, patrol scan, dome adjust, aux output

Video

Region of Interest (ROI): 1 fixed regions for main stream
Main Stream:
- - [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  - [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream:
- - [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
  - [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
- - [Bullet channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360); 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
  - [PTZ channel]: 50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360); 60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)
Video Compression: H.265, H.264, MJPEG
Video Bit Rate: 32 kbps to 16384 kbps
H.264 Type: main profile, baseline profile, high profile
H.265 Type: main profile
Scalable Video Coding (SVC): yes

Audio

Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
Audio Sampling Rate: MP2L2: 16 kHz, AAC-LC: 16 kHz, PCM: 8 kHz, 16 kHz, MP3: 8 kHz, 16 kHz
Environment Noise Filtering: yes

Network

API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Network Storage: NAS (NFS, SMB/ CIFS), ANR, ANR
Protocols: TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4/IPv6, DDNS, ICMP, UPnP
Simultaneous Live View: 20
User/Host: 32
Security: 802.1X authenticated access, MAC address binding, Authenticated username and password, IP address filter, HTTPS encryption
Client: iVMS-4200, Hik-Connect
Web Browser: IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+


Image Settings: sharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Defog: Digital defog
Day/Night Switch: day, night, auto, scheduled-switch
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
Regional Focus: [Bullet channel] No, [PTZ channel] Yes
Regional Exposure: [Bullet channel] No, [PTZ channel] Yes
Image Parameters Switch: Yes

Interface

Built-in Microphone: 1 built-in microphone
Built-in Speaker: 1 built-in speaker
Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
Reset: yes

Event

Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording; [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General

General Function: mirror, watermark, IP address filter, password protection
Power: 12 VDC, max. 13.5 W, PoE+
Operating Condition: -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Demist: Demist by heating the glass
Material: PC
Dimension: 311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
Weight: Approx. 1.37 kg (3.02 lb.)
